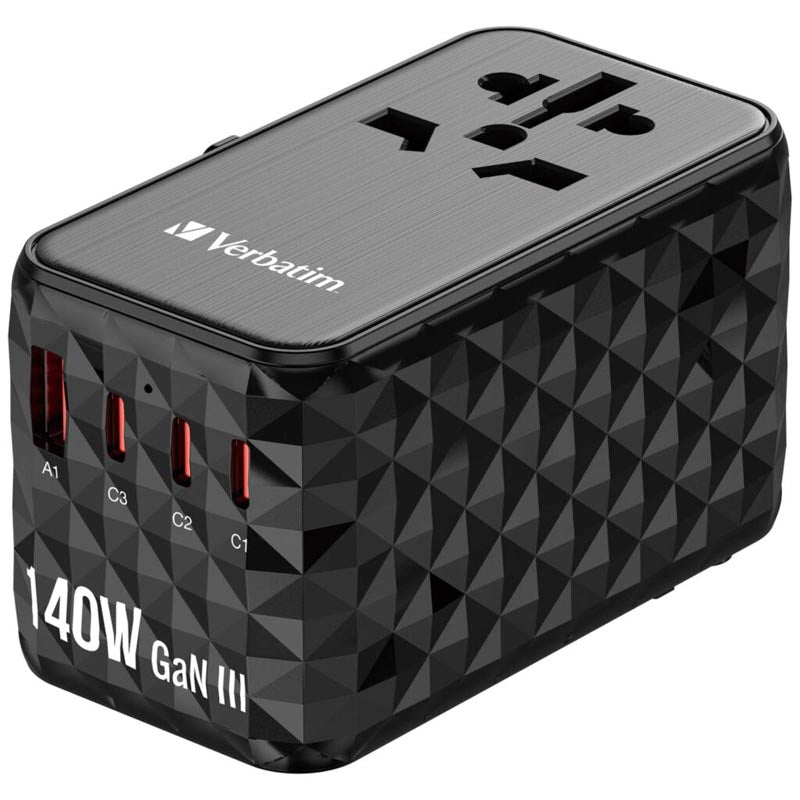

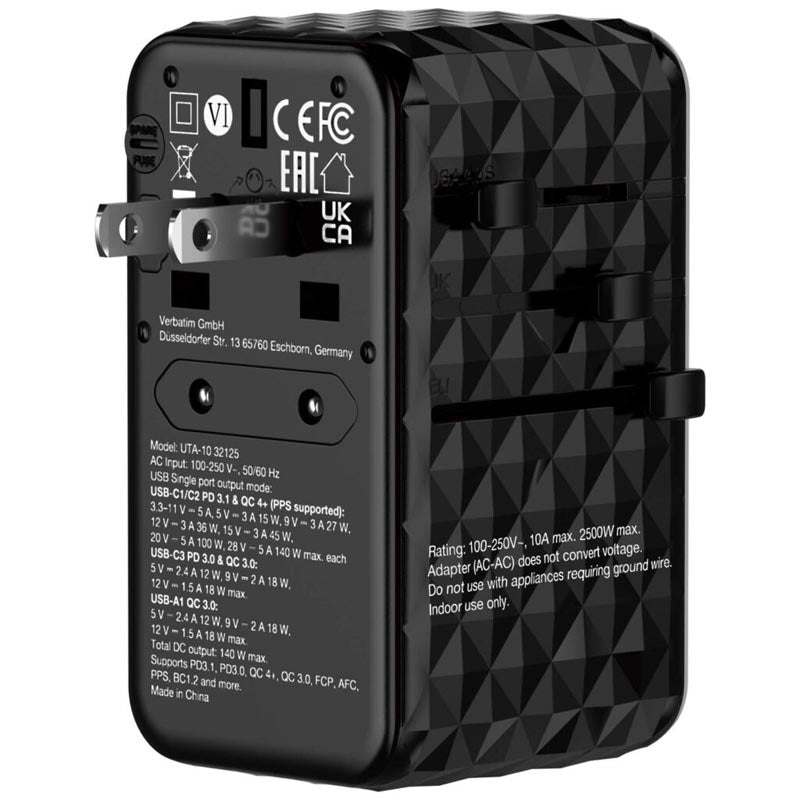

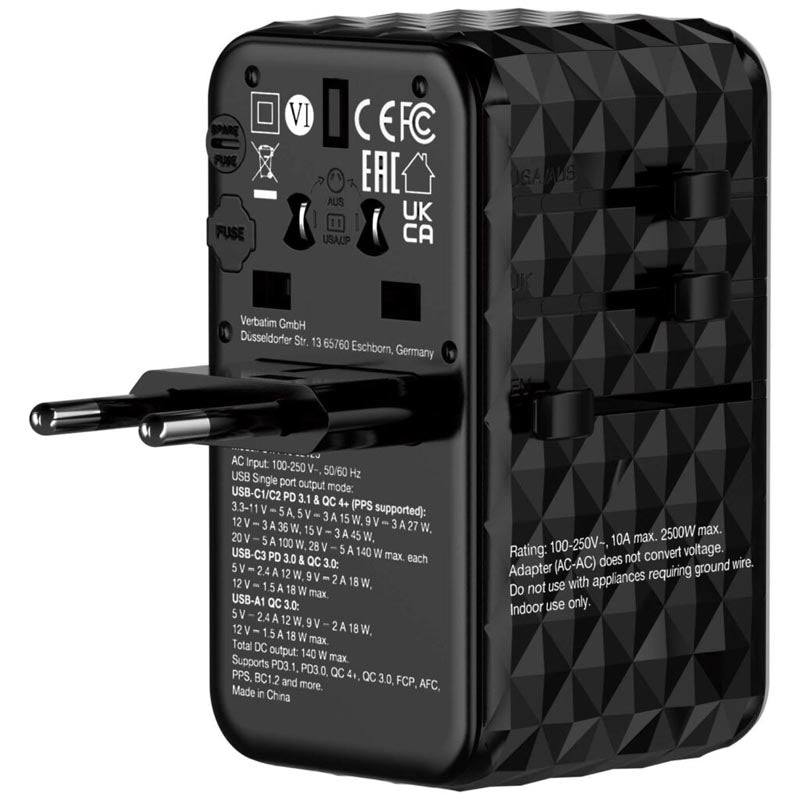

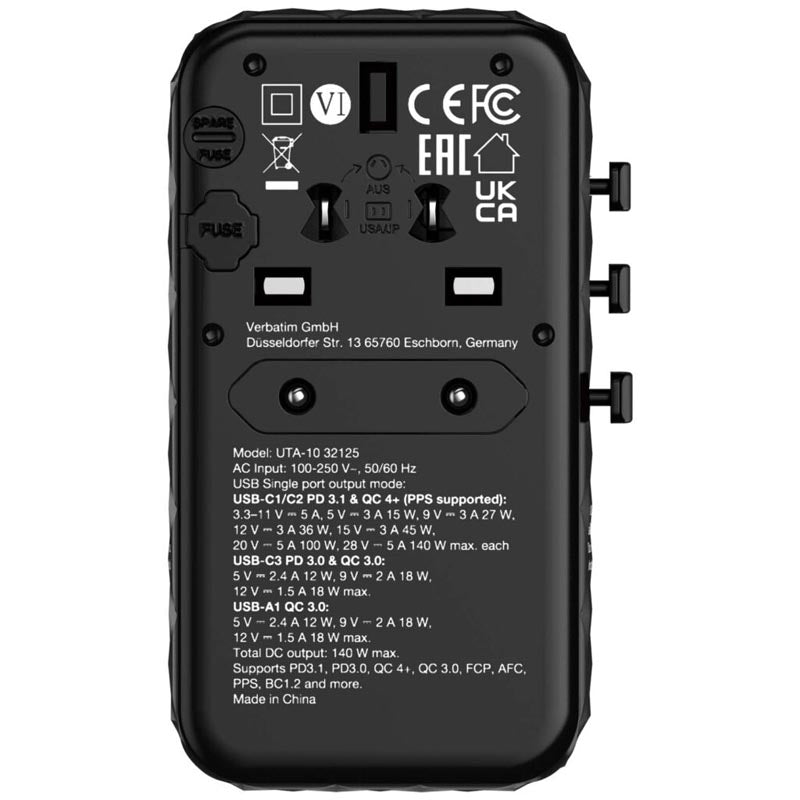

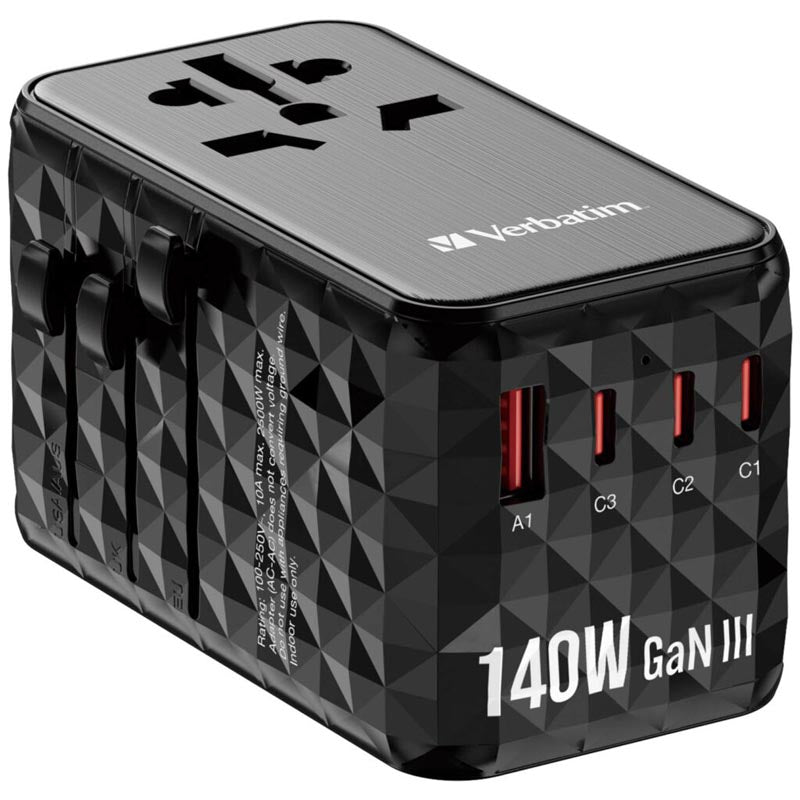

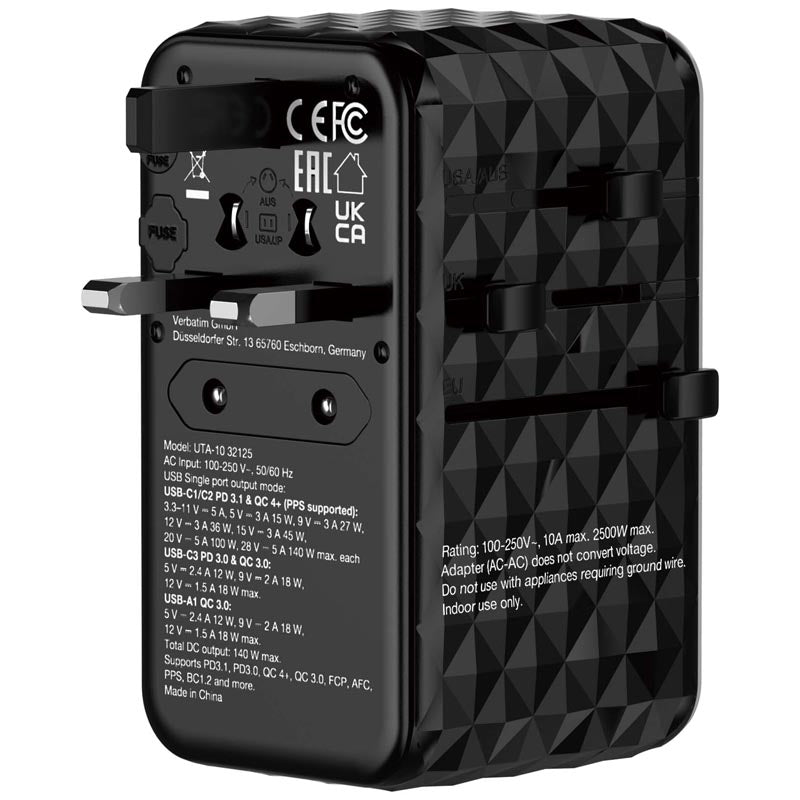

Equipped with the latest GaN III technology, supports charging of 5 devices simultaneously
2 x USB-C PD 3.1 (PPS support) & QC 4+ output, up to 140W each
1 x USB-C PD 3.0 output, up to 18W
1 x USB-A QC 3.0 output, up to 18W
1x full voltage of AC universal socket
With safety shutter function & LED indicator
Certified 10A fuse (BS1362 compliant) and spare fuse
Compact design and includes travel pouch
AC Input: 100V-250V, 50/60Hz
Rating: 100-250V~ 10A max., 2500W max.
Single Port Output mode:
USB-C1/C2 PD 3.1 & QC 4+ (PPS supported) – 3.3-11V⎓5A，5V⎓3A，9V⎓3A，12V⎓3A，15V⎓3A，20V⎓5A，28V⎓5A (140W Max.) each
USB-C3 PD 3.0 – 5V⎓2.4A，9V⎓2A，12V⎓1.5A (18W Max.)
USB-A1 QC 3.0 – 5V⎓2.4A，9V⎓2A，12V⎓1.5A (18W Max.)
2 Ports Combined output mode:
USB-C1+C2 Output mode:
USB-C1 : 5V⎓3A，9V⎓3A，12V⎓3A，15V⎓3A，20V⎓5A (100W Max.)
USB-C2 : 5V⎓3A，9V⎓3A，12V⎓2.91A，15V⎓2.33A，20V⎓1.75A (35W Max.)
USB-C1/C2+C3 Output mode:
USB-C1/C2: 5V⎓3A，9V⎓3A，12V⎓3A，15V⎓3A，20V⎓5A (100W Max.)
USB-C3: 5V⎓2.4A，9V⎓2A，12V⎓1.5A (18W Max.)
USB-C1/C2+A1 Output mode:
USB-C1/C2: 5V⎓3A，9V⎓3A，12V⎓3A，15V⎓3A，20V⎓5A (100W Max.)
USB-A1: 5V⎓2.4A，9V⎓2A，12V⎓1.5A (18W Max.)
USB-C3+A1 Output mode:
USB-C3+A1: 5V⎓2.4A (12W Max.)
3 Ports Combined output mode:
USB-C1+C2+A1 Output mode:
USB-C1: 5V⎓3A，9V⎓3A，12V⎓3A，15V⎓3A，20V⎓3.25A (65W Max.)
USB-C2: 5V⎓3A，9V⎓3A，12V⎓2.91A，15V⎓2.33A (35W Max.)
USB-A1: 5V⎓2.4A，9V⎓2A，12V⎓1.5A (18W Max.)
USB-C1/C2+C3+A1 Output mode:
USB-C1/C2: 5V⎓3A，9V⎓3A，12V⎓3A，15V⎓3A，20V⎓5A (100W Max.)
USB-C3+A1: 5V⎓2.4A (12W Max.)
4 Ports Combined output mode:
USB-C1+C2+C3+A1 Output mode:
USB-C1: 5V⎓3A，9V⎓3A，12V⎓3A，15V⎓3A，20V⎓3.25A (65W Max.)
USB-C2: 5V⎓3A，9V⎓3A，12V⎓2.91A，15V⎓2.33A (35W Max.)
USB-C3+A1: 5V⎓2.4A (12W Max.)
Total DC Output: 140W max.
Operating Temperature: 0 – 25°C
Supports PD3.1，PD3.0，QC4+，QC3.0，FCP，SCP，AFC，PPS，BC1-2 and more
Fuse: 10A BS1362 compliant
Safety shutter for child protection (can only be opened with force of more than 75N (7.5Kg) per hole)
Dimensions (W x H x D): 93.1mm x 53.4mm x 55.3mm
Product Weight: 264g
Warranty: 2-year limited warranty
Travel Adapter
Quick start guide
Travel pouch
