Equipped with the latest GaN III technology, supports charging of 6 devices simultaneously
Supports PD 3.0 (PPS support) & QC4+ output, up to 70W
3 x USB-C and 2 x USB-A ports
1x full voltage of AC universal socket
With safety shutter function & status LED indicator
Certified 10A fuse (BS1362 compliant) and spare fuse
Compact design and includes travel pouch
AC Input: 100V-250V, 50/60Hz
Rating: 100-250V~ 10A max., 2500W max.
Single Port Output mode:
USB-C1 PD 3.0 & QC 4+ (PPS supported): 3.3-11 V ⎓ 5 A, 5 V ⎓ 2.4 A, 9 V ⎓ 3 A, 12 V ⎓ 3 A, 15 V ⎓ 3 A, 20 V ⎓ 3.25 A, 20.6 V ⎓ 3.4 A (70W max.)
USB-C2/C3: 5 V ⎓ 3 A (15W max.)
USB-A1/A2: 5 V ⎓ 2.4 A (12W max.) each
2 Ports Combined output mode:
USB-C1+C2/C3 Output mode:
USB-C1: 5 V ⎓ 2.4 A, 9 V ⎓ 3 A, 12 V ⎓ 3 A, 15 V ⎓ 3 A, 20 V ⎓ 2.25 A (45W max.)
USB-C2/C3: 5 V ⎓ 3 A (15W max.)
USB-C1+A1/A2 Output mode:
USB-C1: 5 V ⎓ 2.4 A, 9 V ⎓ 3 A, 12 V ⎓ 3 A, 15 V ⎓ 3 A, 15 V ⎓ 3 A, 20 V ⎓ 2.25 A (45W max.)
USB-A1/A2: 5 V ⎓ 2.4 A (12W max.)
USB-C2/C3+A1/A2 Output mode:
USB-C2/C3+USB-A1/A2: 5 V ⎓ 3 A (15W max.)
3 Ports Combined output mode:
USB-C1+C2/C3+A1/A2 Output mode:
USB-C1: 5 V ⎓ 2.4 A, 9 V ⎓ 3 A, 12 V ⎓ 3 A, 15 V ⎓ 3 A, 20 V ⎓ 2.25 A (45W max.)
USB-C2/C3+USB-A1/A2: 5 V ⎓ 3 A (15W max.)
USB-C2+C3+A1/A2 Output mode:
USB-C2+C3+A1/A2: 5 V ⎓ 3 A (15W max.)
USB-C1+A1+A2 Output mode:
USB-C1: 5 V ⎓ 2.4 A, 9 V ⎓ 3 A, 12 V ⎓ 3 A, 15 V ⎓ 3 A, 20 V ⎓ 2.25 A (45W max.)
USB-A1+USB-A2: 5 V ⎓ 2.4 A (12W max.)
USB-C2/C3+A1+A2 Output mode:
USB-C2/C3+A1+A2: 5 V ⎓ 3 A (15W max.)
4 Ports Combined output mode:
USB-C1+C2+C3+A1/A2 Output mode:
USB-C1: 5 V ⎓ 2.4 A, 9 V ⎓ 3 A, 12 V ⎓ 3 A, 15 V ⎓ 3 A, 20 V ⎓ 2.25 A (45W max.)
USB-C2+C3+A1/A2: 5 V ⎓ 3 A (15W max.)
USB-C1+C3+A1+A2 Output mode:
USB-C1: 5 V ⎓ 2.4 A, 9 V ⎓ 3 A, 12 V ⎓ 3 A, 15 V ⎓ 3 A (45 W max.)
USB-C3+A1+A2: 5 V ⎓ 3 A (15W max.)
USB-C2+C3+A1+A2 Output mode:
USB-C2+C3+A1+A2: 5 V ⎓ 3 A (15W max.)
5 Ports Combined output mode:
USB-C1+C2+C3+A1+A2 Output mode:
USB-C1: 5 V ⎓ 2.4 A, 9 V ⎓ 3 A, 12 V ⎓ 3 A, 15 V ⎓ 3 A, 20 V ⎓ 2.25 A (45W max.)
USB-C2+C3+A1/A2: 5 V ⎓ 3 A (15W max.)
Total DC Output: 70W max.
Operating Temperature: 0 – 25°C
Supports PD3.0, QC4+, FCP, SCP, AFC, PPS, BC1-2 and more.
Fuse: 10 A BS1362 compliant
Safety shutter for child protection (can only be opened with force of more than 75N (7.5Kg) per hole)
Dimensions (W x H x D): 76.8mm x 53.4mm x 55mm
Weight: 186g
Warranty: 2-year limited warranty

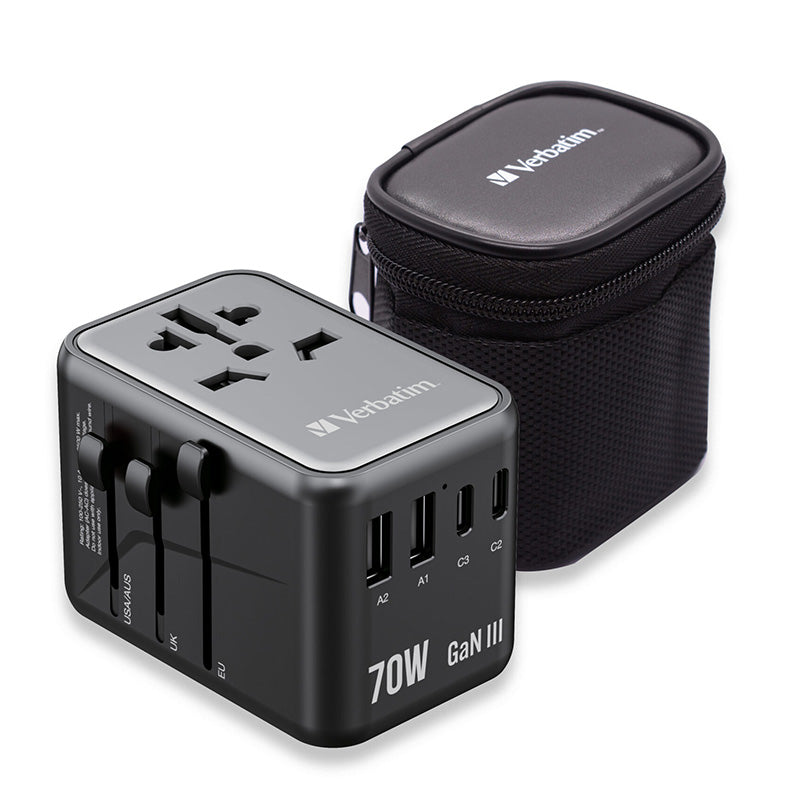

Travel Adapter
Quick start guide
Travel pouch
