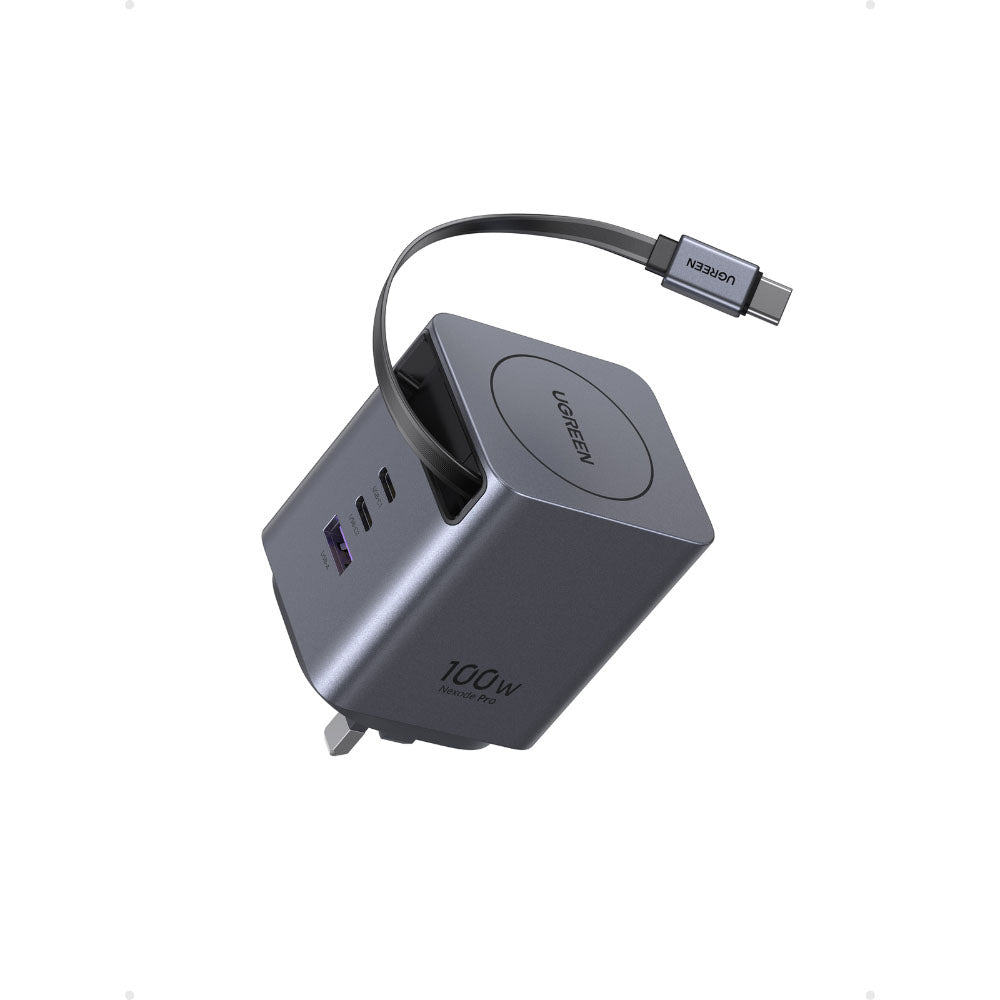

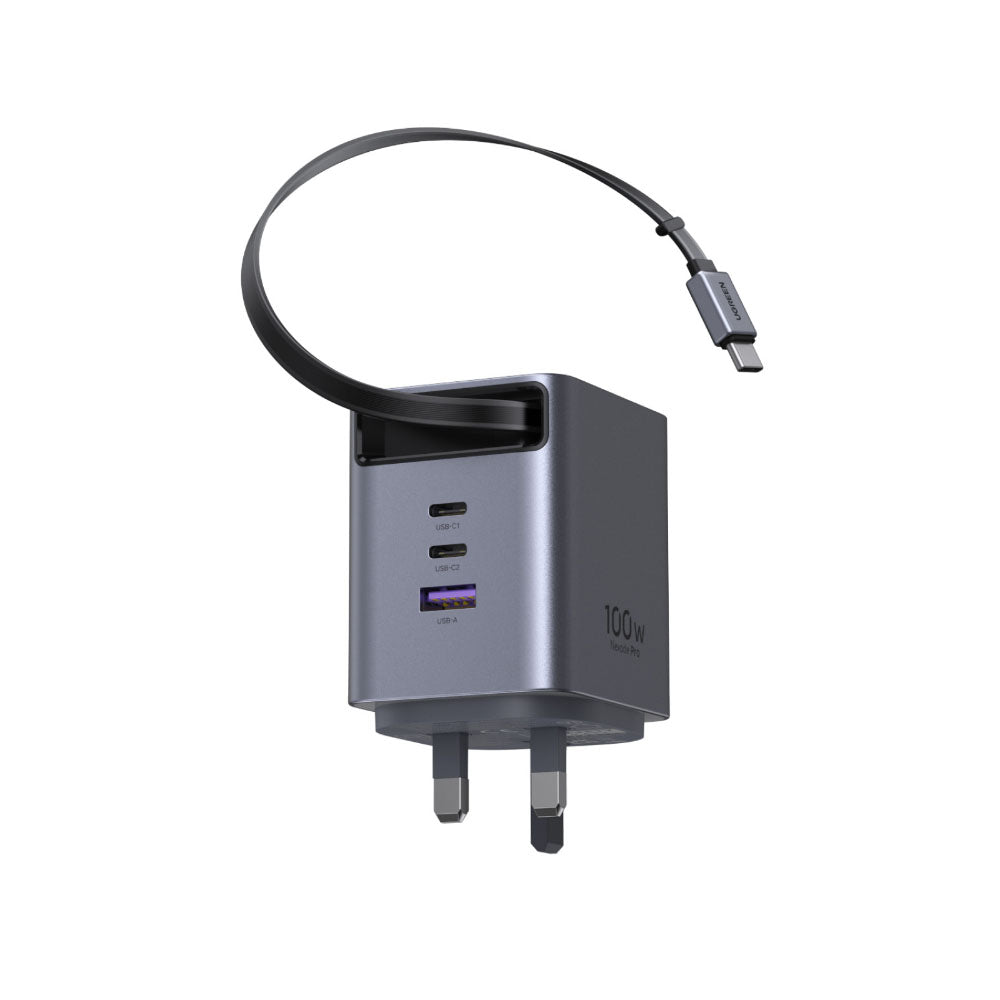

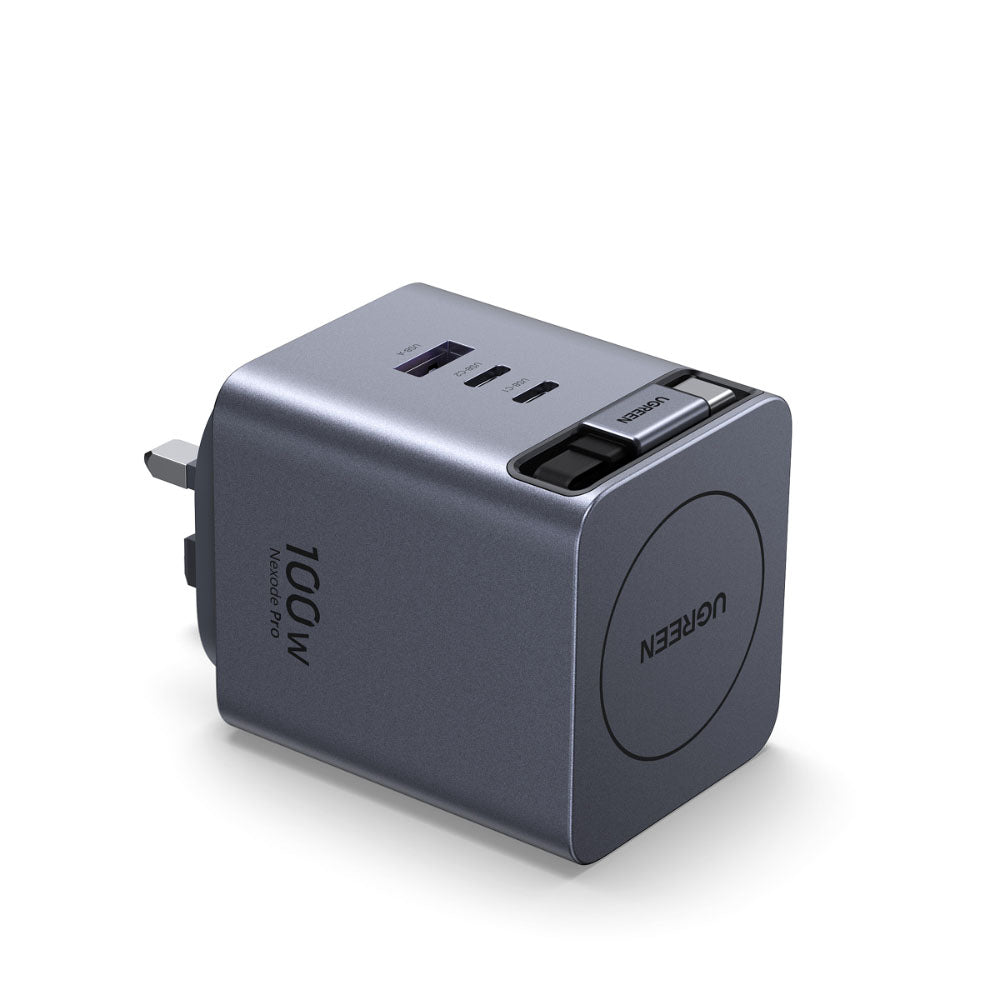

Ugreen X616 65829 100W GaN Charger with Retractable 0.7m Cable (3C1A)
SKU: 6941876268290
Multiple outputs can be seen in the power distribution table.
* Output total power: 100W Max
* Static power consumption ≤ 0.3 million
* Output voltage range ±5% of the rated voltage
* Output ripple: 5V ≤ 150mV, 9V ≤ 150mV, 12V ≤ 180mV, 15V ≤ 180mV, 20V ≤ 200mV
* Protection Types: Overvoltage/Short Circuit/Overcurrent Protection
* Conversion efficiency meets Level 6 energy efficiency standards
* Output Overtemperature Protection Value: After the NTC detection temperature reaches the set value, output power reduction
* Output overvoltage protection value 110%-130% of the rated output voltage
* Output overcurrent protection value: 105%-130% of the rated output current
* Operating temperature: -10~25℃ (safety standard test working environment temperature)
* AC Input: 100~240V AC, 50/60 Hz, maximum 1.8 amperes
* USB outputs:
USB-C cable: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 100W, Max PPS: 5-21V/5A (PDO broadcast)
USB-C1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 100W, Max PPS: 5-21V/5A (PDO）
USB-C2: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A 30W
Max PPS: 5-11V/2.75A (PDO）
USB-A: 5V/3A, 9V/2A, 12V/1.5A, 10V/2.25A 22.5W Max
