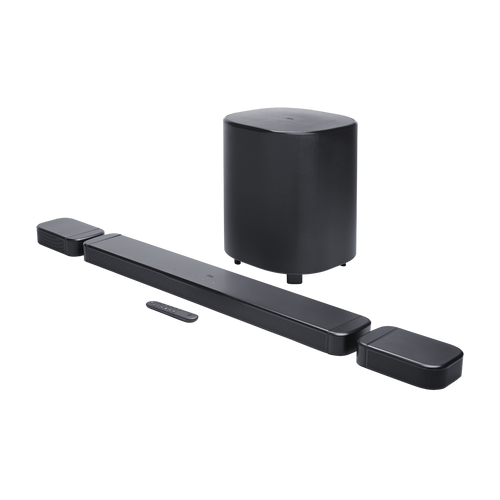

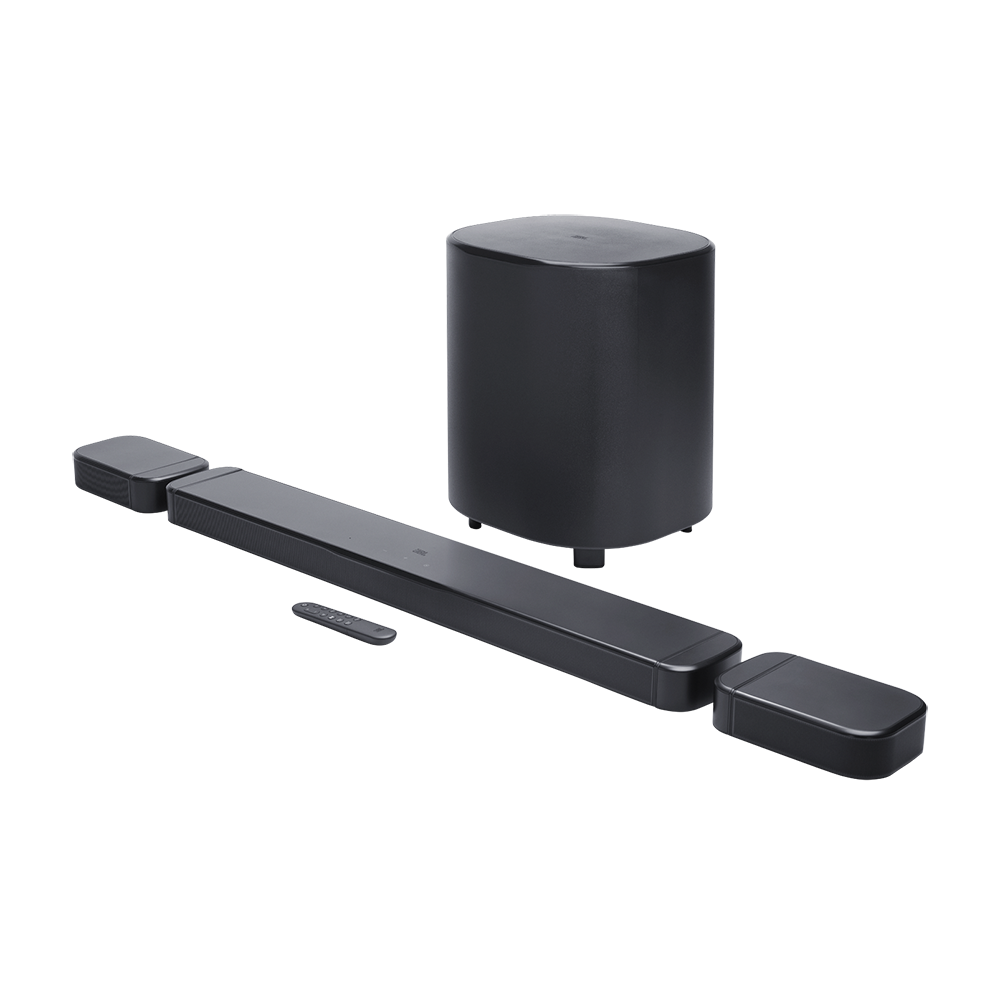

JBL Bar 800 MK2 5.1.2 Soundbar Wireless Surround & Subwoofer (Black)

Key Specifications

General Specifications

• Sound system: 7.1 channel
• Power supply: 100 - 240V AC, ~ 50/60Hz
• Total speaker power output* (Max. @THD 1%): 780W
• Soundbar output power** (Max. @THD 1%): 400W
• Surround speaker output power*** (Max. @THD 1%): 2x 40W
• Subwoofer output power**** (Max. @THD 1%): 300W
• Soundbar transducer: 6x (44x80)mm racetrack drivers, 2x 1” (25mm) tweeters
• Surround speaker transducer: 2x (44x90)mm racetrack drivers
• Subwoofer transducer: 10” (260mm)
• Lithium battery: 3.635V, 3283mAh
• Detachable surround speaker playtime: up to 10 hours (may vary according to content type and volume level)

HDMI Specification

• HDMI video input: 1
• HDMI video output (with Enhanced Audio Return Channel, eARC): 1
• HDMI HDCP version: 2.3
• HDR pass through: HDR10+, Dolby Vision

Audio Specification

• Frequency response: 35Hz - 20kHz (-6dB)
• Audio inputs: Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

USB specification

• USB port: Type A
• USB rating: 5V DC, 0.5A
• Supporting file formats: mp3

Wireless specification

• Bluetooth version: v5.3
• Bluetooth profile: A2DP v1.3, AVRCP v1.5
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth transmitter power: <15 dBm (EIRP)
• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
• 2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
• 2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)
• 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
• 5G Wi-Fi transmitter power: 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP)
• Note: Band 5.6 - 5.64 GHz will be disabled when shipped to Australia / New Zealand.

Dimensions

• Total soundbar dimensions (W x H x D): 1163 x 52 x 128mm / 45.8” x 2.0” x 5.0”
• Soundbar dimensions (W x H x D): 854 x 52 x 128mm / 35.6” x 2.0” x 5.0”
• Detachable surround speaker dimensions (each) (W x H x D): 169 x 52 x 128mm / 6.7” x 2.0” x 5.0”
• Subwoofer dimensions (W x H x D): 325 x 400 x 325 mm / 12.8” x 15.7” x 12.8”
• Soundbar weight: 5kg / 11lbs
• Detachable surround speaker weight (each): 0.7 kg / 1.6 lbs
• Subwoofer weight: 8.1kg / 17.8 lbs
• Packaging dimensions (W x H x D): 980 x 398 x 495 mm / 38.58” x 15.67” x 19.49”
• Packaging Weight: 20.8kg / 45.9lbs (EMEA/UK/AU/NZ); 18.08kg / 41.4lbs (Others)

What’s in the box:

• 1x Main soundbar
• 2x Detachable wireless surround speakers
• 1x Wireless subwoofer
• Remote control with 2 x batteries
• Power cords (up to 6pcs depending on region SKUs)
• 1 x HDMI cable
• 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
• 4 x Side caps
• Quick start guide
• Safety instruction and Warranty card
• Wall mount template
