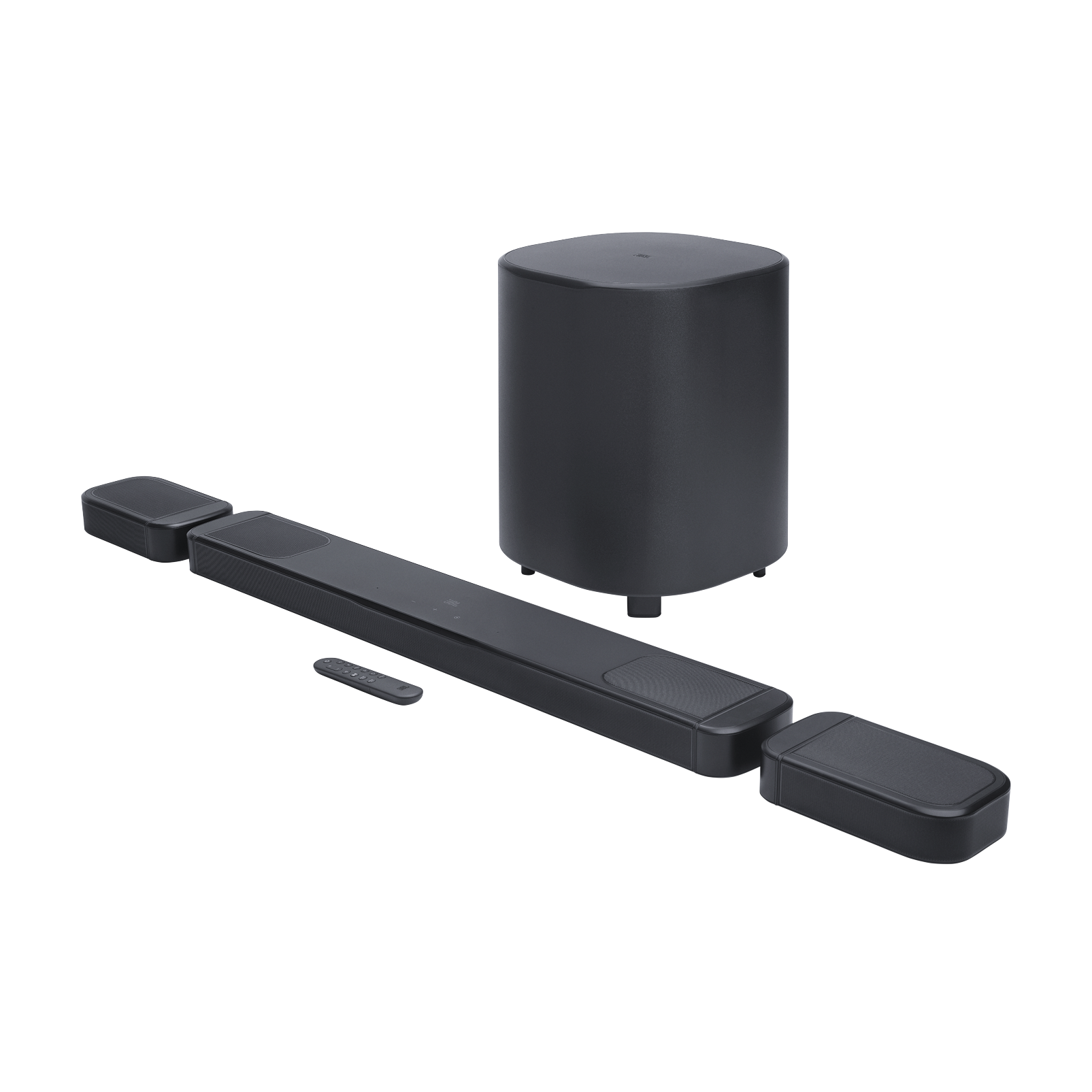

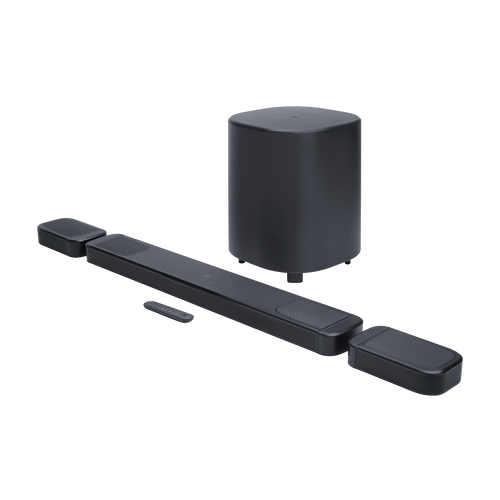

JBL Bar 1000 MK2 7.1.4 Soundbar Wireless Surround & Subwoofer (Black)
SKU: 0050036407892
S$1,899.00
VC Cashback:
$94.95
$1,899.00
Add Extended Warranty At Checkout
Get 2 years of extended warranty for just $0.52 per day.
Learn more
Free shipping on orders over $88
Key Specifications
General Specifications
- Sound system: 7.1.4 channel
- Power supply: 100 - 240V AC, ~ 50/60Hz
- Total speaker power output* (Max. @THD 1%): 960W
- Soundbar output power** (Max. @THD 1%): 500W
- Surround speaker output power*** (Max. @THD 1%): 2x 80W
- Subwoofer output power**** (Max. @THD 1%): 300W
- Soundbar transducer: 6x (44x80)mm racetrack drivers, 2x 1” (25mm) tweeters, 2x 2.75” (70mm) up-firing full-range drivers
- Surround speaker transducer: 2x (44x90)mm racetrack drivers, 2x 2.75” (70mm) up-firing full-range drivers
- Subwoofer transducer: 10” (260mm)
- Lithium battery: 3.635V, 6600mAh
- Detachable surround speaker playtime: up to 10 hours (may vary according to content type and volume level)
HDMI Specification
- HDMI video input: 3
- HDMI video output (with Enhanced Audio Return Channel, eARC): 1
- HDMI HDCP version: 2.3
- HDR pass through: HDR10+, Dolby Vision
Audio Specification
- Frequency response: 33Hz - 20kHz (-6dB)
- Audio inputs: Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
USB specification
- USB port: Type A
- USB rating: 5V DC, 0.5A
- Supporting file formats: mp3
Wireless specification
- Bluetooth version: v5.3
- Bluetooth profile: A2DP v1.3, AVRCP v1.5
- Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
- Bluetooth transmitter power: <15 dBm (EIRP)
- Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)
- 5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
- 5G Wi-Fi transmitter power: 5.15 - 5.25GHz <23dBm, 5.25 - 5.35GHz & 5.470 - 5.725GHz <20dBm, 5.725 - 5.825GHz <14dBm (EIRP).
Dimensions
- Total soundbar dimensions (W x H x D): 1203 x 52x 128mm / 47.4” x 2.0” x 5.0”
- Soundbar dimensions (W x H x D): 854 x 52 x 128mm / 33.6” x 2.0” x 5.0”
- Detachable surround speaker dimensions (each) (W x H x D): 189x 52 x 128mm / 7.4” x 2.0” x 5.0”
- Subwoofer dimensions (W x H x D): 325 x 400 x 325 mm / 12.8” x 15.7” x 12.8”
- Soundbar weight: 5.5kg / 12.1 lbs
- Detachable surround speaker weight (each): 0.9 kg / 2 lbs
- Subwoofer weight: 9.1 kg / 20 lbs
- Packaging dimensions (W x H x D): 980 x 398 x 495 mm / 38.58” x 15.67” x 19.49”
- Packaging Weight: 22.6kg / 49.8lbs (EMEA/UK/AU/NZ);19.9kg / 44.4lbs (Others)* RMS @THD 1%: 480W
What’s in the box:
- 1x Main soundbar
- 2x Detachable wireless surround speakers
- 1x Wireless subwoofer
- Remote control with 2 x batteries
- Power cords (up to 6pcs depending on region SKUs)
- 1 x HDMI cable
- 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
- 4 x Side caps
- Quick start guide
- Safety instruction and Warranty card
- Wall mount template
