FEATURES
• Provides an enormous 185W of power
• 2-port USB-C® power delivery & 1-port USB™ Type-A
• Charging USB-C® and USB™ Type-A port simultaneously automatically balances the charging output up to 185W:
• The USB-C® 1st port provides up to 140W of power no matter how other port(s) is/are being used
• The USB-C® 2nd port provides up to 45W of power, or up to 33W while being used together with the USB™ Type-A port
• The USB™ Type-A port provides up to 12W fast charging no matter how other port(s) is/are being used

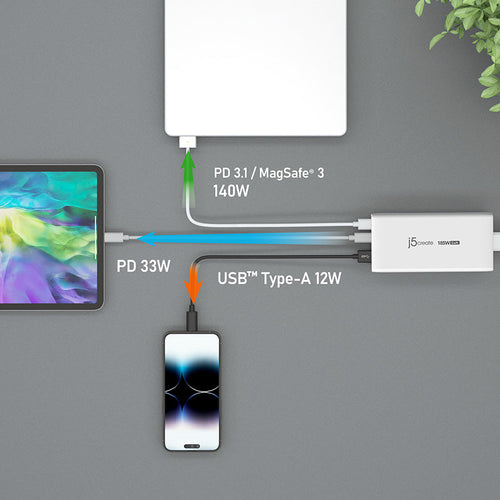

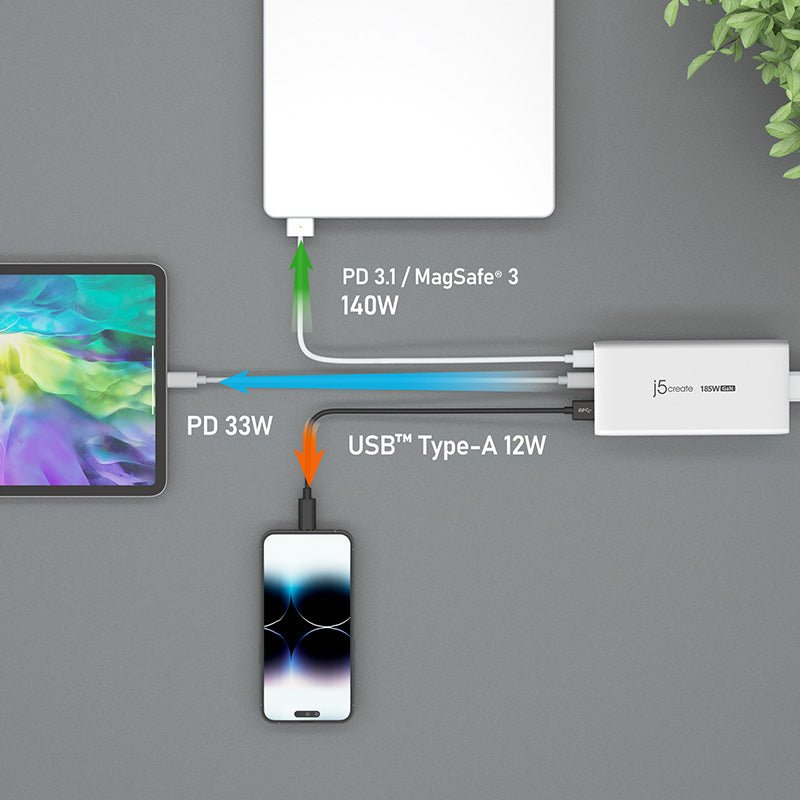

• Power distribution:
| USB-C® 1 | USB-C® 2 | USB™ Type-A | Total |
| PD 140W | - | - | 140W Max |
| - | PD 45W | - | 45W Max |
| - | - | 5V⎓2.4A (12W) | 12W Max |
| PD 140W | PD 45W | - | 185W Max |
| PD 140W | - | 5V⎓2.4A (12W) | 152W Max |
| - | PD 33W | 5V⎓2.4A (12W) | 45W Max |
| PD 140W | PD 33W | 5V⎓2.4A (12W) | 185W Max |
• Suitable for mobile phones, tablets, consoles, and notebooks
• Provides up to 140W of power for the latest Apple MacBook Pro MagSafe® 140W charging
• Provides up to 45W of power to charge a tablet and a phone simultaneously
• Amount of time required for fully charging the following devices
• 2021 MacBook Pro® 16”, charging by C to MagSafe® (8693mAh): 1 hour 27 minutes
• 2021 MacBook Pro® 16”, charging by C to C (8693mAh): 1 hour 43 minutes
*For MacBook charging, data was collected when optimized battery charging was turn off
• iPad® (9720 mAh): 2hours 35minutes
• Samsung® Galaxy™ Tab S7 (10090 mAh): 1hour 35minutes
• Surge, overcharging, overcurrent, and overheating protection to ensure safe charging.
• Built-in intelligent IC to automatically identify devices.
HARDWARE
USB™
USB-C® female x2
USB™ Type-A female x1
Input
AC 100V~240V，50/60 Hz，1.5A (Max)
USB-C® Output 1
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A (Max 140W)
USB-C® Output 2
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A (Max 45W)
USB™ Type-A Output
5V/2.4A
PHYSICAL SPECIFICATIONS
Color
White
Enclosure Type
Plastic
Product Height
5.58 in. (141.8mm)
Product Width
2.68 in. (68 mm)
Product Depth
1.1 in. (28 mm)
Product Weight 512.5 g
Operating Temperature
32 to 86°F (0 to 30°C)
SPECIAL NOTES
• USB-C® cable not included
PACKAGE CONTENTS
• 185W GaN PD3.1 USB-C® 3-Port Charger (JUP37185W)
