- 3-port USB™ Type-A 3.0 SuperSpeed, backwards compatible with USB™ 2.0
- Supports HDMI™ display at a max resolution of 3840 x 2160 @ 30 Hz
- USB™ Micro B port ensures maximum performance, if you are using a high-powered USB™ device
- Plug-and-play
- No software or drivers required
- Aluminum housing

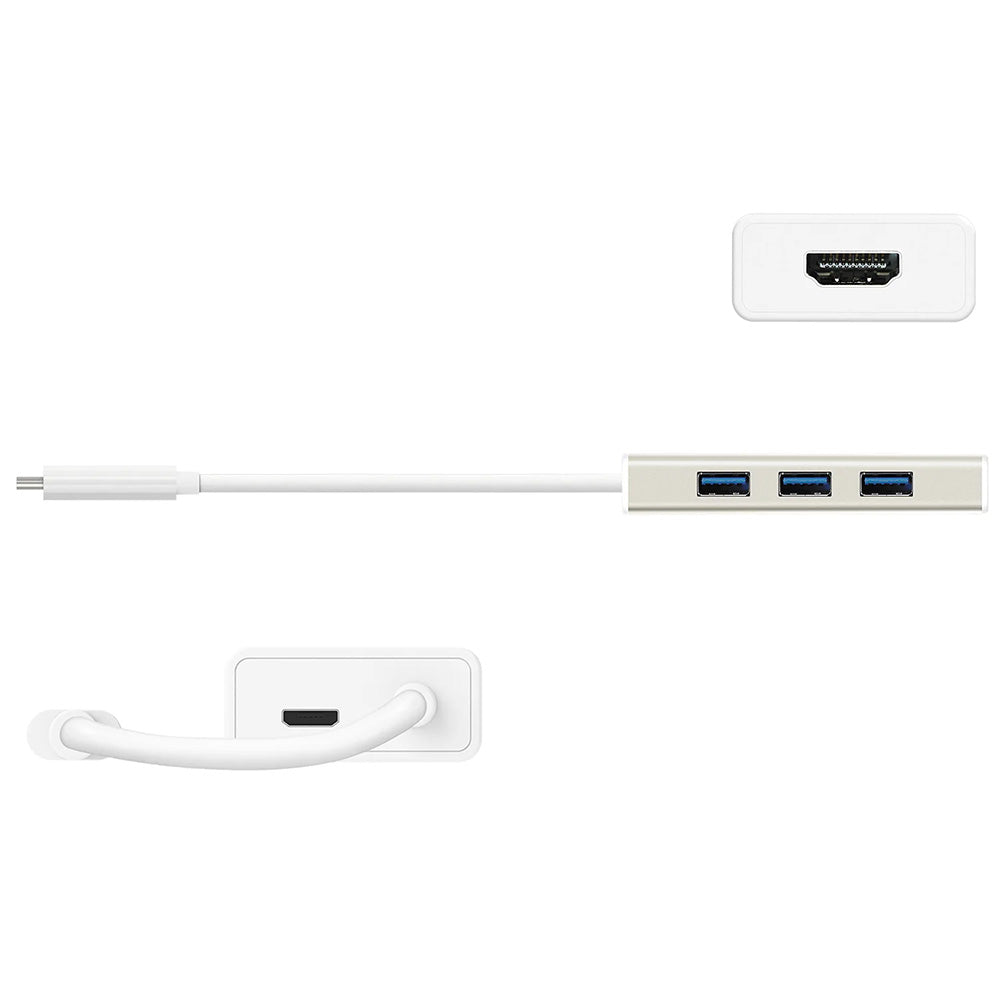

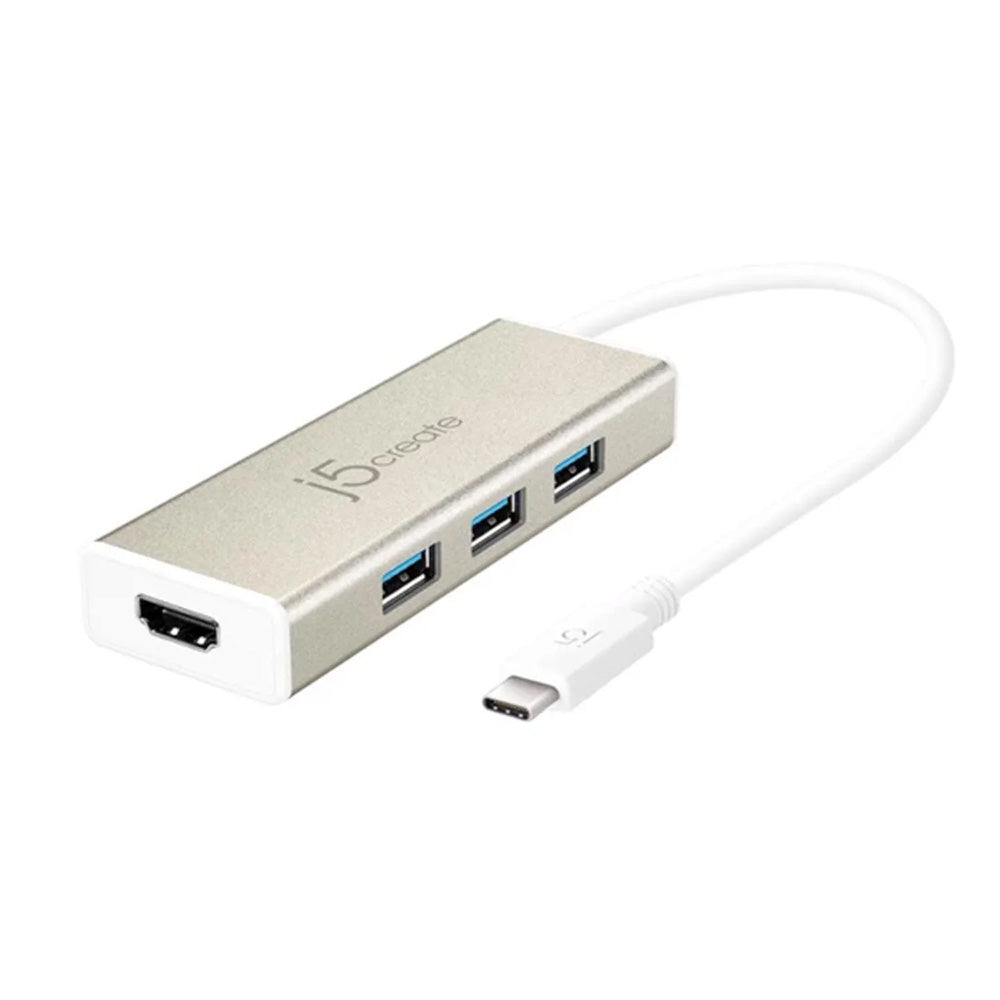

The USB Type-C™ 3.1 3-Port USB™ 3.0 HUB provides extra connectivity from your computer. These pocket-sized multi-adapters allow you to add 3 additional USB™ 3.1/3.0/2.0 ports for computer peripherals, along with an HDMI™ port through your USB Type-C™ port.
USB Type-C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. The USB Type-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C™ offers greater power delivery and faster data transfer rates of up to 10 Gbps.
Interface
Host Interface USB 3.1 Gen1 Type-C Male connector
USB Port USB 3.0 female connector x 3 ports
Video Interface HDMI Female Connector x 1

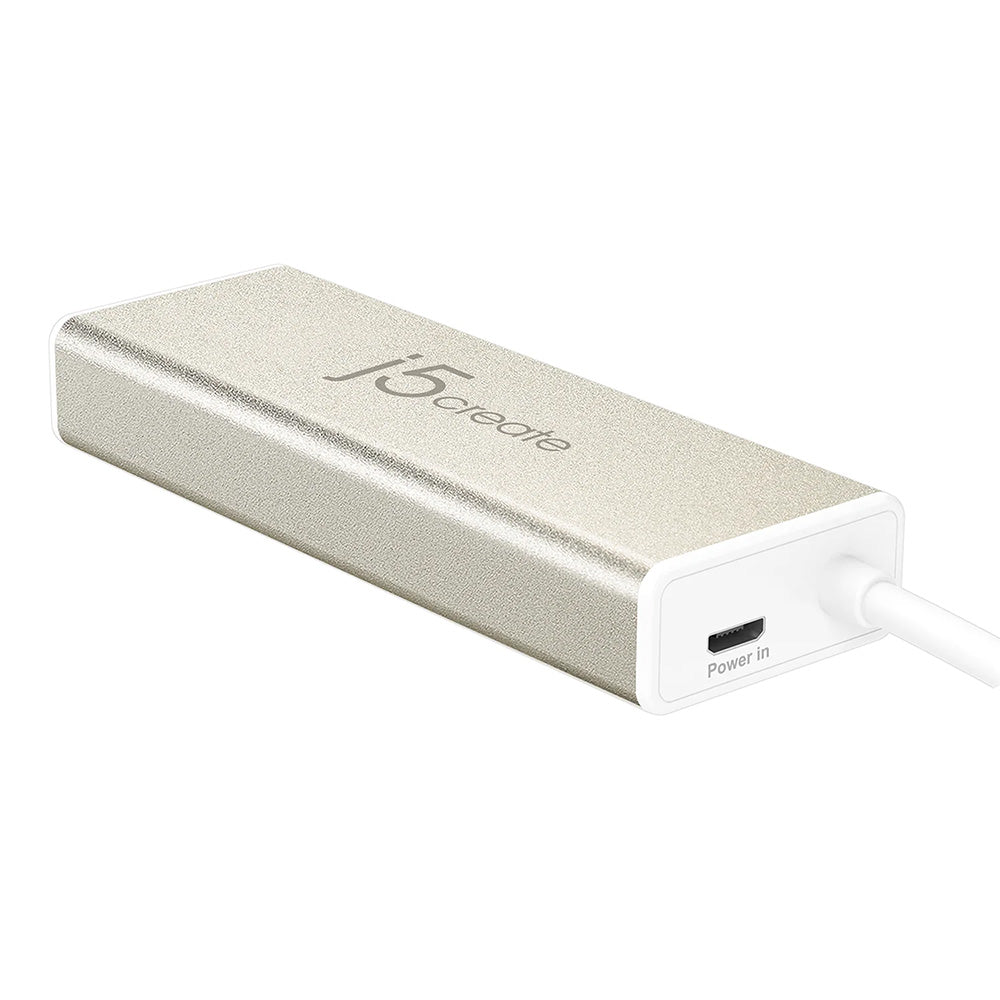

USB Micro B USB Micro-B Female 5V Power in
Power
Power Mode USB-powered or Self-powered
Performance
HDMI Display resolution: 4K @ 30 Hz
Physical Specifications
Dimensions Main body:
33 (W) x 94.7 (H) x 15.6 (D) mm
Cable length: 23 cm
Weight Approximately 549.5g (including cable)
Environmental
Storage Temperature -10 – 65°C
Storage Humidity < 85% non-condensing
Operation Temperature 0 – 40°C
Operation Humidity < 85% non-condensing
Notes:
If you are using a high-powered USB device, please attach the power adapter
To ensure files copy completely, do not remove the Type-C power adapter while copying files
System Requirements
Available USB Type-C port (USB 3.1 is recommended)
Available DisplayPort Alt Mode over USB Type-C port
HDMI: DisplayPort v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution
Package Contents
JCH451 USB 3.1 Type-C 3-Port USB 3.0 HUB & 4K HDMI
Quick Installation Guide
