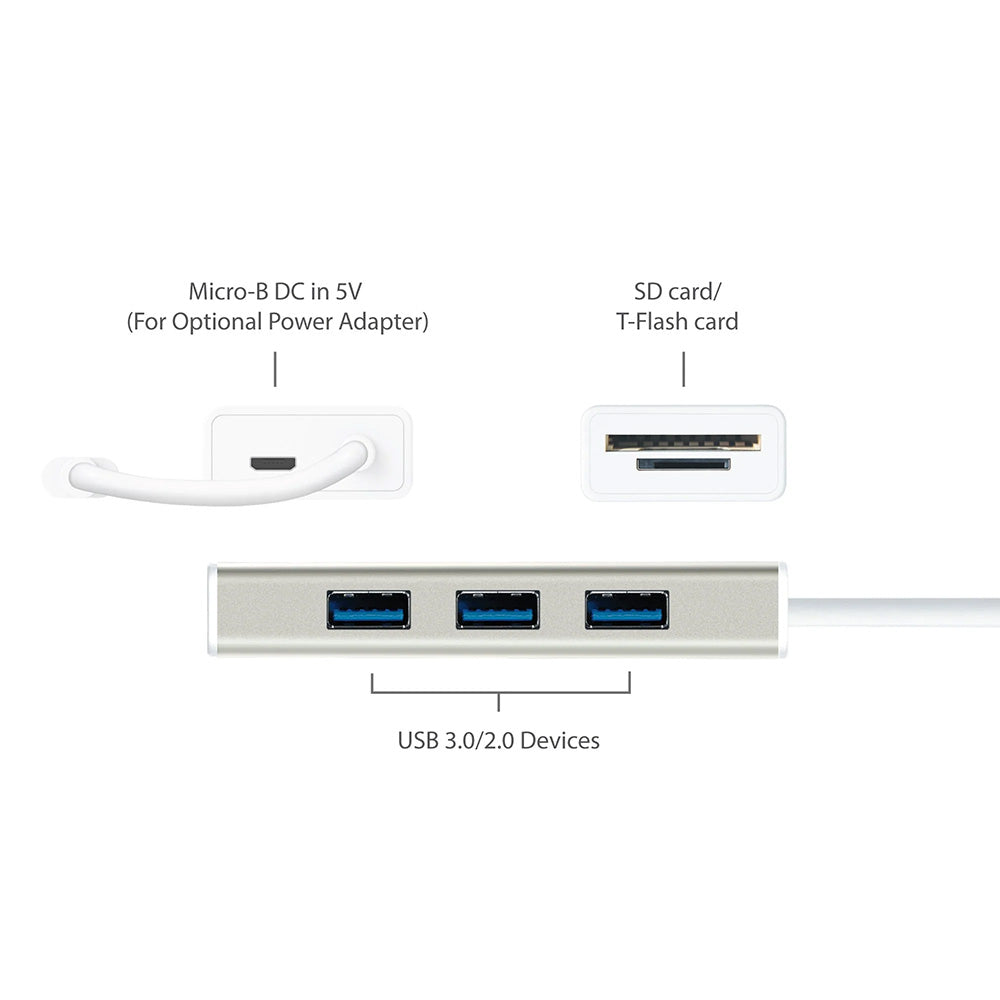

- 3-port USB™ 3.0 Type A SuperSpeed, backwards compatible with USB™ 2.0
- SD™/MicroSD™ slots allow for external memory access
- USB™ Micro B port ensures maximum performance, if you are using a high-powered USB™ device
- Plug-and-play
- No software or drivers required
- Aluminum housing

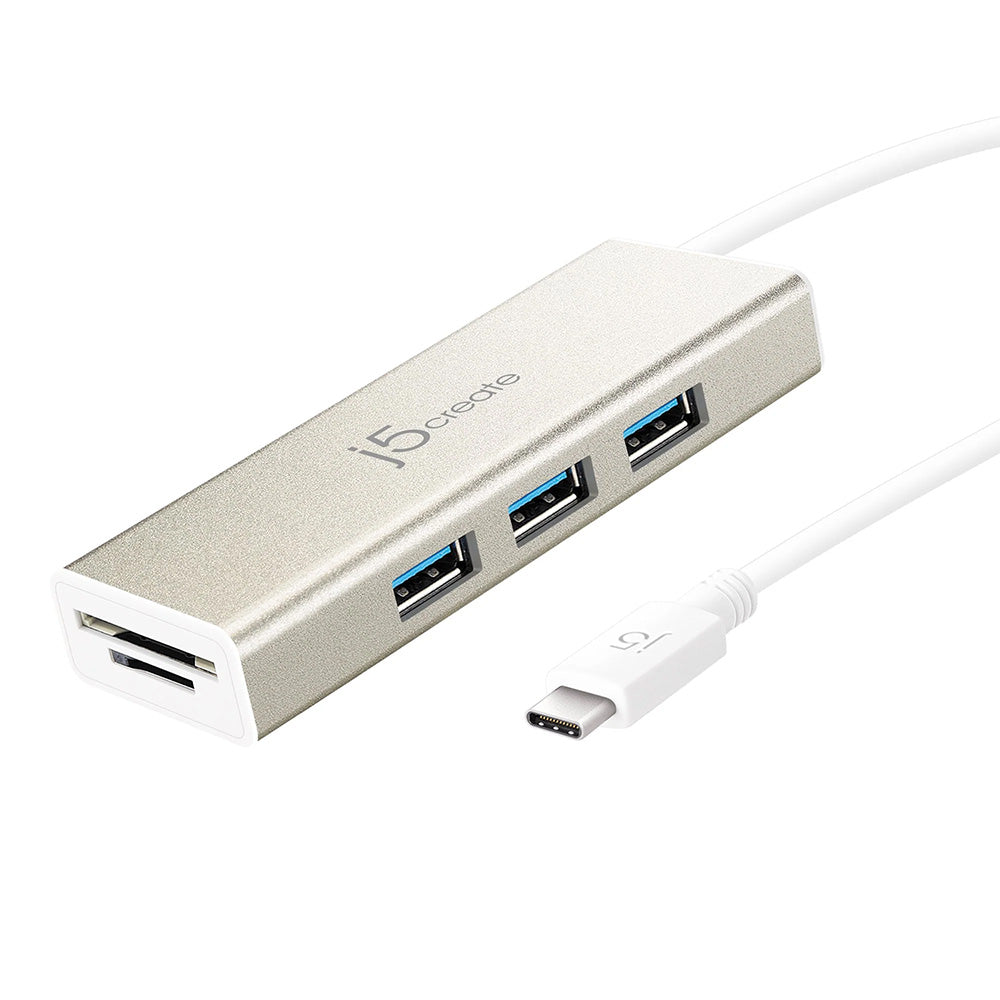

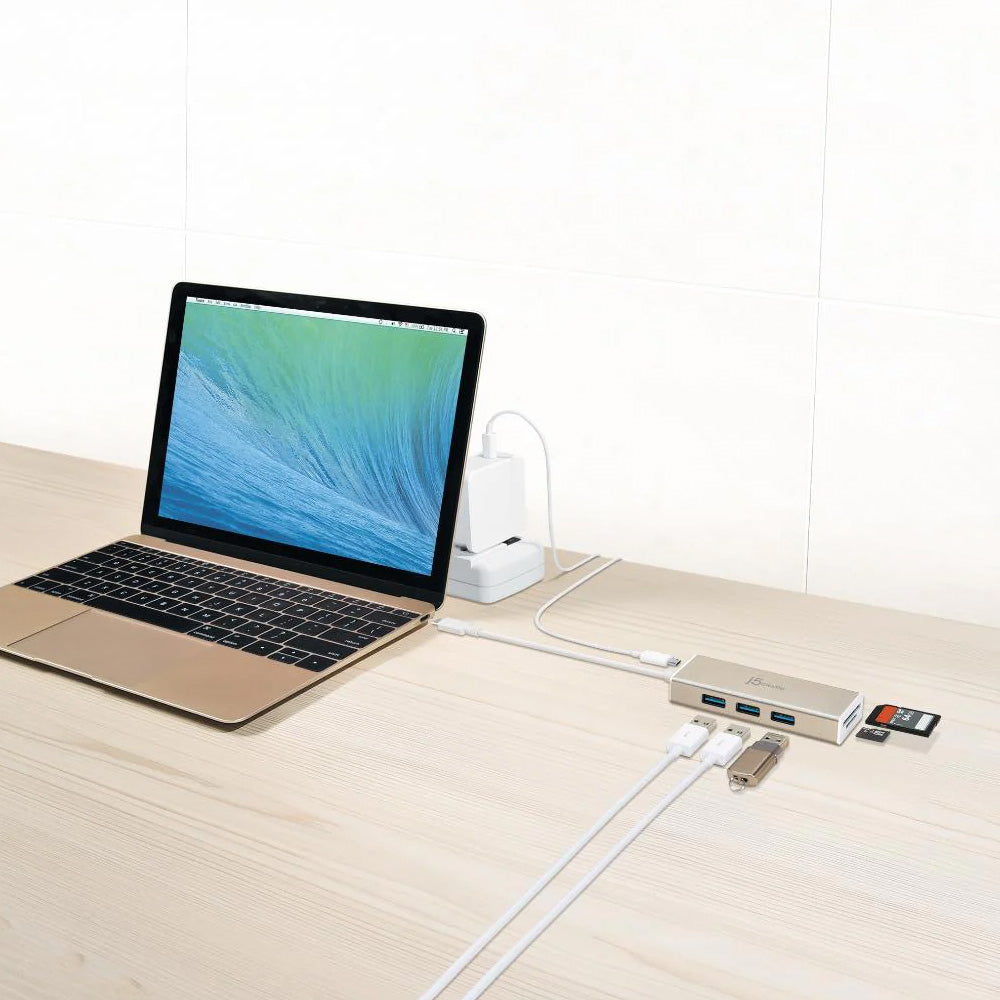

The USB-C™ 3.1 3-Port USB™ 3.0 HUB provides extra connectivity from your computer. These pocket-sized multi-adapters allow you to add 3 additional USB™ 3.1/3.0/2.0 ports for computer peripherals, along with a SD™/MicroSD™ through your USB-C™ port.
Interface
Host Interface USB 3.1 Gen1 Type-C Male connector
USB Port USB 3.0 female connector x 3 ports
Card slots
USB 3.0 SD x 1 Slot Female
USB 3.0 MicroSD x 1 Slot Female

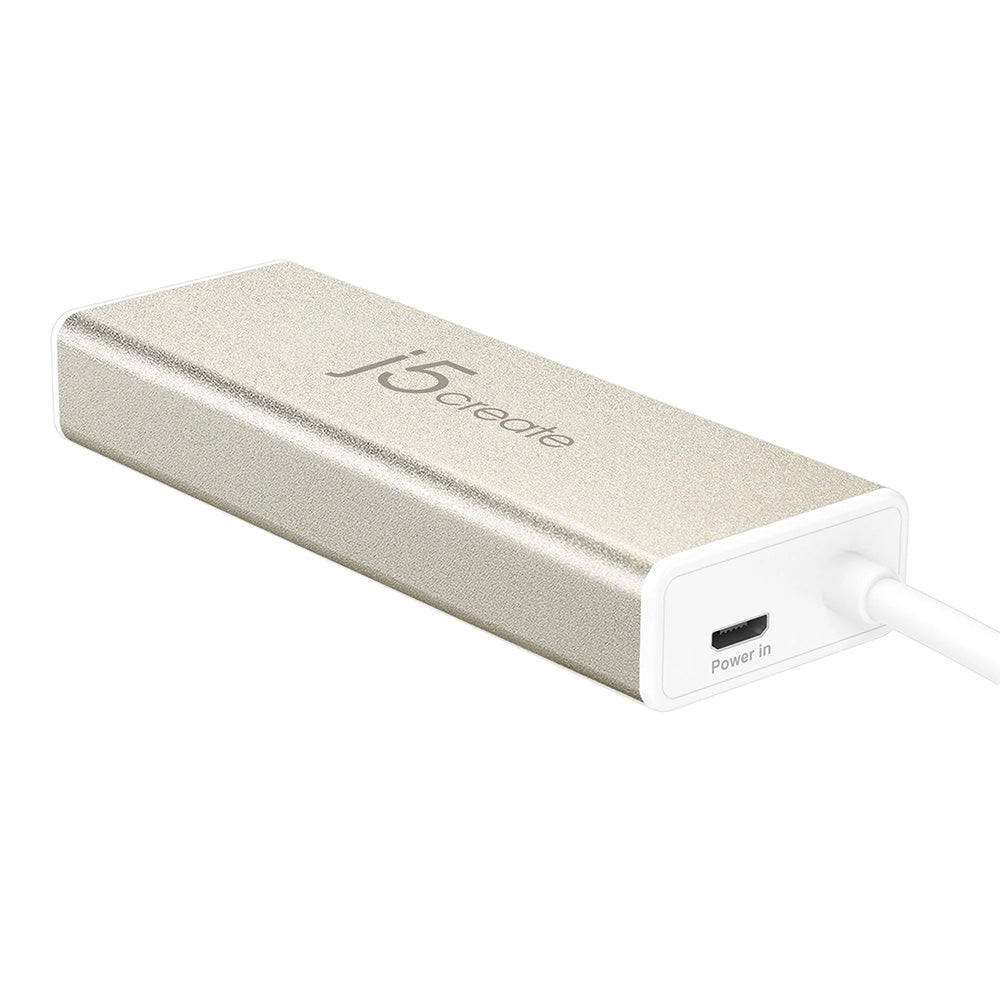

USB Micro B USB Micro-B Female 5V Power in
Power
Power Mode USB-powered or Self-powered
Performance
Max Drive Capacity 2 TB
Memory Media Type
SD/MMC (Secure Digital/Multimedia Card)
SDHC (Secure Digital High Capacity)
SDXC (Secure Digital Extended Capacity)
Micro-SD (Micro Secure Digital)
Micro-SDHC (Micro Secure Digital High Capacity)
Micro-SDXC (Micro Secure Digital Extended Capacity)
Physical Specifications
Dimensions Main body: 33 (W) x 94.7 (H) x 15.6 (D) mm
Cable length: 23 cm
Weight Approximately 49 g (including cable)
Environmental
Storage Temperature -10 – 65°C
Storage Humidity < 85% non-condensing
Operation Temperature 0 – 40°C
Operation Humidity < 85% non-condensing
Notes:
If you are using a high-powered USB device, please attach the power adapter
To ensure files copy completely, do not remove the Type-C power adapter while copying files
System Requirements
Available USB Type-C port (USB 3.1 is recommended)
Package Contents
JCH347 USB 3.1 Type-C 3-Port HUB with SD/Micro SD Card Reader
Quick Installation Guide
