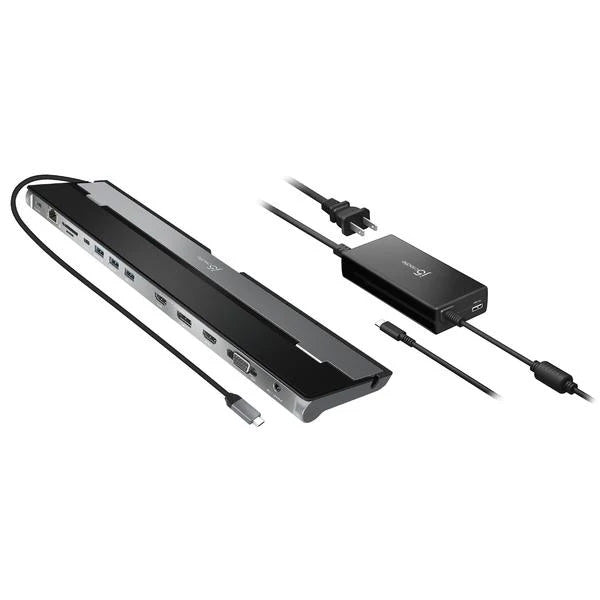

J5Create JCD543P USB-C Triple Display Docking Station with PD Adapter
SKU: 4712795084009
The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.
These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.
- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x1；Power delivery adapter in port x1
- USB™ Type-A downstream port Gen 1 5G x3
- DisplayPort™ Alt mode supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- USB™ graphic HDMI™ resolution 4K @ 30 Hz; VGA Resolution 1920 x 1080 dual output
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm
Host Interface: USB-C™ Male Connector With Cable
Video Interface:
HDMI™ Female Connector X 2
DisplayPort™ Female Connector X 1
VGA Female Connector X 1
USB-C™ Ports:
USB-C™ Downstream Port Female Connector X 1
USB-C™ Power In Port Female Connector X1
Ethernet Port:
RJ45 Female Connector (Gigabit Ethernet) X 1
USB™ Ports:
USB™ Type-A 3.1 5G Female Connector X 3
Card Slots:
SD™ 3.0 X 1 Slot
MicroSD™ 3.0 X 1 Slot
Combo Audio Jack
Microphone And Speaker
Power:
Power Mode: Bus-Powered Or Self-Powered
Functions:
DisplayPort™ Alt Mode
Display Resolution: 4K @ 30 Hz
HDMI™
Display Resolution: 4K @ 30 Hz
VGA
Display Resolution: 1920 X 1080 @ 60 Hz
USB-C™
Power Delivery 3.0 X 1
USB-C™ 3.1 Port X 1
USB™
USB™ Type-A 3.1 Port X 3 (USB™ 3.1 Gen 1/5 Gbps)
BC 1.2 Port X 1
Ethernet:
Transfer Rate: 1000 Mbps (Half Duplex)/1000 Mbps (Full Duplex)
IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, And 802.3ab, IEEE 802.3x
Modes:
Supports Wake on LAN function, suspend mode and remote wakeup via link-change, Magic Packet™ or Microsoft® wakeup frame
Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Physical Specifications
Dimensions:
Main Body:
3.24 (W) X 0.92 (H) X 13.78 (D) In.
82.5 (W) X 23.4 (H) X 350 (D) Mm
USB-C™ Cable Length: 1.5 Ft/450 Mm
Weight
Main Body:
Approximately: 0.66 Lbs./300g
Environmental:
Storage Temperature: -10 – 65°C
Storage Humidity: < 85% Non-Condensing
Operation Temperature: 0 – 40°C
Operation Humidity: < 85% Non-Condensing
System Requirements:
Available USB-C™ DisplayPort™ Alt mode
Available USB-C™ port (USB™ 3.0 is recommended)
Available USB™ power delivery over USB-C™ to support upstream charging
4K capable graphics card
Microsoft® Windows® 10 (32-bit or 64-bit)
macOS® 10.8 or later
Notes
If you are using a high-powered USB™ device, attach the USB-C™ power adapter to the power delivery port to ensure maximum performance.
To ensure files copy completely, do not remove the USB-C™ power adapter while copying files. For maximum performance, use a computer and USB-C™ power adapter equipped with PD 3.0.
Extended Monitor System Requirements
One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core™ i5 Quad Core RAM: 4 GB memory or higher
Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core™ i7 Quad-Core
RAM: 8 GB memory or higher
Higher processors recommended for multi-displays and&
USB-C™ Triple Monitor Docking Station
Quick Installation Guide
100W USB-C™ Power Adapter
