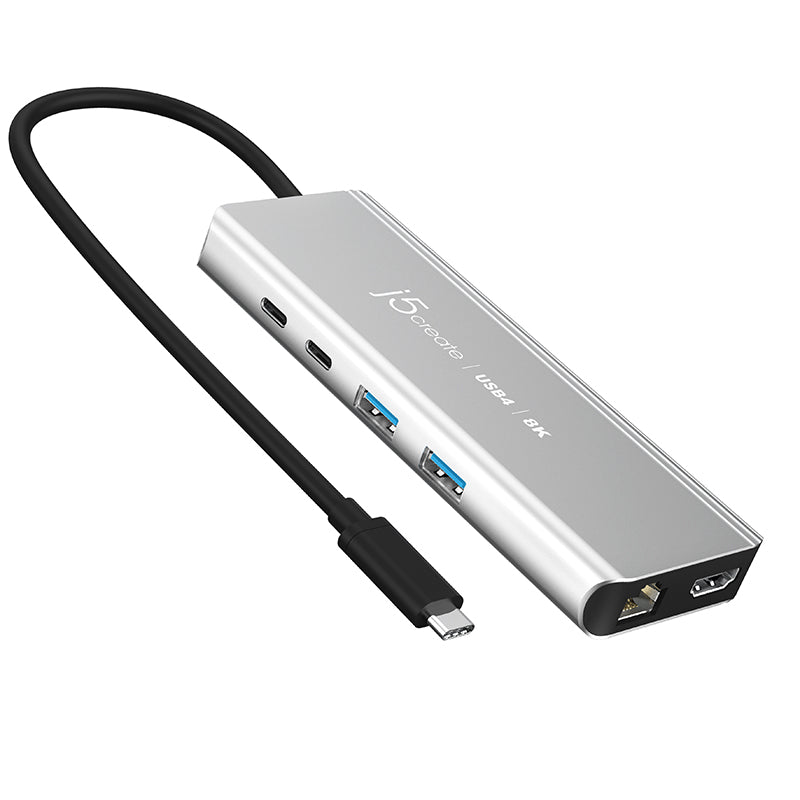

This high-performance USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.
With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.

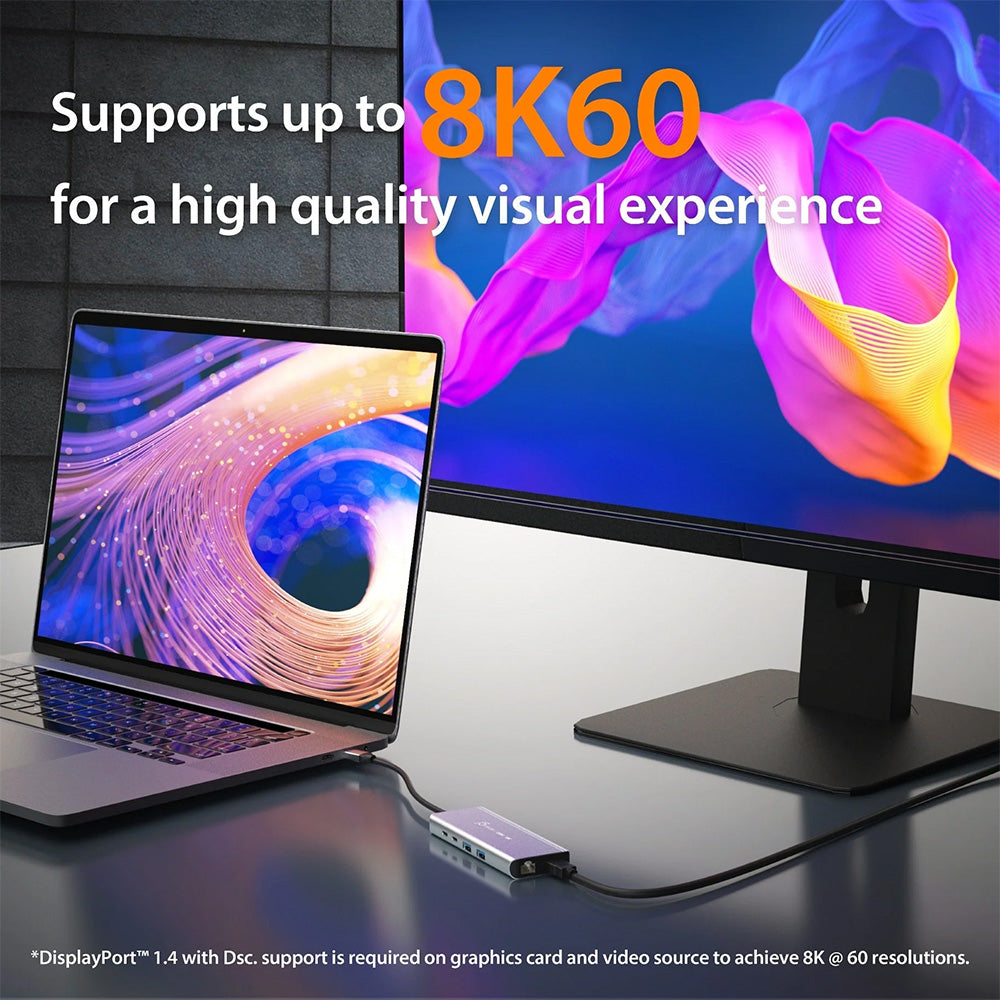

- Supports resolutions up to 8K
- Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops
- *Thunderbolt™ 4, USB4® is required to achieve 8K resolutions.
- *Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays

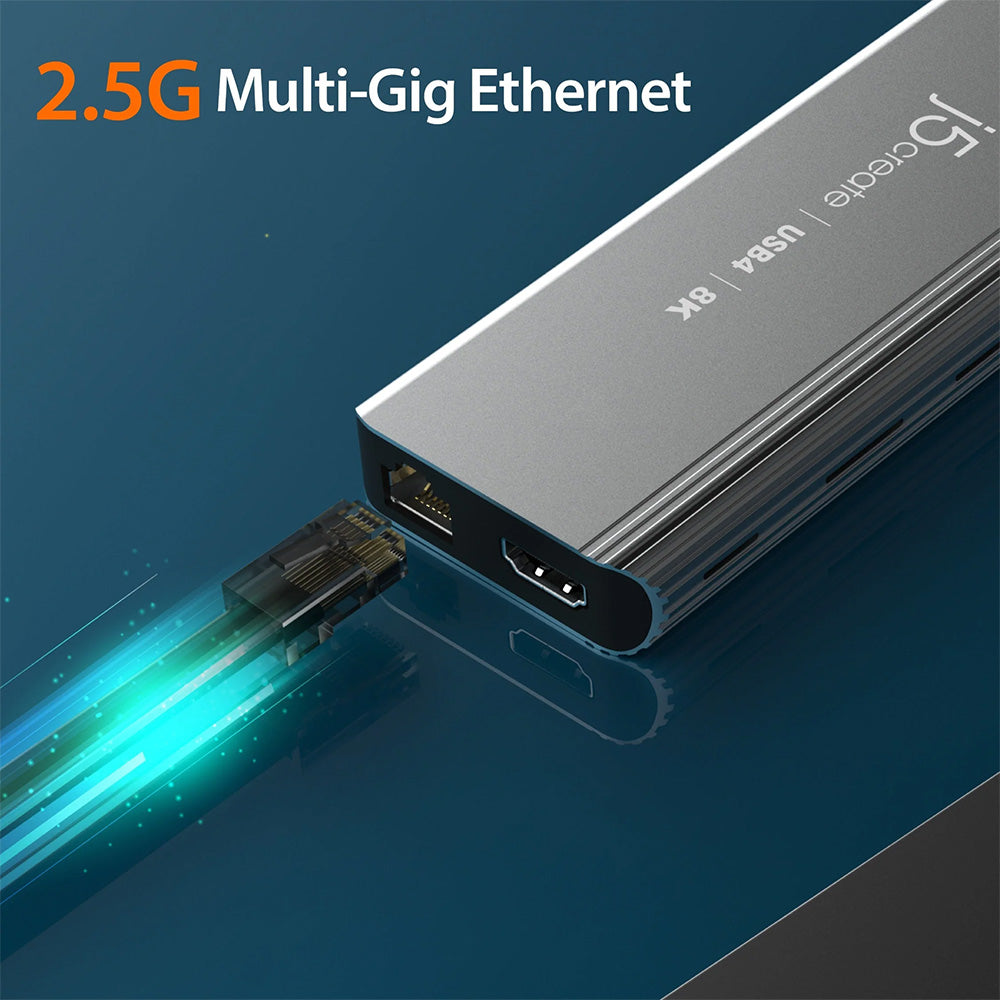

- One 2.5 Gigabit Ethernet port for a high-speed multi-gig network connection
- Two SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your legacy peripheral
- One USB-C® downstream port supports up to 10Gbps data transmission

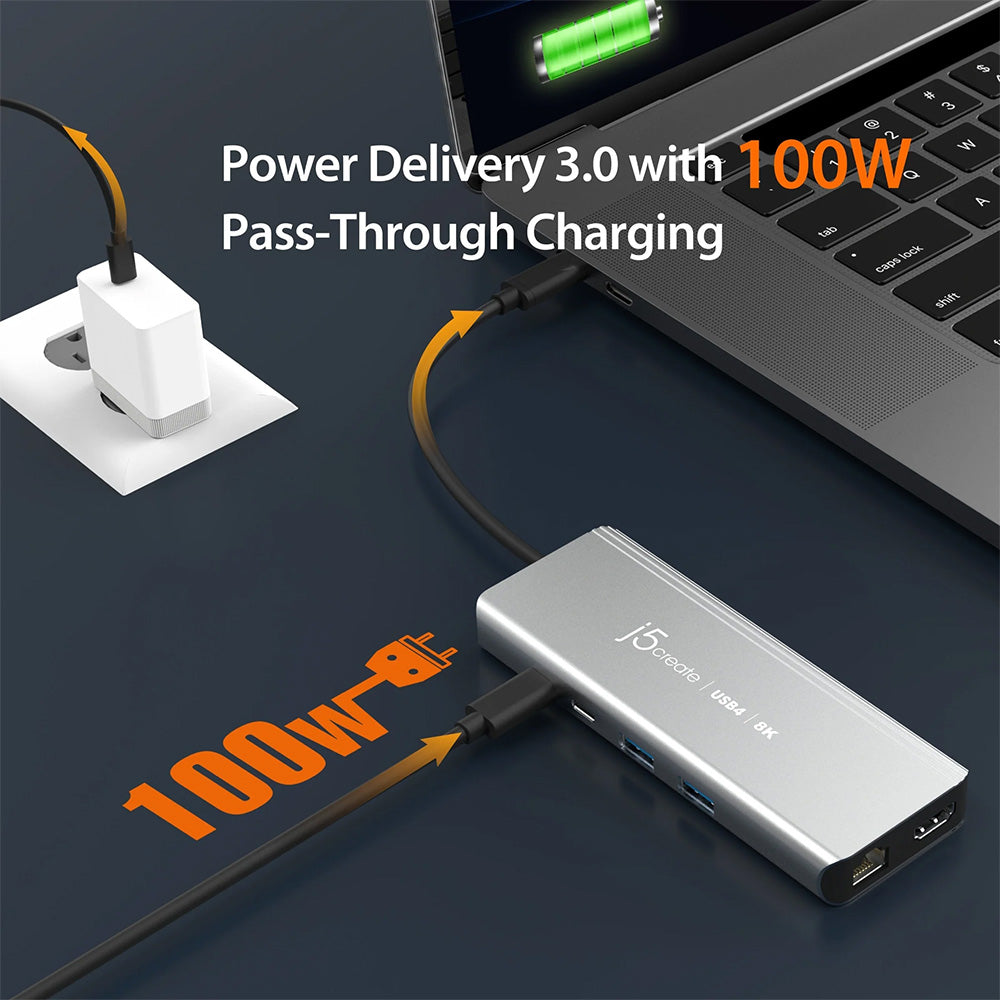

- Power Delivery 3.0 offers up to 100W of pass-through charging

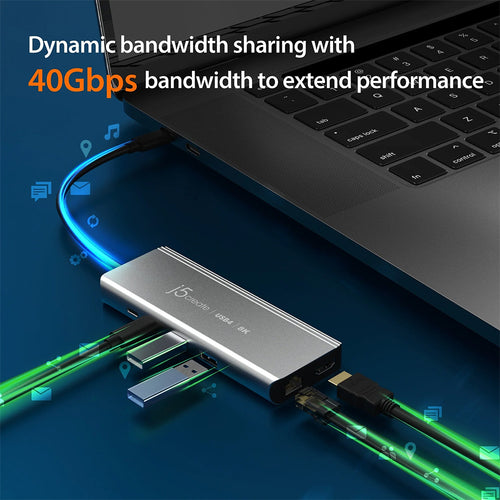

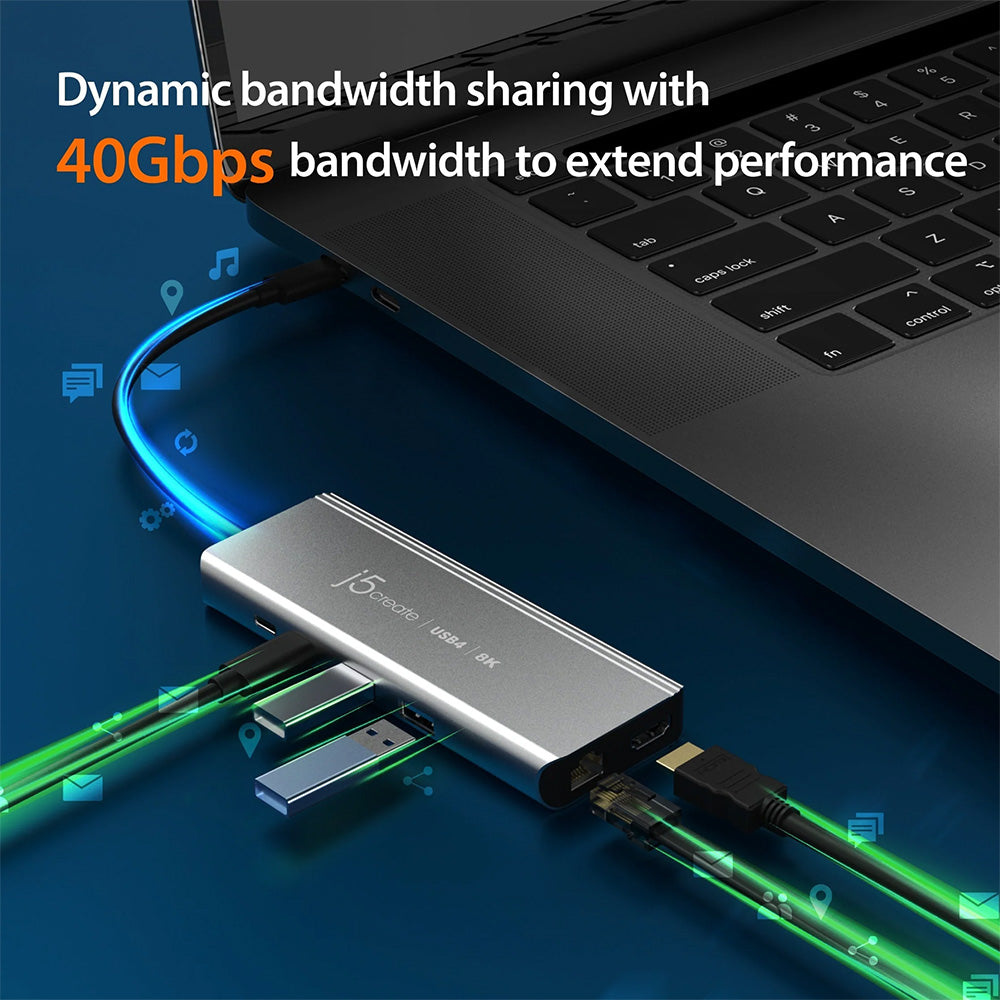

- Multiple data and display protocols efficiently share bandwidth to offer optimal performance
- Wide compatibility with various operating systems and devices
- Plug-and-play, no driver installation required
Hardware
Audio Supported
Yes
Host Connector
1 - USB4® Male
Network Interface
Yes

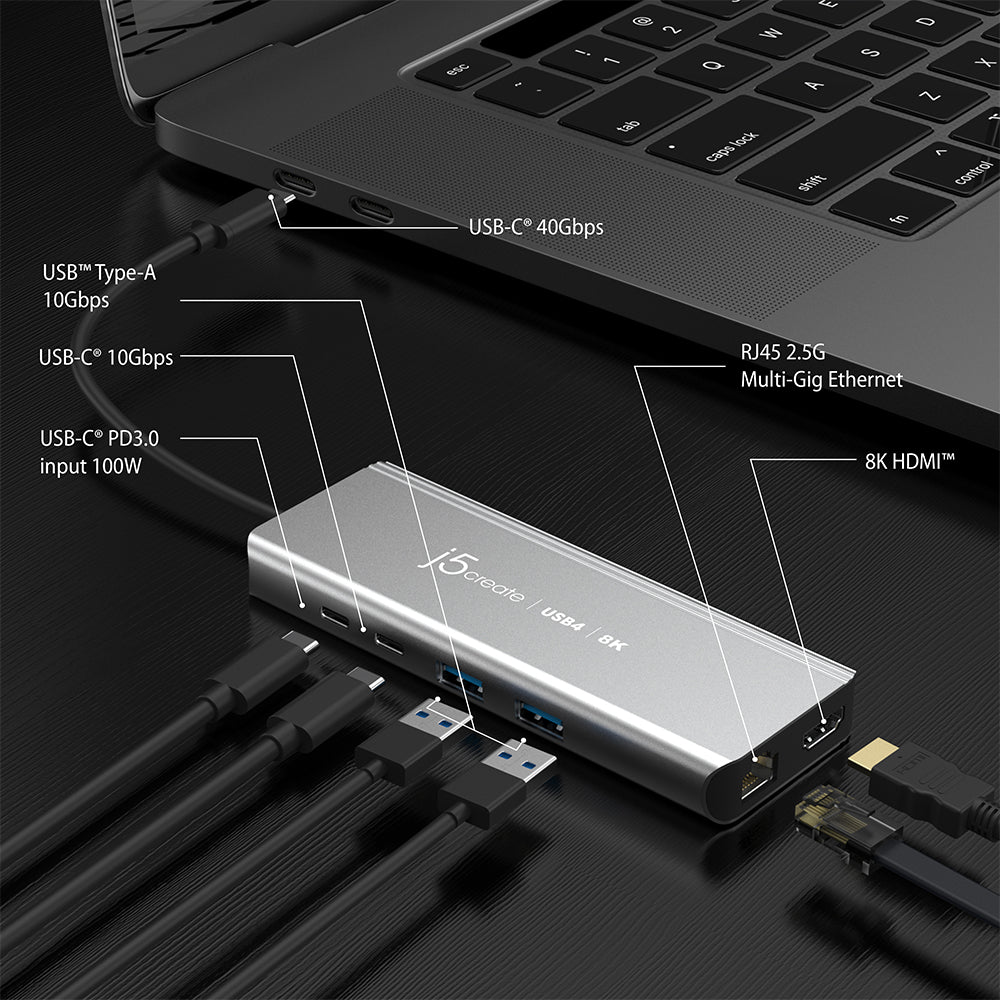

Ports
1- USB-C® 3.2 Gen2 10Gbps data transmission
1- USB-C® power delivery 3.0 100W
2- USB™ Type-A 3.2 Gen2 10Gbps data transmission
1- 8K HDMI™
1- RJ45 2.5 Gigabit Ethernet
Power Source
Bus-powered or self-powered
Video Output
1 - HDMI™ Female
Warranty
2 Year Limited
Performance
Audio Channel
1 - 2.1 via HDMI™
Compatible Networks
10M/100M/1000M/2.5 Gigabit
Displays Supported
HDMI™
Max Data Transfer Rate
10Gbps
Max Display Refresh Rate
60 Hz @ 3840 x 2160
144 Hz @ 3840 x 2160 (* Only for DSC host)
30 Hz @ 7680 x 4320
60 Hz @ 7680 x 4320 (* Only for DSC host)
Max Display Resolution
7680 x 4320
Power
Input Current
Up to 5A
Input Voltage
Up to 20V
Output Current
Up to 4.75A
Output Voltage
Up to 20V
Power Consumption
≤ 900 mA
Power Delivery
Up to 100W via USB-C®
Physical Specifications
Cable Length
7.87 in. (200 mm)
Color
Space Grey
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (-1 to 41°C)
Product Depth
0.59 in. (15 mm)
Product Height
5.3 in. (135 mm)
Product Weight
3.84 oz (109 g)
Product Width
2 in. (51 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155°F (-17 to 68°C)
Package Contents
· 1 - JCD403 USB4® 8K Multi-Port Hub
· 1 - Quick Installation Guide (QIG)
