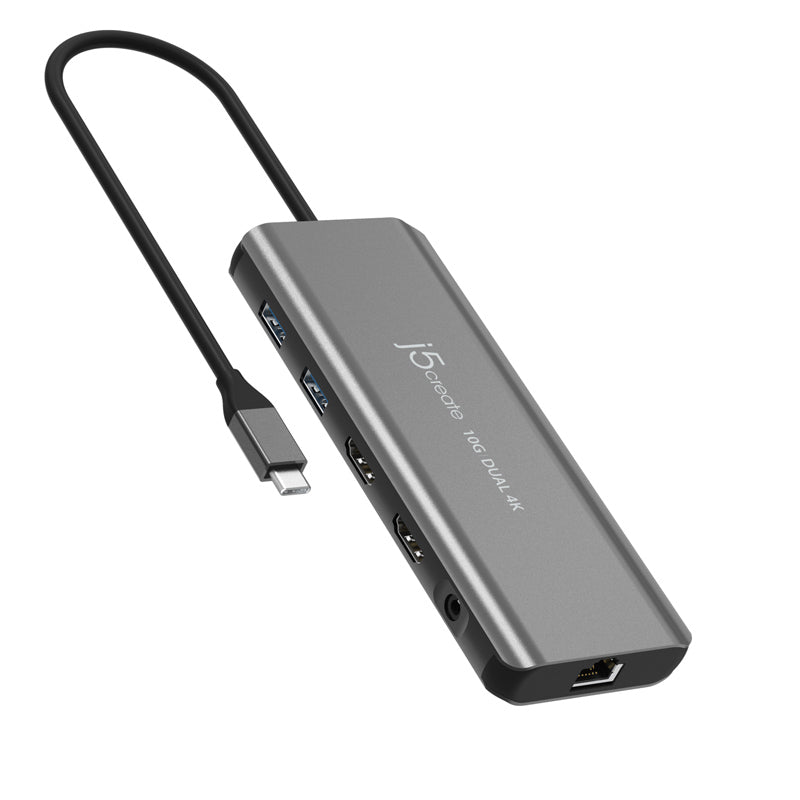

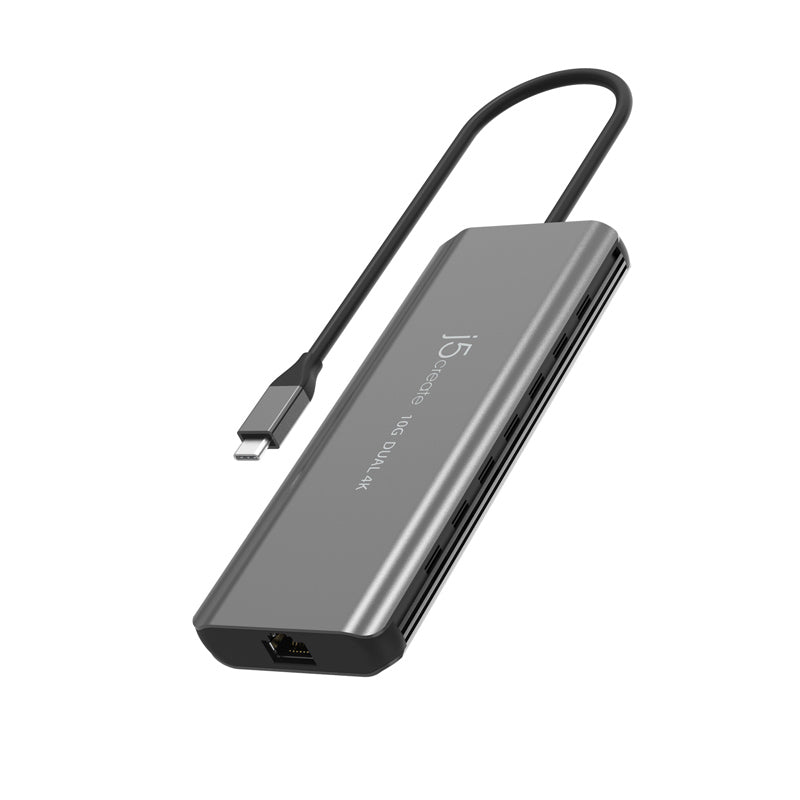

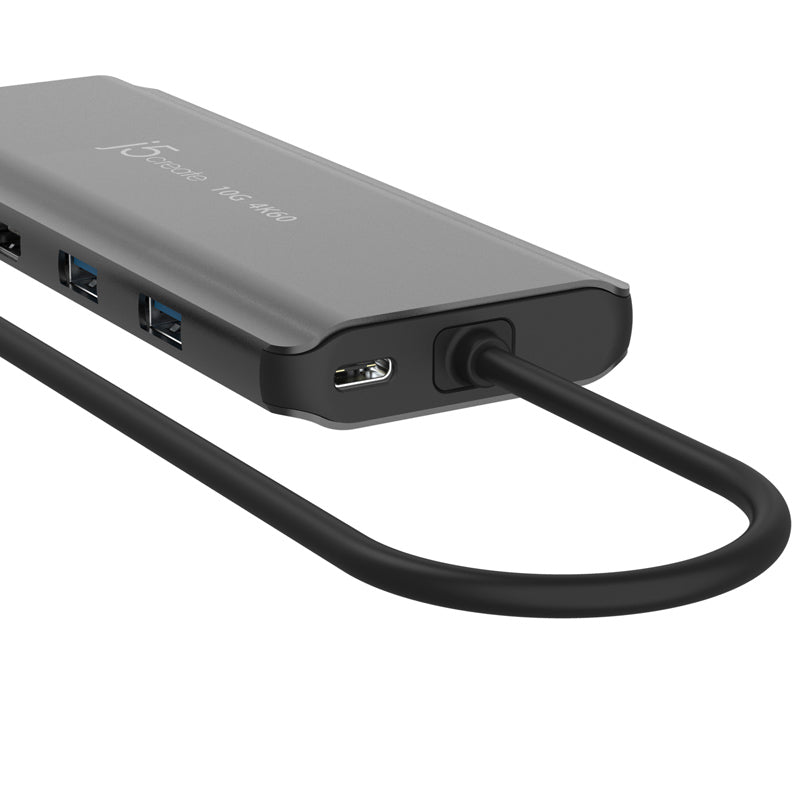

The JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock is great for adding two 4K UHD displays to your laptop PC including MacBook® computers with the Apple® M-Series chip. Its compact size makes it suitable for desk environments that lack space. The USB™ ports support up 10Gbps data transfer rates for connect high speed storage devices and other devices. Supports Power Delivery 3.0 for up to 100W of power passthrough for laptop and tablets. One Gigabit Ethernet port is included for high-speed network connectivity.

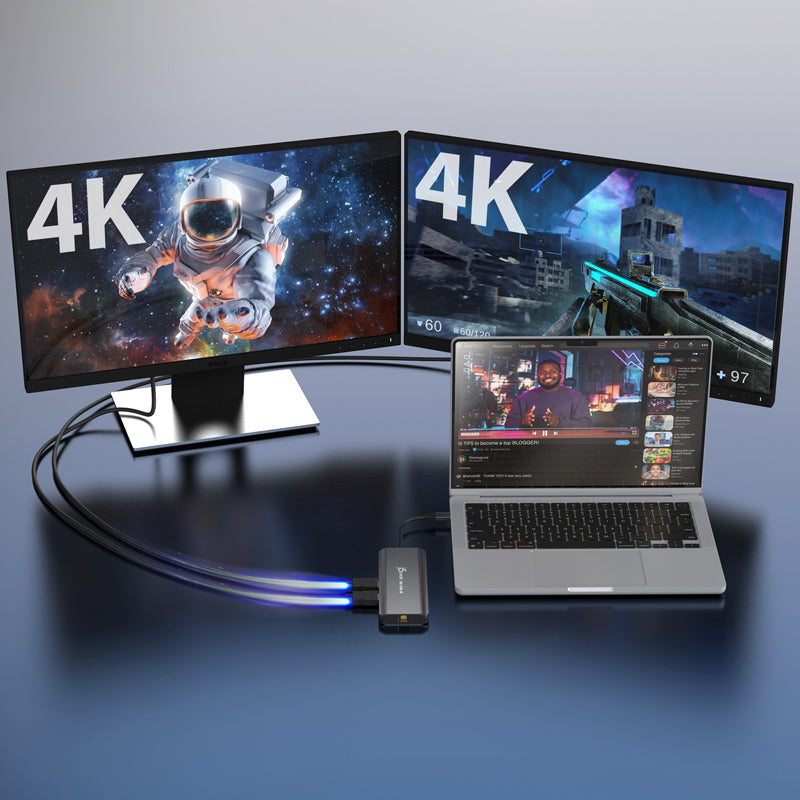

• Easily add two displays via HDMI™ 4K60 Hz and 4K30 Hz

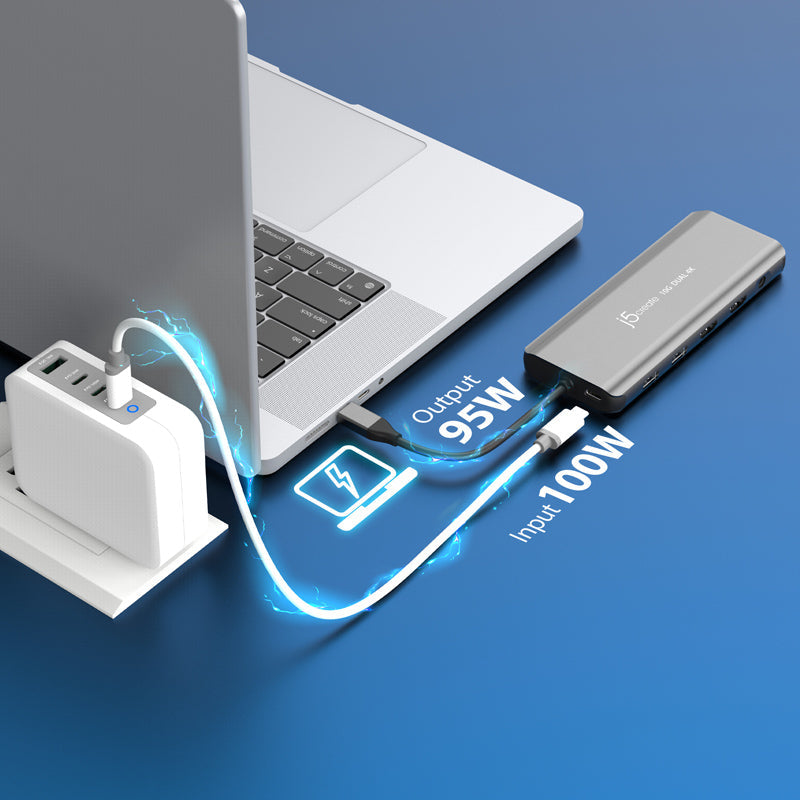

• Power Delivery 3.0 offers up to 100W of charging pass-through
• Connect or charge your USB™ devices with 2 x USB™ ports
• Combo 3.5mm Audio Jack

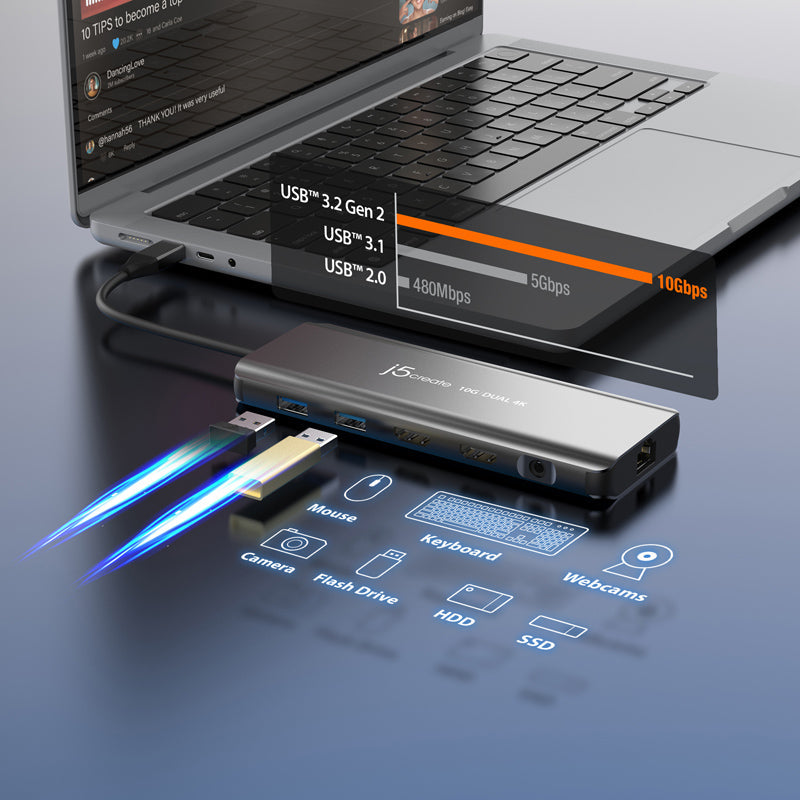

• SuperSpeed+ USB™ 3.2 Gen 2 provides up to 10Gbps transfer rates
• Hot-swappable USB™ enables you to add or remove monitors without rebooting your system

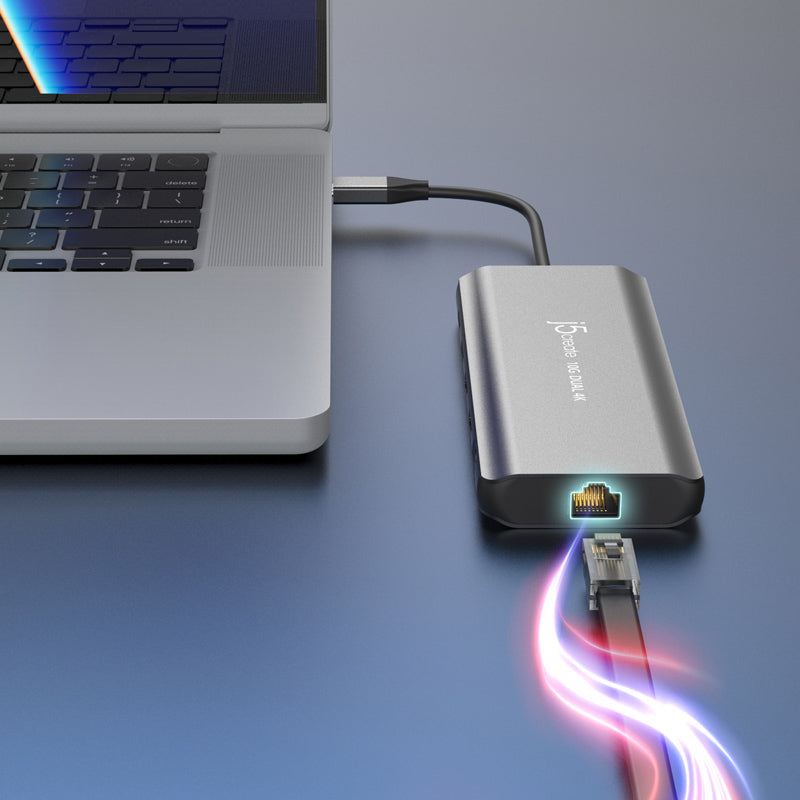

• Reliable network connectivity via the Gigabit Ethernet port
SYSTEM REQUIREMENTS
• Windows® 10 / 11
macOS® 10.14 or later
• Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0/3.0 or
3.1 Please refer to the manufacturer of your computer for more information about your device
• The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz.
HARDWARE
Warranty: 2 Year Limited
Host Connector 1 - USB-C® Male
Video Output 2 - HDMI™ Female
Power Source: Bus-powered & Self-powered
Network Interface: RJ45 (Gigabit Ethernet)
Audio Supported: Yes

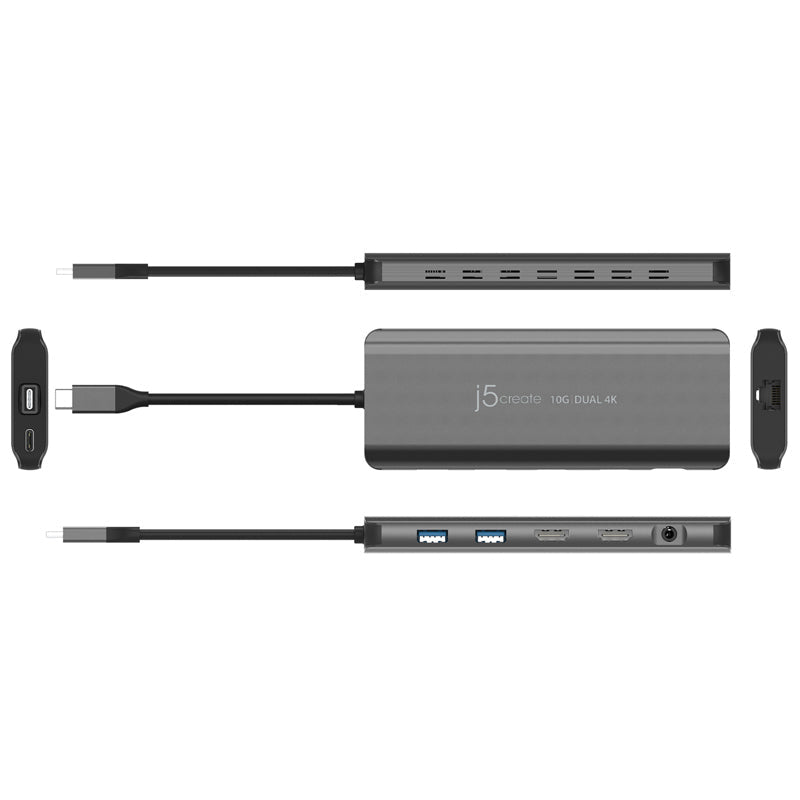

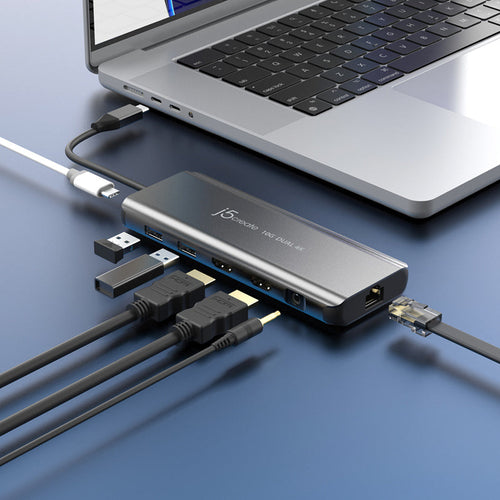

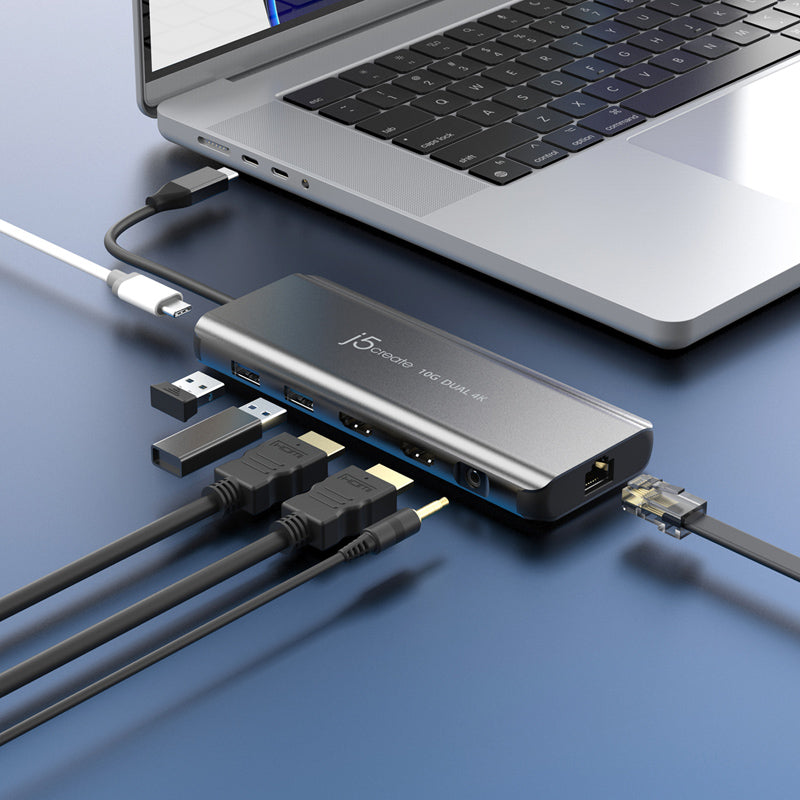

Ports
1 - HDMI™ 4K @ 60 Hz
1 - HDM™ 4K @ 30 Hz
2 - USB™ Type-A 3.2 Gen 2 (10Gbps)
1 - Combo 3.5mm Audio Jack
1 - RJ45 Gigabit Ethernet
1 - USB-C® PD-in with PD 3.0 up to 100W
PERFORMANCE
Maximum Display Resolution
Single DP™ Alt:
3840 x 2160 @ 60 Hz
2560 x 1440 @ 120 Hz
1920 x 1080 @ 144 Hz
Single USB™ Graphics:
3840 x 2160 @ 30 Hz
2560 x 1440 @ 60 Hz
1920 x 1080 @ 60 Hz
Dual Display:
3840 x 2160 @ 60 Hz via DP™ Alt
3840 x 2160 @ 30 Hz via USB™ Graphics
Maximum Data Transfer Rate 10Gbps
Displays Supported 2
Compatible Networks 10/100/1000 Mbps
Audio Channel 2.1 via HDMI™
POWER
Power Delivery Up to 100W via USB-C®
Power Consumption ≤ 700 mA
Input Current 5A
Input Voltage 20V
Output Current 4.5A
Output Voltage 20V
PHYSICAL SPECIFICATIONS
Color: Space Grey
Enclosure Type: Aluminum
Cable Length: 7.8 in. (198.12 mm)
Product Height: 0.58 in. (14.85 mm)
Product Width: 5.8 in. (147.25 mm)
Product Depth: 2.24 in. (56.98 mm)
Product Weight: 4.00 oz (113.5 g)
Storage Temperature: 14 to 140°F (-10 to 65°C)
Storage Humidity: < 85% non-condensing
Operating Temperature: 32 to 98°F (0 to 37°C)
Operating Humidity: < 85% non-condensing
SPECIAL NOTES
• Driver installation is required for macOS® and Windows®
. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
• The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device.
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port
to ensure maximum performance. When using the USB-C® power adapter, the multi-adapter powers both
the adapter (with attached peripherals) and your laptop.
PACKAGE CONTENTS
• 1 - JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
• 1 - Quick Installation Guide (QIG)
