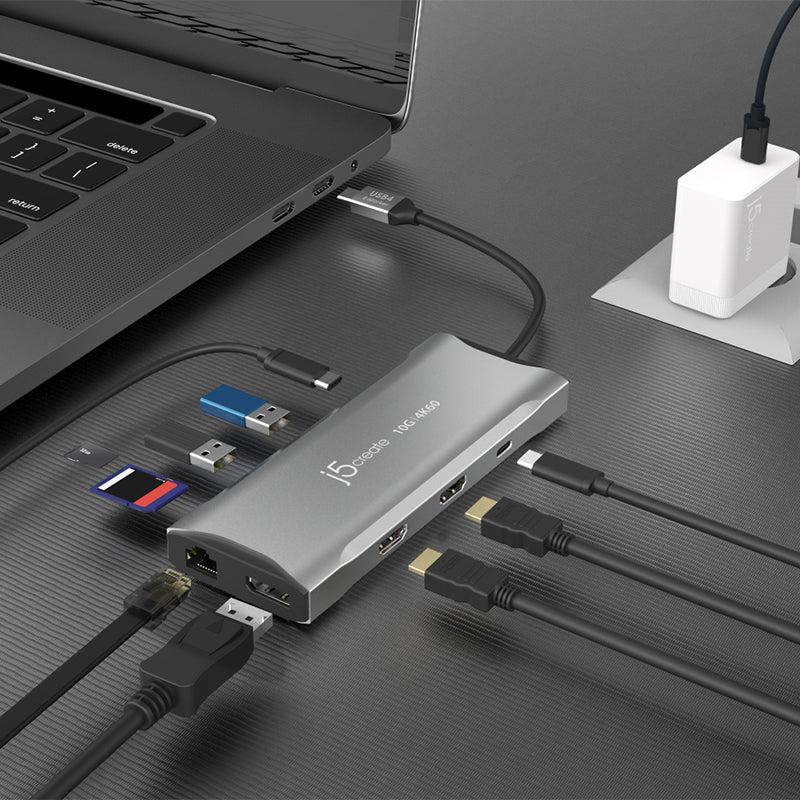

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.
This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
- Advanced USB-C® E-Mark chip integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backward compatible with USB™ 3.2/3.1
- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
- Charge and power connected laptop and peripherals with 100W Power Delivery
- SD™ & microSD™ 4.0 memory card reader/writer for media storage and transfer
- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required
- Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI™ or 1920 x 1080 @ 240 via DP™ Port to enjoy your gaming under Windows® OS.

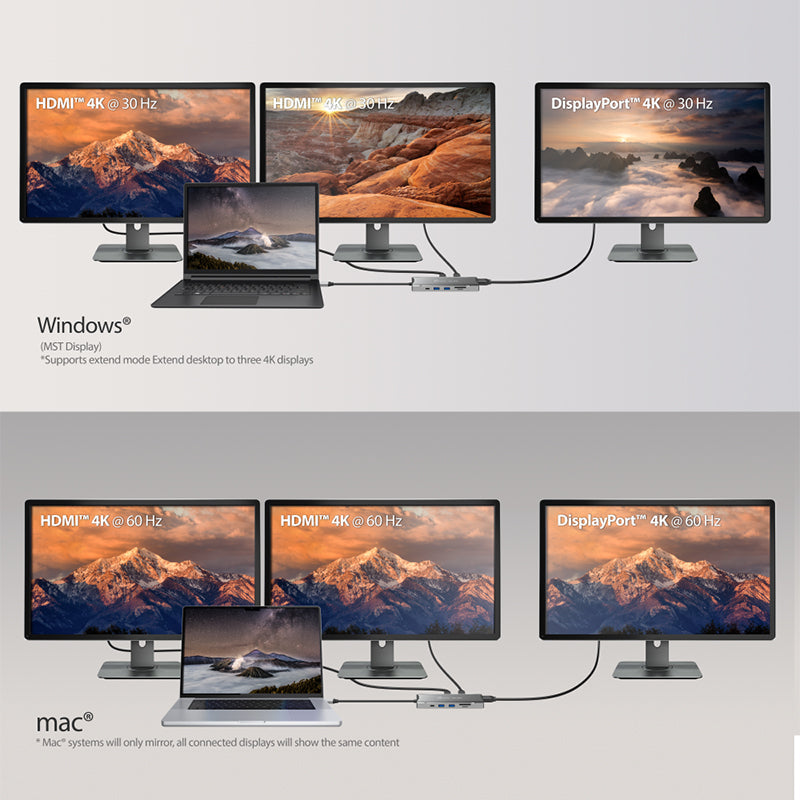

- Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI™ and 1 DisplayPort™) on compatible USB-C® laptops with DisplayPort™ 1.4 alt mode with MST support

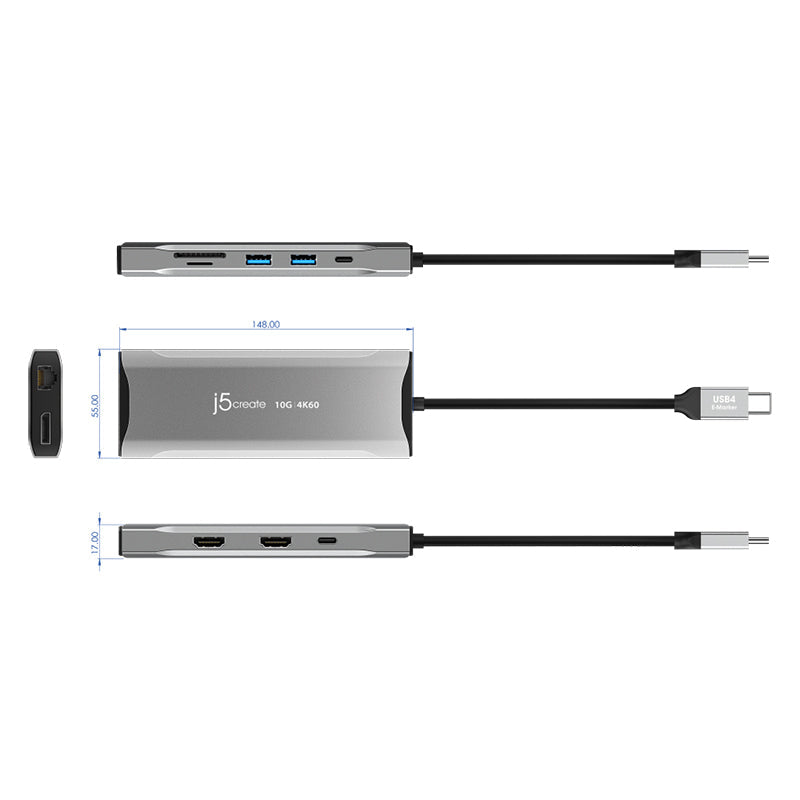

Hardware Audio SupportedYesHost Connector: 1 - USB-C® Male Network InterfaceRJ45 (Gigabit Ethernet)Ports: • 1 - USB-C® 10Gbps • 1 - USB-C® 5Gbps with Power Delivery 3.0 • 2 - USB™ Type-A 10Gbps • 1 - USB-C® Power Delivery 3.0 • 2 - 4K HDMI™ • 1 - DisplayPort™ • 1 - SD™ & microSD™ 4.0 memory card reader/writer • 1 - RJ45 Gigabit Ethernet Power Source : Bus-powered or self-powered Video Output: • 2 - HDMI™ Female • 1 - DisplayPort™ Female Warranty: 2 Year Limited Performance Audio Channel: l2.1 via HDMI™ Compatible Networks: 10/100/1000 Mbps Displays Supported: 3 Max Data Transfer Rate: 10 Gbps Max Display Refresh Rate (Windows® (MST)): - 3840 x 2160 @ 60 - 2560 x 1440 @ 144 via HDMI™ - 1920 x 1080 @ 240 via DP™ Max Display Resolution: 3840 x 2160 Power Input Current: Up to 5A Input Voltage: Up to 20V Output Current: Up to 4.25A Output Voltage: Up to 20V Power Consumption: ≤ 650 mA Power Delivery: Up to 100W via USB-C® Physical Specifications Cable Length: 7.87 in. (20 cm) Colour: Space Grey Enclosure Type: Aluminum Operating Humidity: < 85% non-condensing Operating Temperature: 30 to 116°F (-1 to 41°C) Product Depth: 0.67 in. (17 mm) Product Height: 5.8 in. (148 mm) Product Weight: 4.36 oz (123.5g) Product Width: 2.17 in. (55 mm) Storage Humidity: < 85% non-condensing Storage Temperature: 0 to 155°F (-17 to 68°C) System Requirements • Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your computer for more information about your device • The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve a triple-monitor configuration • The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz, main DisplayPort™ 1.4 devices are listed as follows: |
- MacBook Air® 13" 2019 or later |
Package Contents:
• 1 - JCD397 4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock
• 1 - Quick Installation Guide (QIG)
