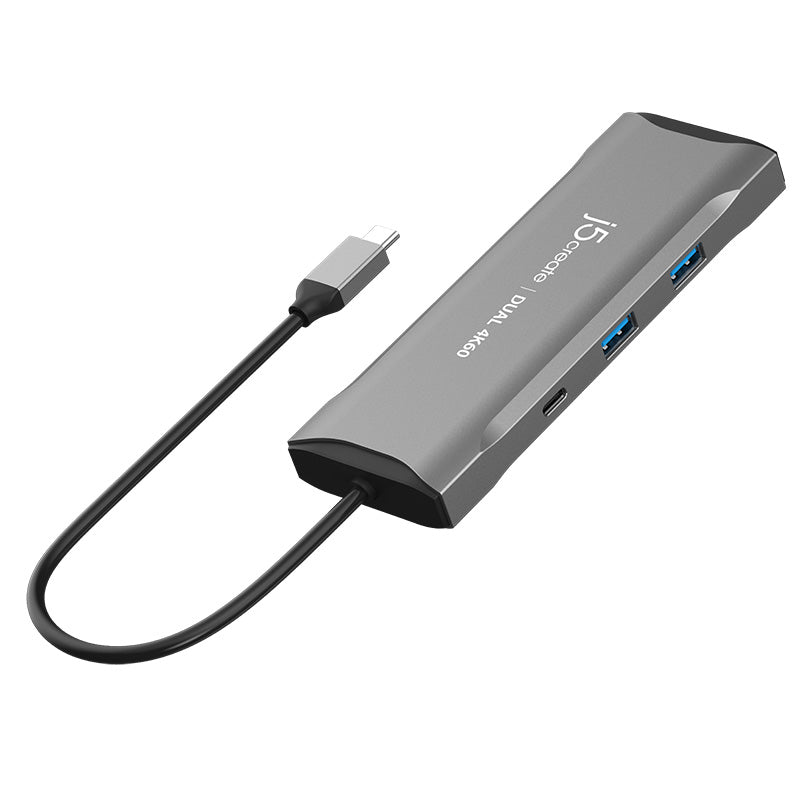

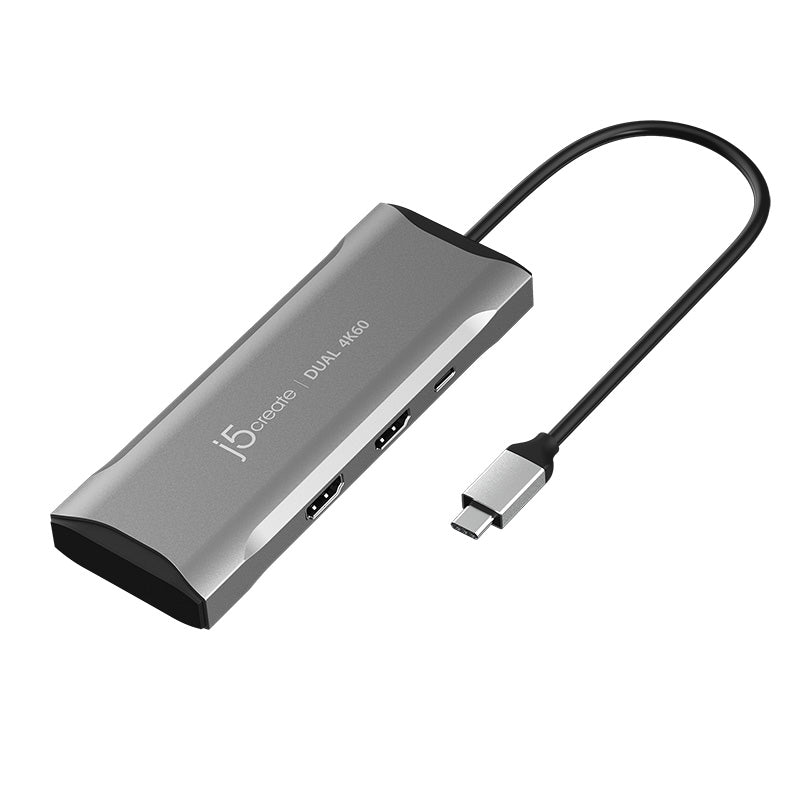

Featuring all the ports you need, the USB-C® Dual 4K60 Mini Dock. This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual 4K workstation with two HDMI™ outputs. It includes three USB™ SuperSpeed 5Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging.

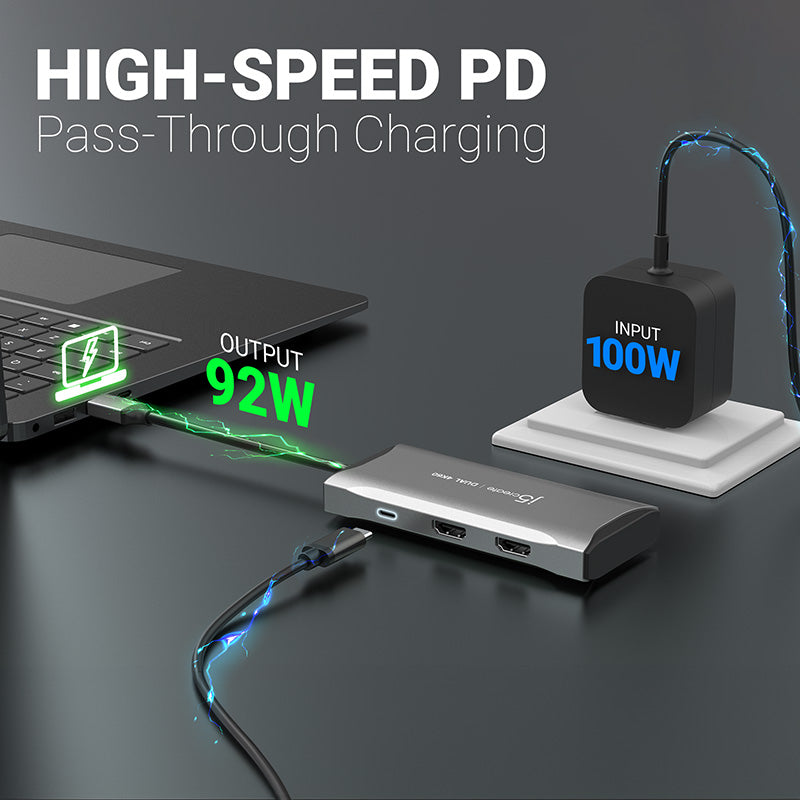

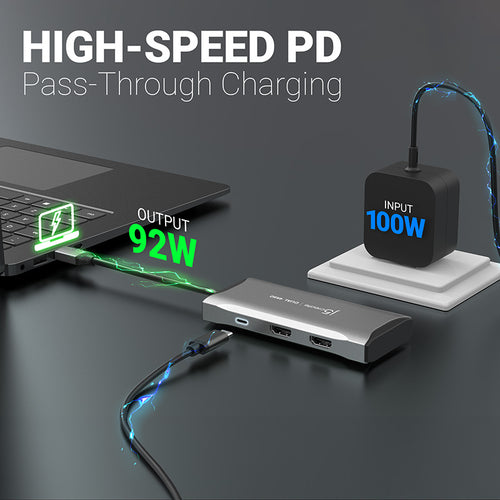

It also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.
- Features Dual 4K HDMI™ outputs, supporting video resolutions up to 3840 x 2160 at 60 Hz.
- Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate.
- Extend one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS.

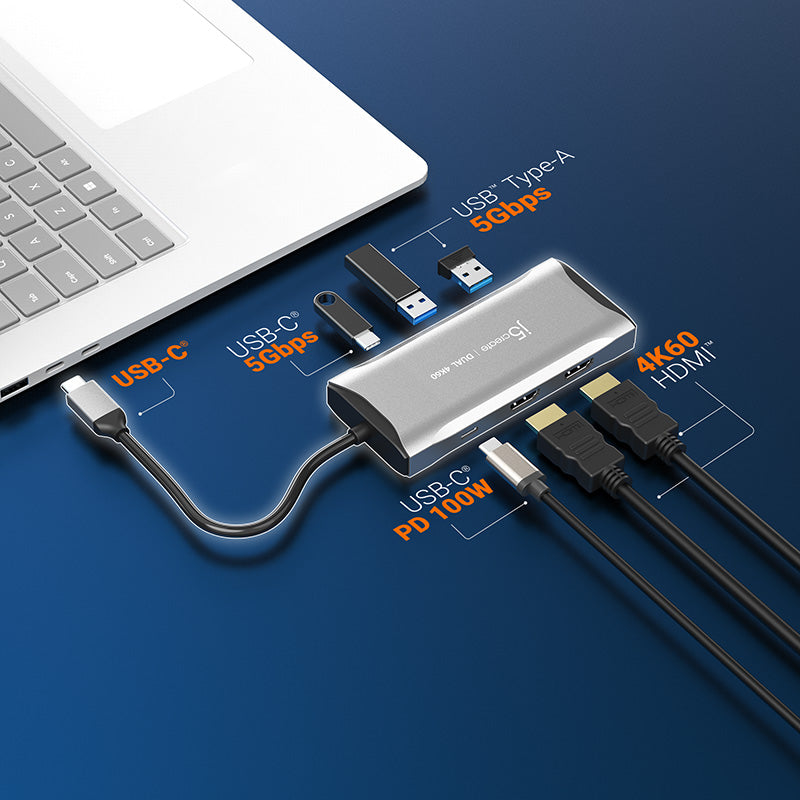

- Three SuperSpeed USB™ 5Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals.
- Charge and power a connected laptop and peripherals with 100W Power Delivery.
- Plug-and-play, no driver installation required.
- Supports dual 4K60 HDMI™ on compatible USB-C® laptops with DisplayPort™ 1.4 alt mode with MST support*.
Hardware
Audio supportedYeshost connector
1 - USB-C® Male
Network interfaceN/Aports
1 - USB-C® SuperSpeed 5Gbps
2 - USB™ Type-A SuperSpeed 5Gbps
1- USB-C® Power Delivery 3.0
2 - 4K HDMI™
Power source
Bus-powered or self-powered
Video output
2 - HDMI™ Female
Warranty
2 Year Limited
Performance
Audio channel
2.1 via HDMI™
compatible networks
N/A
Displays supported
2
Max data transfer rate
5 Gbps
Max display refresh rate
Windows® (MST)
3840 x 2160 @ 60 Hz
2560 x 1440 @ 120 Hz
1920 x 1080 @ 144 Hz
Max display resolution
3840 x 2160 @ 60 Hz
Power
Input current
Up to 5A
Input voltage
Up to 20V
Output current
Up to 4.6A
Output voltage
Up to 20V
Power consumption
≤ 400 mA
Power delivery
Up to 100W via USB-C®
Physical Specifications
Cable length
200 mm
Color
Space Grey
Enclosure type
Aluminum
Operating humidity
< 85% non-condensing
Operating temperature
-1 to 41°C
Product depth
50 mm
Product height
16 mm
Product width
138 mm
Product weight
107g
Storage humidity
< 85% non-condensing
Storage temperature
-17 to 68°C
1 - JCD396 USB-C® HDMI™ Dual 4K60 Mini Dock
1 - Quick Installation Guide (QIG)
