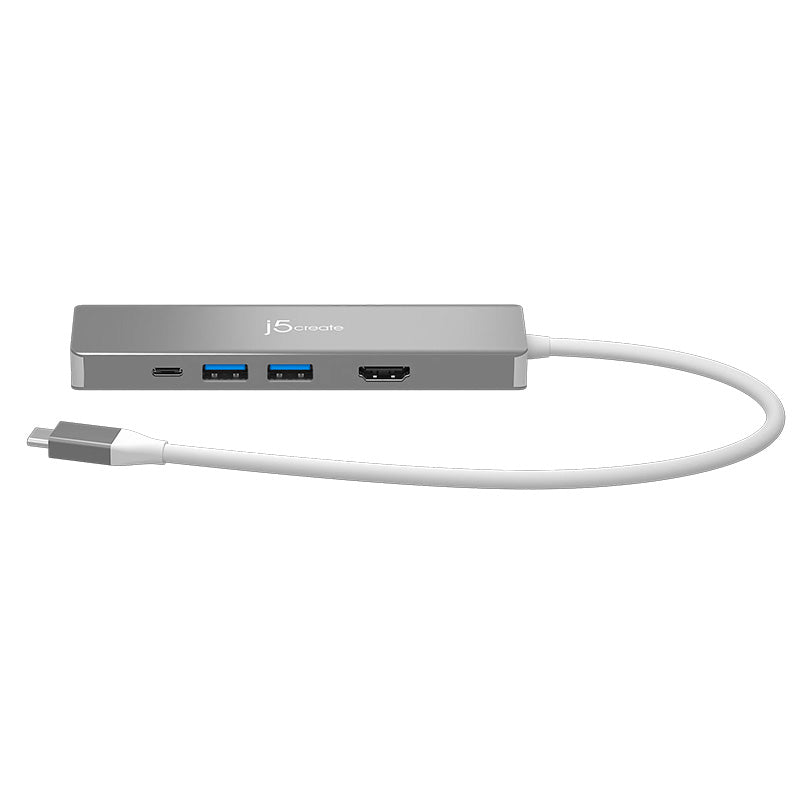

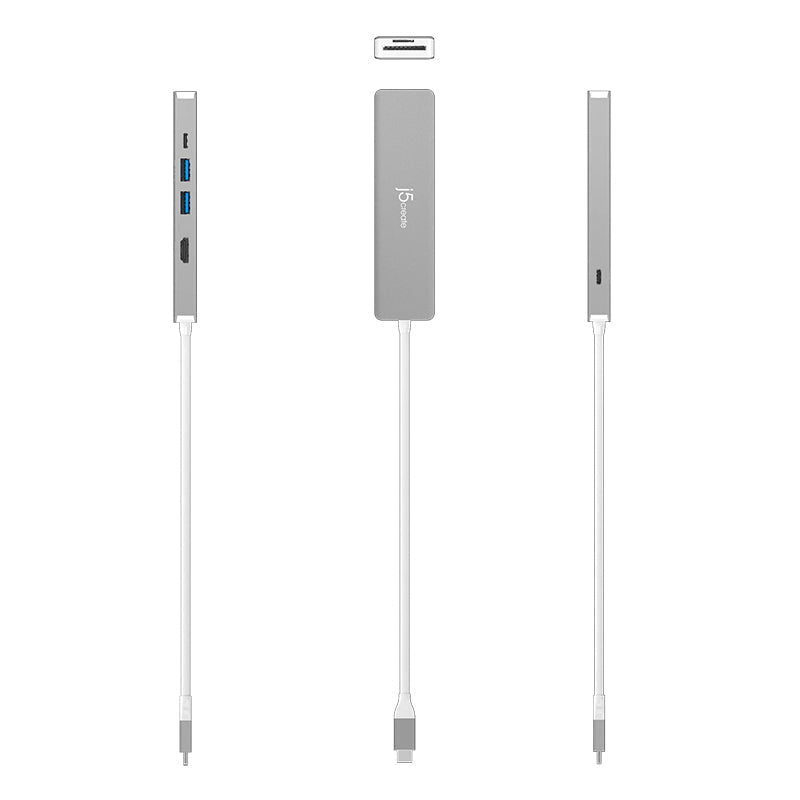

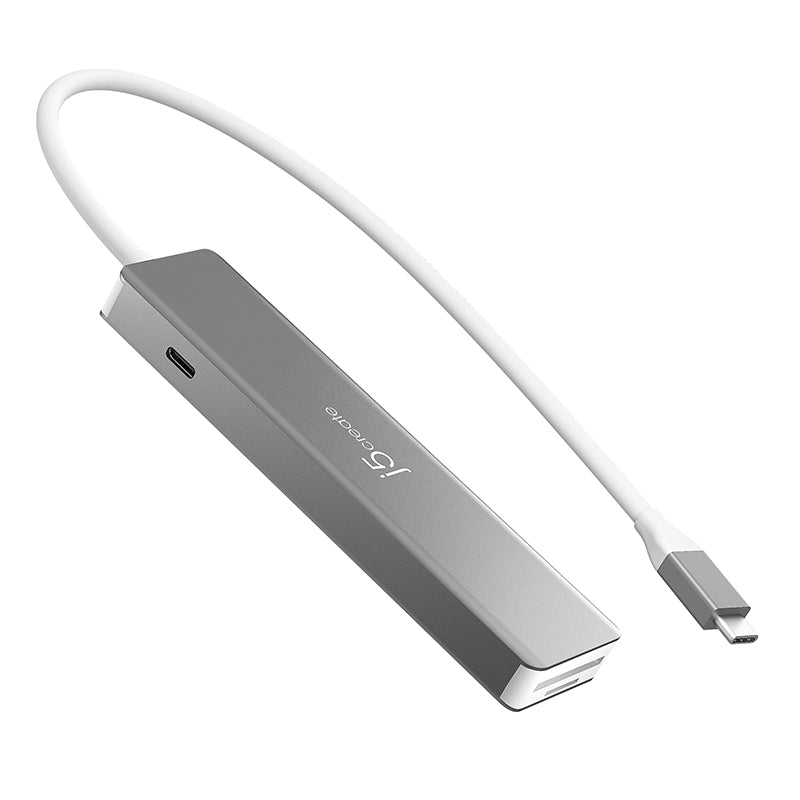

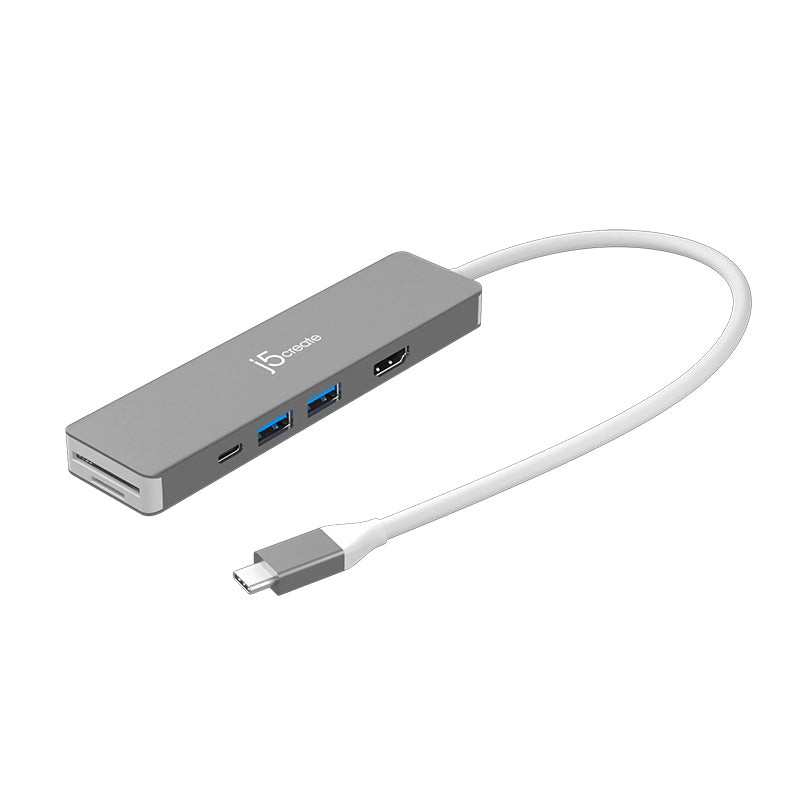

The 4K Elite USB-C® Multi-Adapter provides extra connectivity for your computer; featuring video, data storage, and charging all in one. The multi-adapter’s small size makes it easy to carry helps save desk space. The HDMI™ port allows you to connect to a 4K monitor or TV. With USB 3.2 Gen 2 support transferring files quickly and connecting USB™ peripherals is a breeze. The adapter also includes an SD™ and microSD™ card slot for added storage flexibility. This is a plug-and-play device that does not require driver installation so you can use it right away!
The main body include 7 functions
- 1 x HDMI™ with resolutions up to 4K @ 60 Hz
- 2 x USB™ Type-A 3.2 Gen 2 ports support 10Gbps
- 1 x USB-C® 3.2 Gen 2 port supports 10Gbps
- 1 x USB-C® PD-in with power delivery 3.0 up to 100W
- 1 x SD™ 3.0 card reader & writer UHS-I 104 MB/s
- 1 x microSD™ 3.0 card reader & writer UHS-I 104 MB/s
Upgrade your transfer speed: USB™ 3.2 Gen 2, 10Gbps and SD™ / microSD™ 3.0 UHS- I 104MB/s
Hardware
Audio Supported
Yes
Host Connector
1 - USB-C® Male (PD 3.0 100W)
Ports
1 - HDMI™ 4K @ 60 Hz
1 - USB-C® 3.2 Gen 2 10Gbps
2 - USB™ Type-A 3.2 Gen 2 10Gbps
1 - USB-C® PD-in with PD 3.0 up to 100W
1 - SD™ 3.0 card reader UHS-I 104 MB/s
1 - microSD™ 3.0 card reader UHS-I 104 MB/s
Power Source
Bus-powered or self-powered
Video Output
1 - HDMI™ Female
Warranty
2 Year Limited
Performance
Audio Channel
2.1 via HDMI™
Displays Supported
1
Max Data Transfer Rate
10Gbps
Max Display Refresh Rate
60 Hz
1920 x 1080 @ 144Hz
Max Display Resolution
3840 x 2160
Power
Input Current
Up to 5A
Input Voltage
Up to 20V
Output Current
Up to 4.25A
Output Voltage
Up to 20V
Power Consumption
≤ 400 mA
Power Delivery
Up to 100W via USB-C®
Physical Specifications
Cable Length
200 mm
Color
Silver / White
Enclosure Type
Aluminum, ABS Plastic
Operating Humidity
< 85% non-condensing
Operating Temperature
-1 to 41°C
Product Depth
12.2 mm
Product Height
126.5 mm
Product Width
32.6 mm
Product Weight
70.5 g
Storage Humidity
< 85% non-condensing
Storage Temperature
-17 to 68°C
Package Contents
1 - JCD390 4K Elite USB-C® Multi-Adapter
1 - Quick Installation Guide (QIG)
