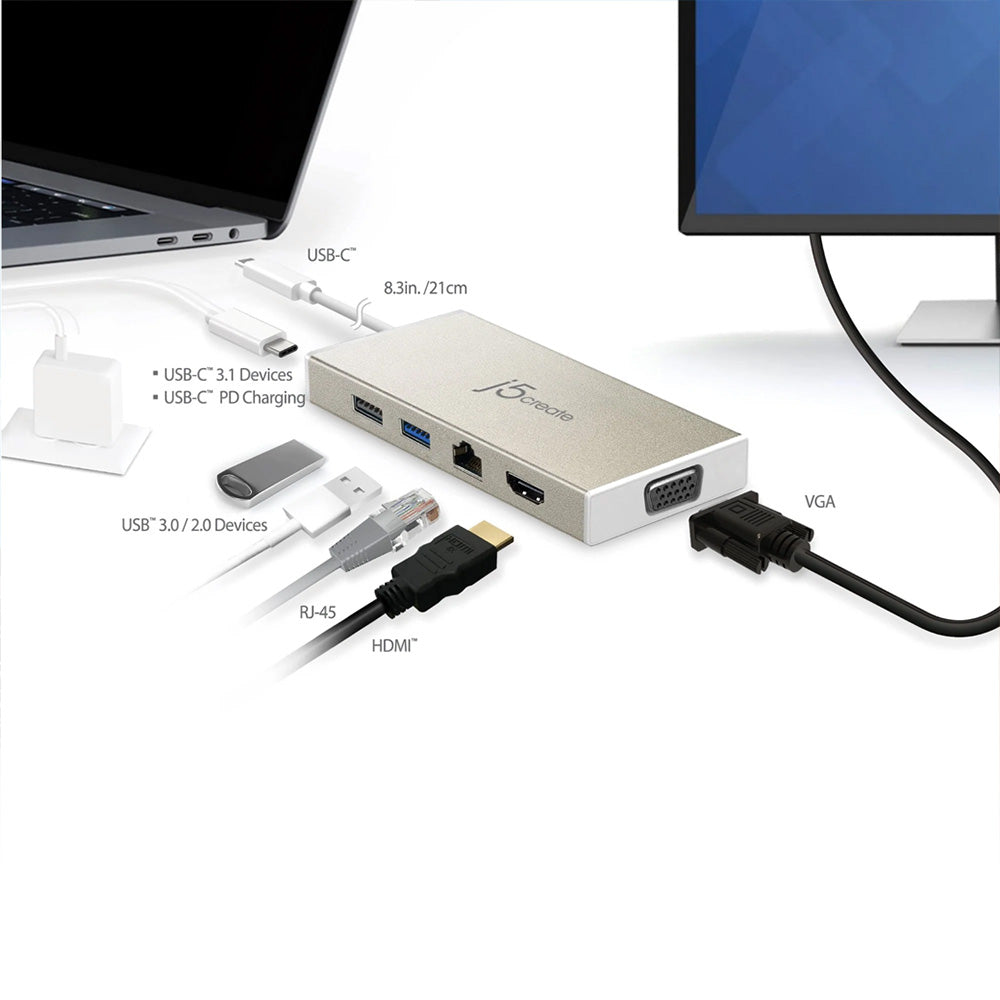

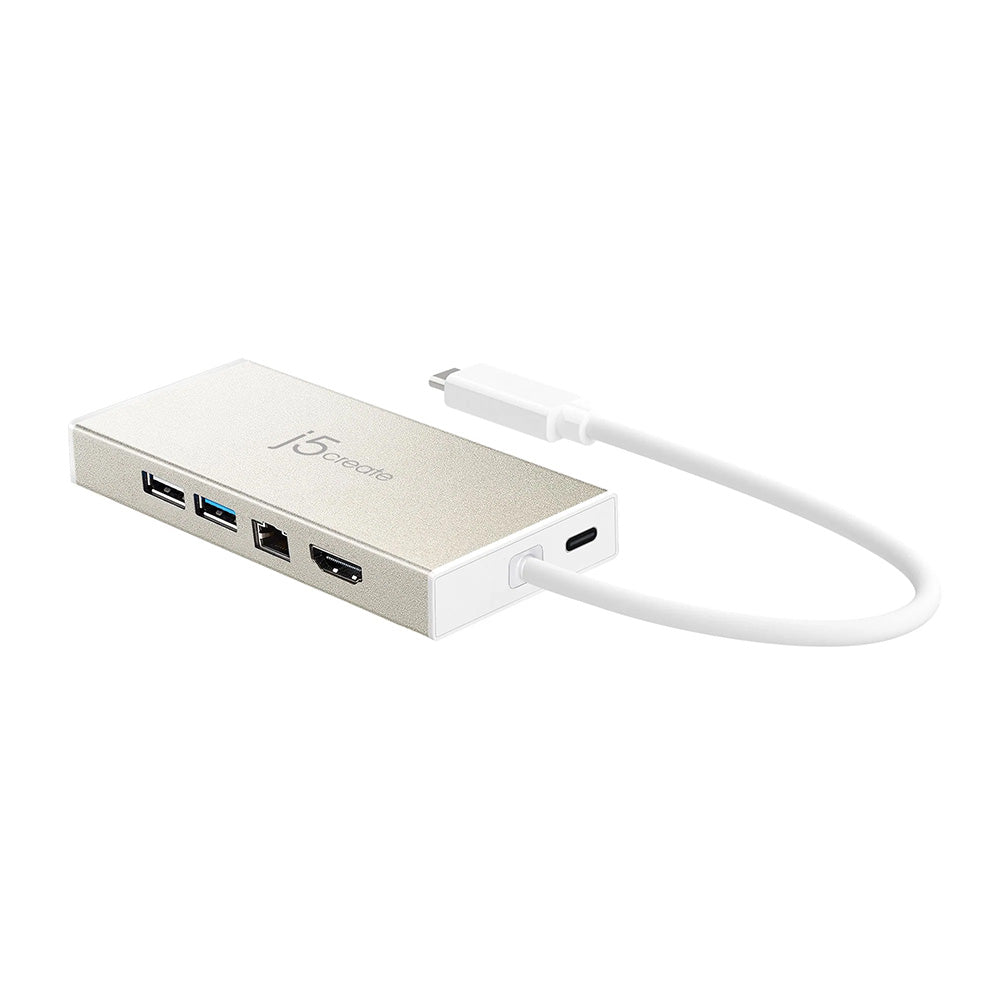

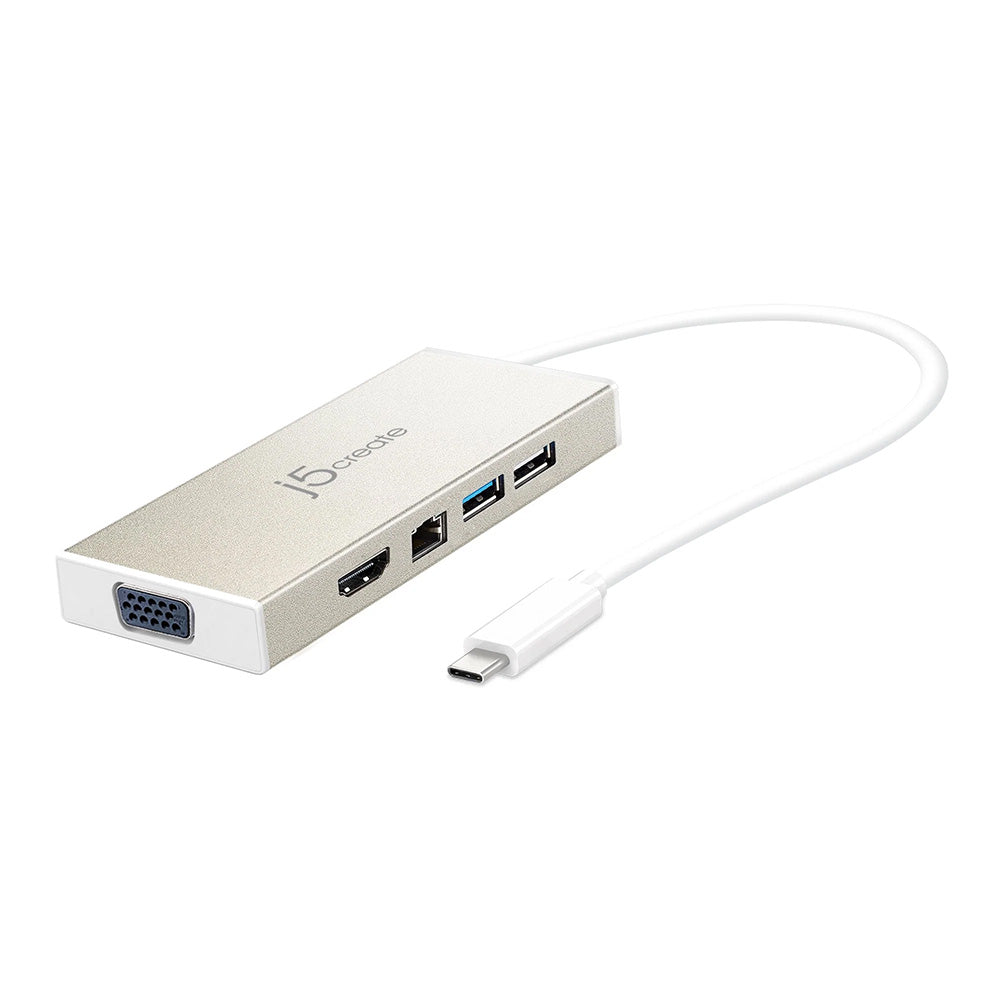

This USB-C™ 3.1 mini docking station converts your laptop’s USB-C™ port into six individual ports, allowing you to create a workstation when you are on the move! Now you can leave those single-function adapters at home.

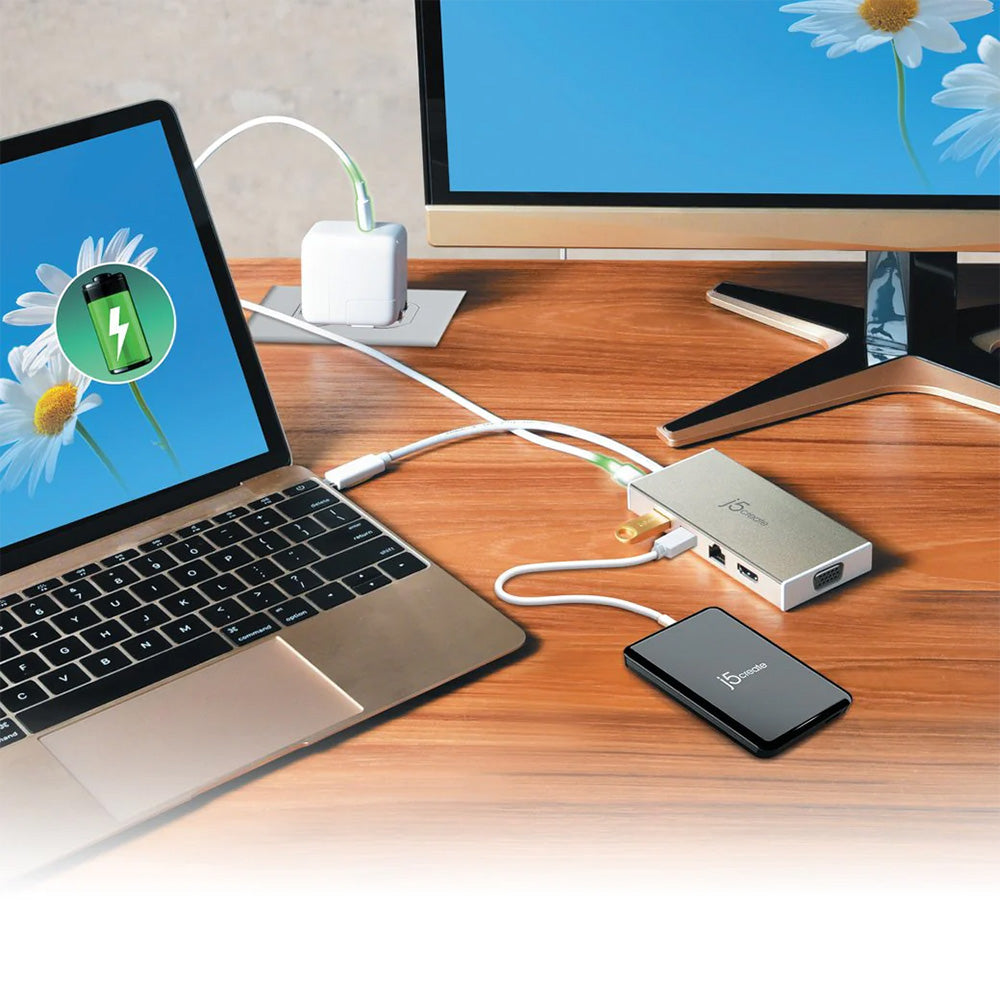

The mini dock features an HDMI™ and VGA port so you can easily connect a 4K HDMI™ or a 1080p VGA monitor. It also adds wired network connectivity with an ethernet port and two USB™ Type-A ports for additional peripherals. With USB™ Power Delivery 2.0, you can power and charge your laptop while using the mini dock by simply connecting a USB-C™ power adapter to the USB-C™ power delivery port.
The JCD376 is perfect for small workspaces, home offices and for on-the-go!
- Easily add a 4K HDMI™ or VGA video output
- Reliable network connectivity via the Gigabit Ethernet port
- USB-C™ power delivery 2.0 provides charging power to the connected devices
- USB™ 3.1 Gen 1 provides up to 5 Gbps transfer rate, which is 10x faster than USB™ 2.0
- Plug-and-play, no driver installation is required
Interface
Host Interface
USB 3.0 Type-C male Type-C Connector
Video Interface
HDMI Female Connector x 1
VGA-DB 15 pin Female Connector x 1
Type-C Port
USB Type-C female connector
Ethernet Port
RJ-45 female connector(gigabit Ethernet)
USB Port
USB 3.1 type-A female connector x 1
USB 2.0 type-A female connector x 1
Power
Power Mode
Bus-powered or self-powered
Function
HDMI
VGA
Display resolution: 4K @ 30 Hz
Display resolution: 1920 x 1200 @ 60 Hz
Type-C
Upstream & downstream: charging, power delivery 2.0 and data transfer
USB
USB 3.1 Gen1 5 Gbps
USB 2.0 480 Mbps
Ethernet
Transfer rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and
802.3ab,IEEE 802.3x
Modes:
-Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft
wakeup frame
- Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
- Supports Jumbo Frame - Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Physical Specifications
Dimensions
Main body: 2.1 (W) x 4.5 (H) x 0.6 (D) inch
5.33 (W) x 11.5 (H) x 1.52 (D) cm
Cable length: 8.3 inch (21 cm)
Weight
Approximately 0.2 lbs (0.095 kg )
(including cable)
SYSTEM REQUIREMENTS
?Available USB type-C port (USB 3.1 is recommended)
?Available DisplayPort alt mode over USB type-C port
?Available USB power delivery 2.0 over USB type-C to support upstream charging
?HDMI: DisplayPort v1.2 required on graphics card or video source to support 4K @ 30 Hz resolution
?VGA: DisplayPort v1.1a required on graphics card to support 1920 x 1200 @ 60 Hz
NOTE:
? If you are using a high-powered USB device please attach the type-C power adapter to the
JCD376 power delivery port to ensure maximum performance
?To ensure files copy completely, do not remove the type-C power adapter while copying files
PACKAGE CONTENTS
?USB 3.1 type-C fully functional mini dock (JCD376)
?Quick installation guide
