Add more high-speed ports to your computer with this USB-C® 3.2 Gen 1 multi-adapter, offering a 4K HDMI™ video output, two USB™ 3.2 Gen 1 Type-A ports, and SD™ / microSD™ 3.0 UHS-I card reader/writer.
Supports USB™ 3.2 Gen 1 providing up to 5Gbps data transfer speeds and charging, this multi-adapter can support your high-performance computers such as the MacBook Pro® while still being compatible with other USB-C® devices.

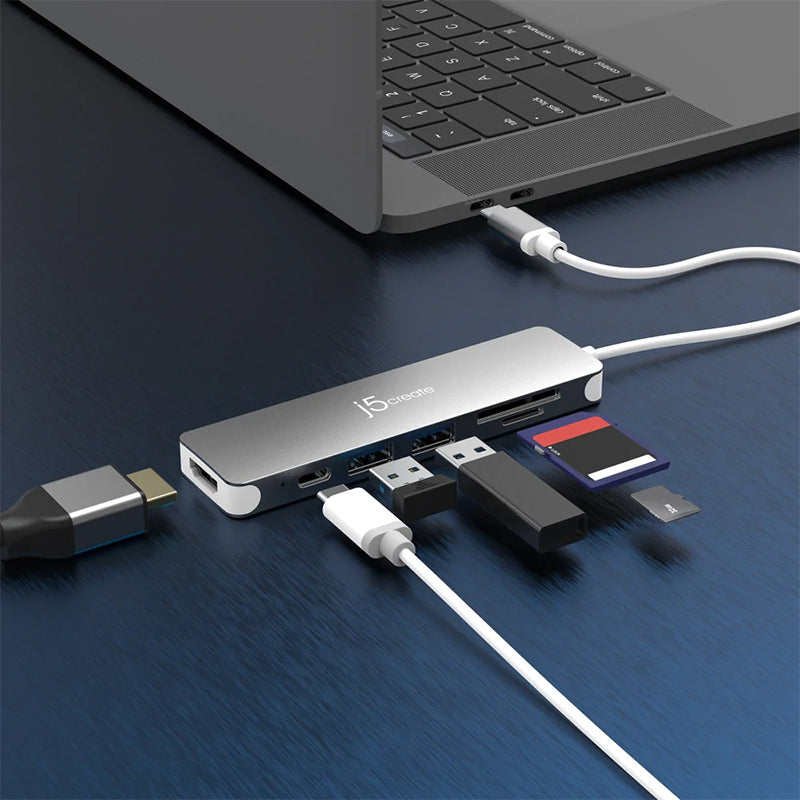

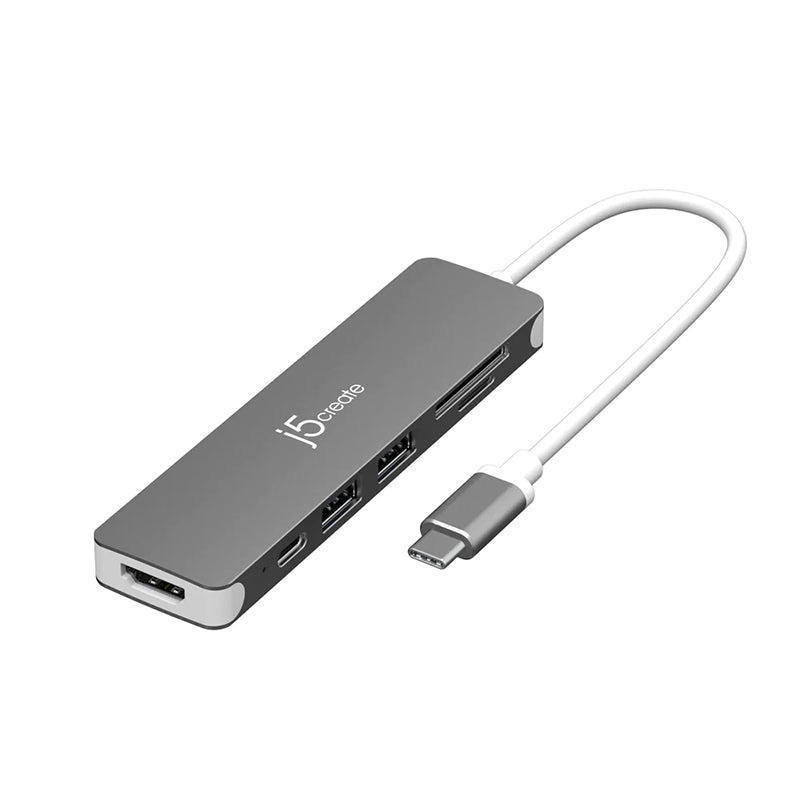

The USB-C® to 4K HDMI™ Multi-Port Hub combines all the essential ports into a compact and lightweight hub, making it perfect for people who are always on the move!
Features
• Supports HDMI™ resolutions up to 4K
• Two USB™ 3.2 Gen 1 ports provide up to 5Gbps transfer speed
• Power delivery 3.0 provides up to 100W of pass-through charging
• Backwards compatibility with USB 3.0 hosts and devices
• Memory card reader/writer slots allow for external memory access up to 2 TB, supporting SD™ 3.0 UHS-I with data transfer speeds up to 104 MB/s
• Plug-and-play, no driver installation required
Hardware
Warranty
2 Year Limited
Host Connector
1 - USB-C® Male
Video Output
1 - HDMI™ Female
Power Source
Bus-powered
Network Interface
N/A
Audio Supported
N/A
Ports
1 - 4K HDMI™
1 - USB-C® Power Delivery 100W
2 - USB™ Type-A 3.2 Gen 1
1 - SD™/ microSD™ 3.0 UHS-I
Performance
Maximum Display Resolution
3840 x 2160 @ 30 Hz
Maximum Display Refresh Rate
1920 x 1080 @ 60 Hz
Maximum Data Transfer Rate
5 Gbps
Maximum Displays Supported
1
Compatible Networks
N/A
Audio Channel
2.1 via HDMI™
Power
Power Delivery
Up to 100W via USB-C®
Power Consumption
≤ 500 mA
Physical Specifications
Colour
Silver
Enclosure Type
Aluminium, ABS Plastic
Cable Length
5.9 in. (150 mm)
Product Height
4.42 in. (112.20 mm)
Product Width
1.17 in. (29.80 mm)
Product Depth
0.41 in. (10.41 mm)
Product Weight
1.69 oz (48g)
Storage Temperature
0 to 155°F (-17 to 68°C)
Storage Humidity
< 85% non-condensing
Operating Temperature
30 to 106°F (-1 to 41°C)
Operating Humidity
< 85% non-condensing
System Requirements
• Available DisplayPort™ Alt Mode over USB-C® port
• Available USB™ power delivery over USB-C® to support upstream charging
Special Notes
• A 4K-capable display is required for obtaining the 3840 x 2160 resolution
• The adapter can connect to a USB™ 3.2 Gen 1 or USB™ 3.0 port that supports DisplayPort™ Alt mode while providing up to 5Gbps transfer rates
1 - JCD353 USB-C® to 4K HDMI™ Multi-Port Hub
1 - Quick Installation Guide (QIG)
