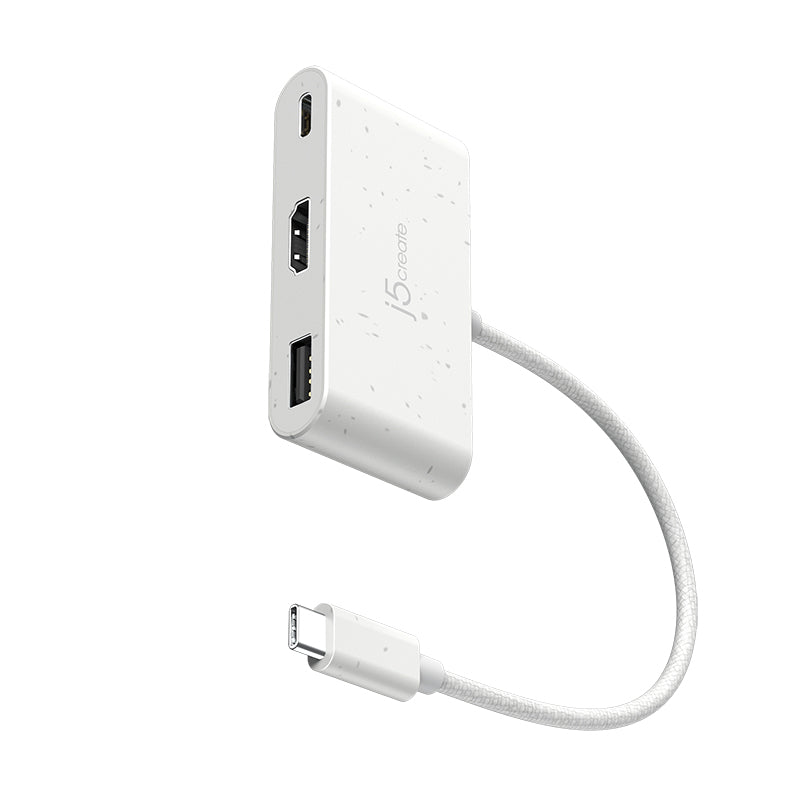

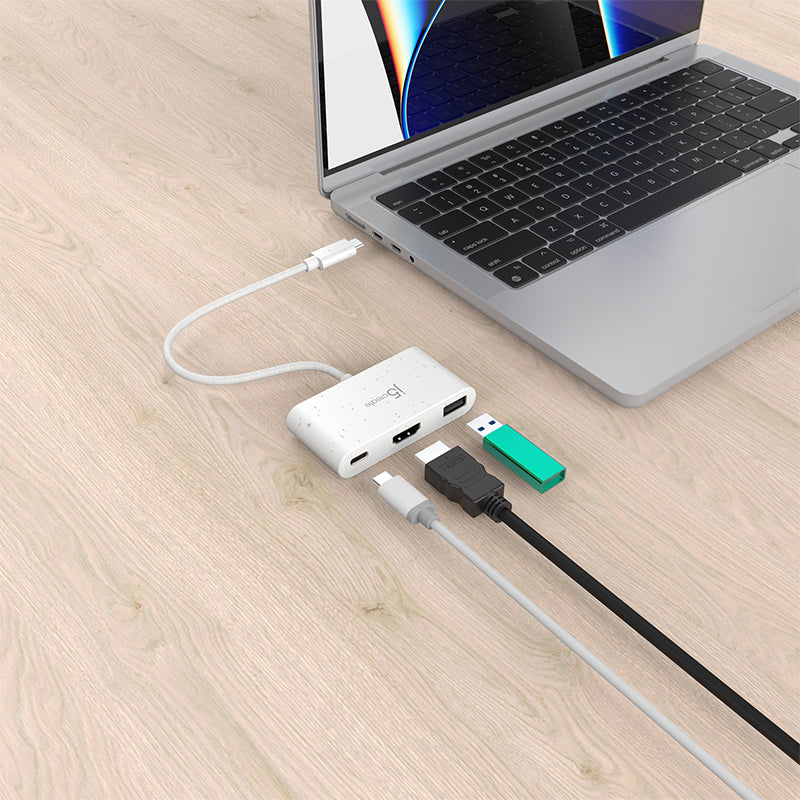

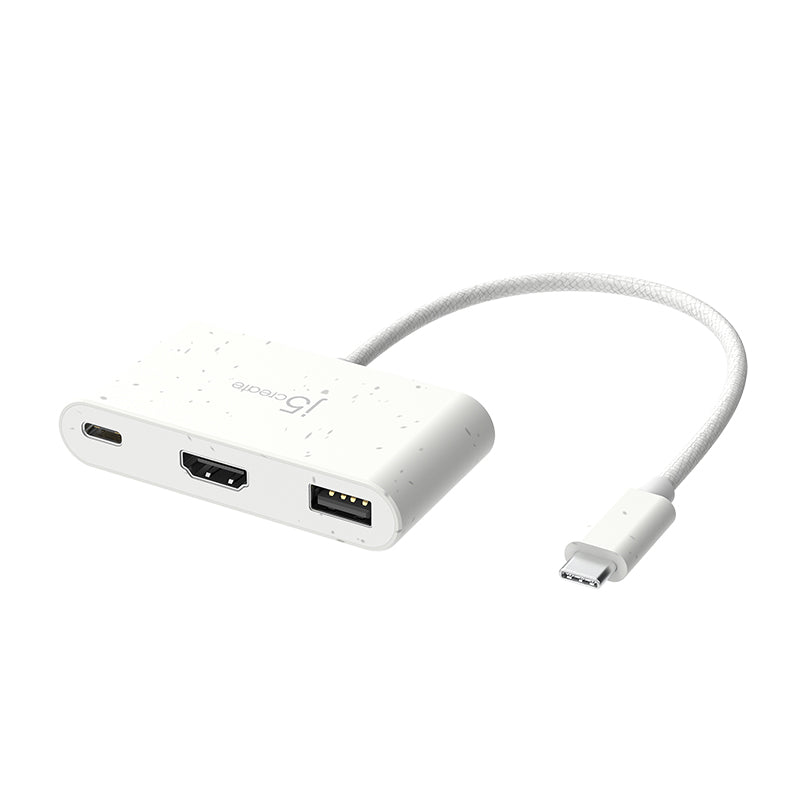

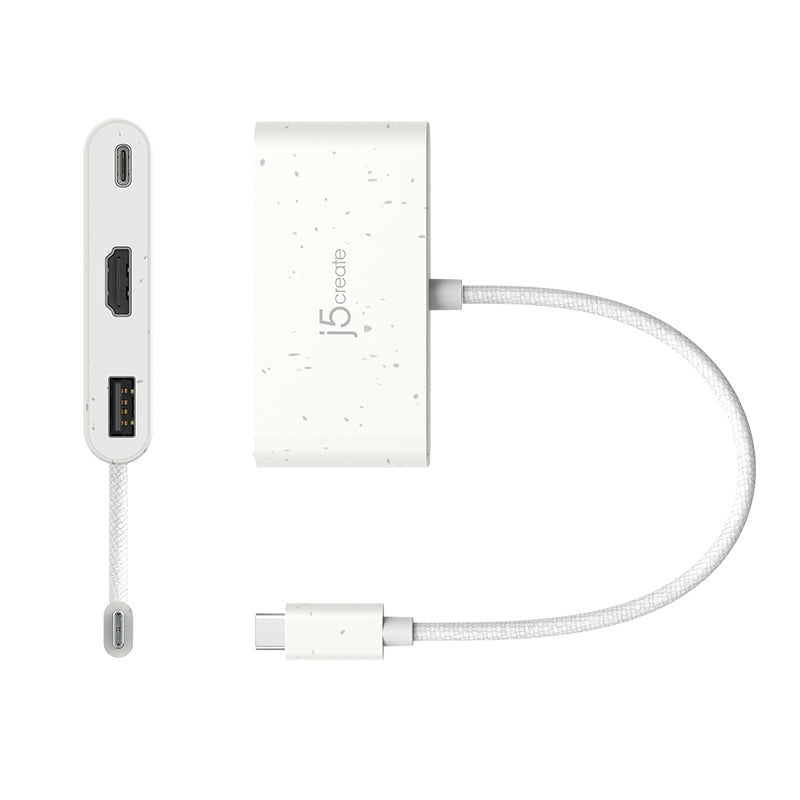

Add extra functionality to your laptop with the JCA379E Eco-Friendly USB-C® to HDMI™ & USB™ Type-A with Power Delivery.
This device allows you to add an additional USB™ Type-A, HDMI™ monitor, and USB-C® that can be charged through your USB-C® port. The USB™ Type-A SuperSpeed port gives you data transfer rates up to 5Gbps.
The HDMI™ port supports resolutions up to 4K. Equipped with a USB-C® Power Delivery 3.0 charging port, it offers charging up to 100W when connected to a USB-C® power adapter.
• Eco-friendly, made with recycled material
• Plug and play – No software or drivers required
• Power delivery passthrough provides can provide up to 100W to your computer
• USB™ Type A 3.2 Gen 1, Data transfer rates up to 5Gbps
• Hot-swappable, connect or disconnect without powering down
• DisplayPort™ Alt Mode for HDMI™
Hardware
Warranty
2 Year Limited
Host Connector
USB-C®
Video Output
HDMI™
Power Source
Bus-Powered, Self-powered
Audio Supported
Yes
USB™ Pass-Through
Yes
Ports
1 - USB-C® PD 3.0
1 - 4K HDMI™ Female
1 - USB™ Type-A 5Gbps
Performance
Maximum Data Transfer Rate
5Gbps
Maximum Display Resolution
3840 x 2160
Maximum Display Refresh Rate
30 Hz
Displays Supported
1
Audio Channel
HDMI™ 2.1
Power
Power Delivery
Up to 100W via USB-C®
Power Consumption
≤ 350 mA
PD Input Current
Up to 20V
PD Input Voltage
UP to 5A
PD Output Current
UP to 20V
PD Output Voltage
UP to 4.5A
Physical Specifications
Color
White/ Rose/ Cyan
Cable Length
20 cm
Enclosure Type
ABS Plastic
Product Height
75.4 mm
Product Width
37.8 mm
Product Depth
15.2 mm
Product Weight
40.8g
Storage Temperature
14 to 140°F (-10 to 65°C)
Storage Humidity
< 85% non-condensing
Operating Temperature
32 to 118°F (0 to 47°C)
Operating Humidity
< 85% non-condensing
Package Contents
• 1 - JCA379E Eco-Friendly USB-C® to HDMI™ & USB™ Type-A with Power Delivery
• 1 - Quick Installation Guide (QIG)
