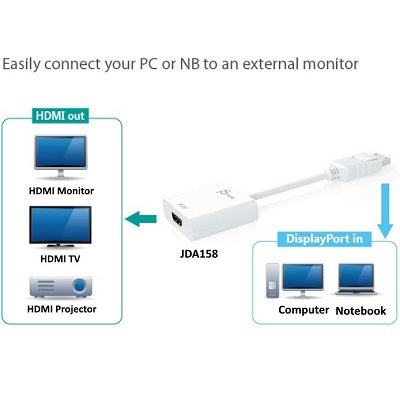

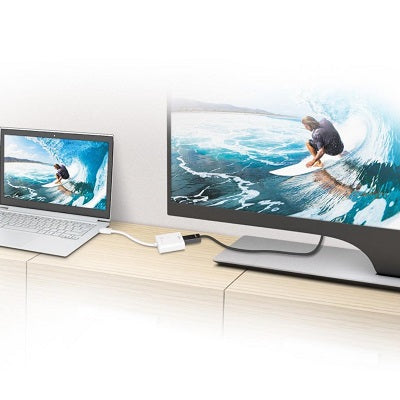

The j5create’s DisplayPort to 4K HDMI Active Adapter JDA158 allows you to quickly and easily connect your DisplayPort supported Mac or PC to a 4K HDTV or other display device using an HDMI input.
Simply connect the DisplayPort end of the connector to your computer and plug your existing HDMI cable from the display into the adapter. The adapter seamlessly converts the DisplayPort video signal into an HDMI signal for a fast plug-and-play setup. Fully DisplayPort 1.2 compliant, also compatible with DisplayPort 1.1.
Features
- Easy to use cable.
- No software required.
- Active DisplayPort conversion.
- Compliant to DisplayPort v1.2.
- Compliant with HDMI v2.0 specifications- up to 3 Gbp/s.
- Supports resolutions up to 4K Ultra HD (4096 x 2160@60Hz) and 3D video formats over HDMI.
- Supports Audio.
- Features are subject to the capabilities of the computer and graphics card solution.
Interface Specifications
- Host Interface: DisplayPort Male Connector.
- Video & Audio Interface: HDMI Female Connector.
- Converter Type: Active.
Physical Specifications
- Housing Material: Plastic.
- Dimensions (Main body): 17.7(W)x 17.7(H)x 5.9(D) inch / 45(W)x45(H)x15(D) mm.
- Cable length: 6.3inch (160 mm).
- Weight: Approximately 0.04 pounds (17.5 g).
System requirements
- Available DisplayPort 1.2
- DisplayPort 1.1a would output only 2560 x 1200 maximum resolution
Environments
DisplayPort v1.2 required on graphics card or video source to support 4K x 2K@ 60Hz resolution.
Monitor need support HDMI 2.0 specifications to support 4K x 2K@ 60Hz resolution.
Package Contents
- j5create HDMI DisplayPort 4K ACTIVE Adapter JDA158.
- Quick Installation Guide.
