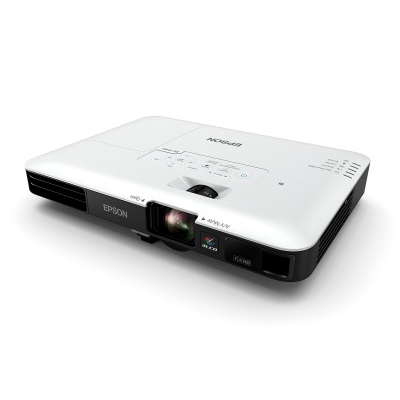

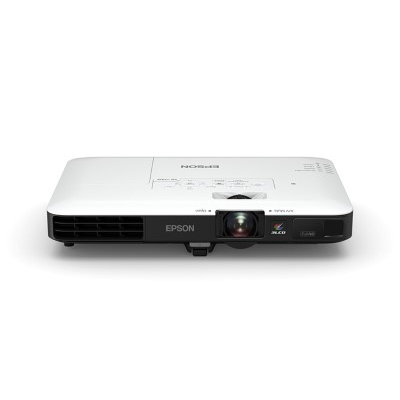

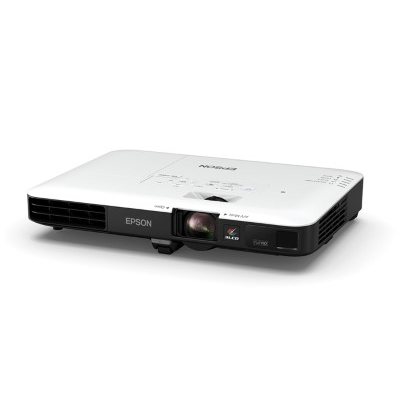

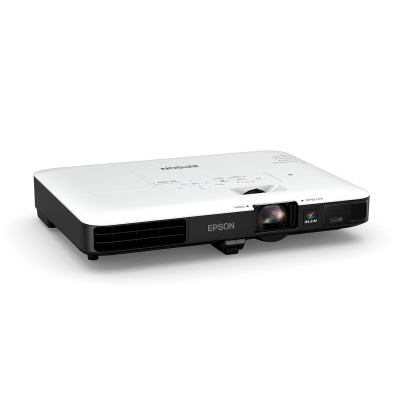

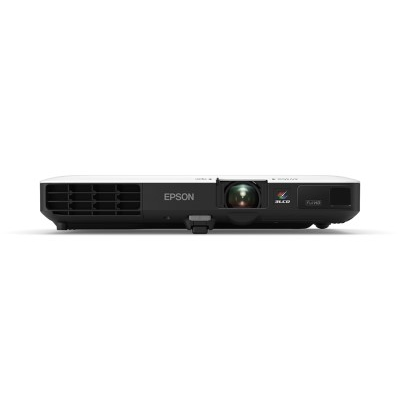

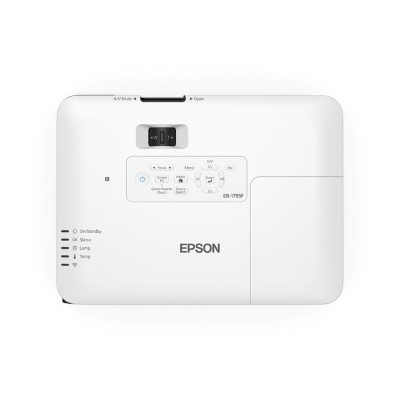

The Epson EB-1795F packs superior imaging quality along with a suite of connectivity and usability features into
a body weighing only 1.83kg and 44mm slim. Wirelessly connect your smart devices to the projector via Wi-Fi,
Miracast, iProjection application or NFC technology. The EB-1795F comes with Gesture Presenter technology,
which allows you to transit between slides without a clicker. Lastly, with Epson's 3LCD technology that delivers
up to 3 times wider colour gamut and brightness, you can astound audiences anywhere you go.
White Light Output 3,200 lumens, Colour Light Output 3,200 lumens
Full HD Resolution
Real-Time Auto Keystone Correction
Split Screen Projection
Hassle-Free Presentation with USB 3-in-1 Display Feature and Epson iProjection
Red Dot Design Award
Ultra Portability
The world's slimmest, ultra-portable, 3LCD projector is engineered with convenience in mind. Weighing at most
1.83kg and 44mm thick (excluding the feet), the EB-1795F make mobile presentations easy and hassle free,
With up to 3,200 lumens colour and white light output, you can enjoy bright and vibrant images indoors and outdoors.
The EB-1795F is designed with three grip lines at the edges, making them easier and safer to transport. With the
projector small footprint, you can carry the projector in a laptop bag to deliver impactful presentations on the move.
Seamless Connectivity and Usability
Ease-of-Presentations with Gesture Presenter
Users can control their presentations conveniently by moving their hands to a white floating marker at the bottom
right side of the projection screen. This simple gesture allows users to change to the next slide without using a clicker.
NFC-connectivity iProjection
Activate iProjection app seamlessly with the NFC connectivity on your Android smart devices. Simply place them
on top of the projector and the iProjection app will be opened.
iProjection* App for Mobile Devices
The iProjection app enables both iOS and Android devices to easily connect to the projector. You can use
iProjection to wirelessly project various documents, photos and web pages, and draw on the device screen and
share on projection. To connect, search for the projector in your local network or simply scan a QR code
displayed on the projector screen. Remote control function is also built into iProjection so you can use the app to
control projector functions. In addition, iProjection now supports screen mirroring (without audio) from devices
running on Android 5.0 and above.
* In iProjection, projector profile search, multi-screen display, distribution function, audio transfer, movie file
transfer, interrupt connection disabling and encryption data transfer capabilities are not supported.
Flexibility Set-up
The EB-1795F provide more advanced, real-time auto vertical and horizontal keystone correction. You can
conveniently position the projector anywhere in the room. Simply turn on the power and direct the projector
towards the screen or wall, and the image will be corrected automatically in no time.
Convenient Wireless Mirroring Projection
Project contents wirelessly from compatible smart devices and laptops without any software installation with the Miracast.
The technology enables easy wireless transmission of Full HD video and sound from PCs and smart devices,
eliminating the hassle of a physical connection and eradicating issues with setting up. With support for screen mirroring,
projecting your tablet and laptop
What's In The Box:
Power Cable: 3m
Computer Cable (VGA Cable): 1.8m
USB Cable (Type A/B): 3m
Remote Control: Yes, with Alkaline AA Battery
Soft Carrying Case
Bundled Software: CDROM
Projection Software
Password Protect Sticker
Warranty Sheet
Projection Technology:
Projection Technology:
RGB liquid crystal shutter projection system
Brightness*2:
White Light Output (Normal):
3,200lm
Colour Light Output:
(Normal / Eco): 3,200lm / 1,900lm

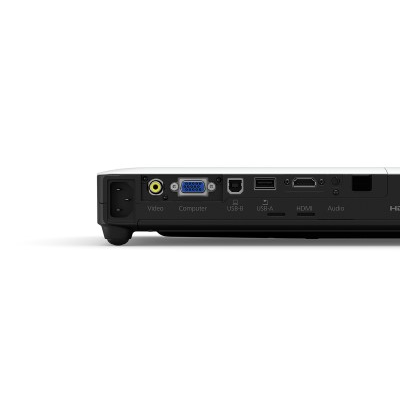

Connectivity:
Network:
Wireless LAN; In-built
Analog Input:
D-Sub 15 pin; 1(Blue)
Composite; RCA x 1
Digital Input:
HDMI; 1(MHL)
Audio Input:
Stereo Mini Jack: 1
Others:
USB Type A: 1 (for USB Memory, USB Document Camera, Firmware Update)
USB Type B: 1 (for USB Display, mouse, K/B/, Control, Firmware Update)
Contrast Ratio:
Auto Iris:
10,000:1
Wireless Specifications:
Supported Speed for Each Mode:
IEEE 802.11b: 11 Mbps
IEEE 802.11g: 54 Mbps
IEEE 802.11n: 130.0 Mbps
Wireless LAN Security:
Quick Mode: WPA2-PSK
Advanced Mode: WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP
Supported EAP type:
PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Supported Connection Mode:
Infrastructure, Access Point
Screen Size (Projected Distance):
Standard Size:
60" screen 1.35 - 1.64m
Zoom : Wide:
30" - 300" (0.67 - 6.86m)
Zoom : Tele:
30" - 300" (0.81 - 8.28m)
Operating Temperature:
Operating Temperature:
5°C - 40°C < 41°F - 104°F> (0 m / 0 ft to 2,286m / 7,500ft)
5°C - 35°C < 41°F - 95°F> (over 2,286m / 7,500ft) (20% - 80% humidity, No condensation)
Operating Altitude:
Operating Altitude:
0m - 3,000m (0ft - 9,843 ft) (over 1,500m / 4,921ft: with high altitude mode)
Start-Up Period:
Start-Up Period:
About 7.2 seconds, Warm-up period: 30 seconds
Cool Down Period:
Cool Down Period:
Instant off
Internal Speaker(s):
Sound Output:
Monaural: 1W X 1
Direct Power On/Off:
Direct Power On/Off:
Yes/Yes
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):
292mm x 44mm x 213mm
Fan Noise:
Fan Noise (Normal / Eco):
39 dB / 30dB
Wireless Specifications (Miracast):
Supported Speed for Each Mode:
IEEE 802.11g (2.4GHz): 54Mbps
IEEE 802.11n (2.4GHz): 130.0 Mbps
IEEE 802.11a (5GHz): 54 Mbps
IEEE 802.11n (5GHz): 270.0 Mbps
IEEE 802.11ac (5GHz): 780 Mbps
Supported Connection Mode:
Wi-Fi Direct
