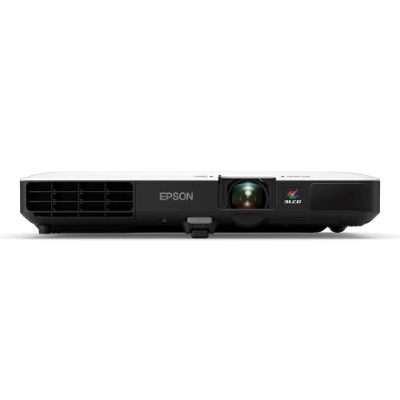

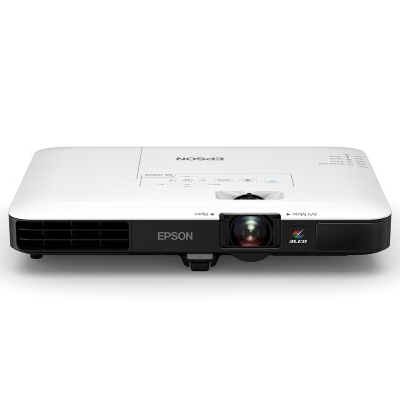

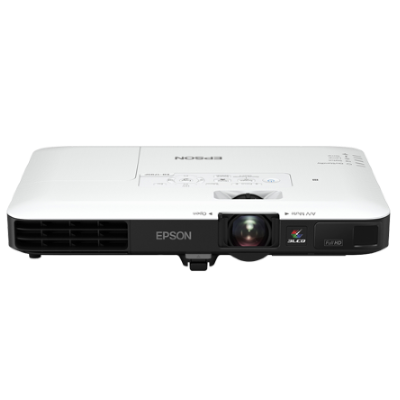

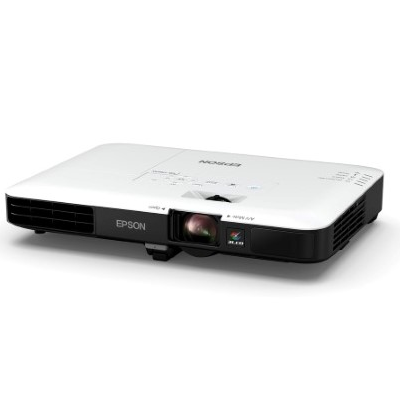

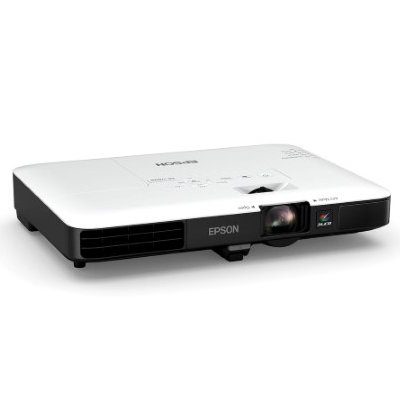

Remarkable 3LCD Projection At Only 44mm Slim
The Epson EB-1785W packs superior imaging quality along with a suite of connectivity and usability features into a body weighing only 1.83kg and 44mm slim.
Wirelessly connect your smart devices to the projector via Wi-Fi, Miracast, iProjection application or NFC technology. The EB-1785W comes with Gesture Presenter
technology, which allows you to transit between slides without a clicker. Lastly, with Epson's 3LCD technology that delivers up to 3 times wider colour gamut and
brightness, you can astound audiences anywhere you go.
White Light Output 3,200 lumens, Colour Light Output 3,200 lumens
WXGA Resolution
Real-Time Auto Keystone Correction
Split Screen Projection
Hassle-Free Presentation with USB 3-in-1 Display Feature and Epson iProjection
iProjection App Compatible
Wirelessly project from your iPhone®, iPad®, iPod® Touch or AndroidTM mobile device.
Ultra-Thin Projector
Sleek and lightweight in design, weighing under 4 pounds
HDMI Connectivity
Includes all-digital, HDMI audio and video connection, for HD quality with just one cable
Split Screen
Display content from two inputs simultaneously, side by side, on a single screen.
Ultra Portability
The world's slimmest, ultra-portable, 3LCD projector is engineered with convenience in mind. Weighing at most 1.83kg and 44mm thick (excluding the feet), the EB-
1785W make mobile presentations easy and hassle free, With up to 3,200 lumens colour and white light output, you can enjoy bright and vibrant images indoors and outdoors.
The EB-1785W is designed with three grip lines at the edges, making them easier and safer to transport. With the projector small footprint, you can carry the
projector in a laptop bag to deliver impactful presentations on the move.
Seamless Connectivity and Usability
Ease-of-Presentations with Gesture Presenter
Users can control their presentations conveniently by moving their hands to a white floating marker at the bottom right side of the projection screen. This simple
gesture allows users to change to the next slide without using a clicker.
NFC-connectivity iProjection
Activate iProjection app seamlessly with the NFC connectivity on your Android smart devices. Simply place them on top of the projector and the iProjection app will be opened.
iProjection* App for Mobile Devices
The iProjection app enables both iOS and Android devices to easily connect to the projector. You can use iProjection to wirelessly project various documents,
photos and web pages, and draw on thedevice screen and share on projection. To connect, search for the projector in your local network or simply scan a QR code
displayed on the projector screen. Remote control function is also built into iProjection so you can use the app to control projector functions. In addition, iProjection
now supports screen mirroring (without audio) from devices running on Android 5.0 and above.
* In iProjection, projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer, interrupt connection disabling and encryption
data transfer capabilities are not supported.
Flexibility Set-up
The EB-1785W provide more advanced, real-time auto vertical and horizontal keystone correction. You can conveniently position the projector anywhere in the room.
Simply turn on the power a
What's In The Box:
Power Cable: 3m
Computer Cable (VGA Cable): 1.8m
USB Cable (Type A/B): 3m
Remote Control: Yes, with Alkaline AA Battery
Soft Carrying Case
Bundled Software: CDROM
Projection Software
Password Protect Sticker
Warranty Sheet
Projection Technology:
Projection Technology:
RGB liquid crystal shutter projection system
Brightness*2:
White Light Output (Normal):
3,200lm
Colour Light Output:
Normal / Eco: 3,200lm / 1,900lm

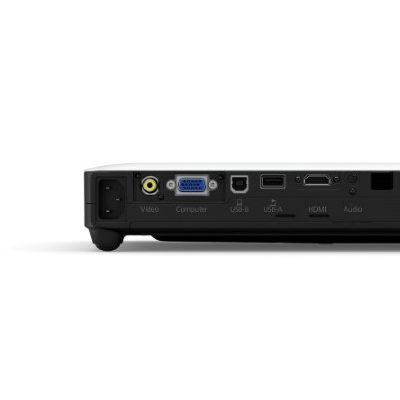

Connectivity:
Network:
Wireless LAN; In-built
Analog Input:
D-Sub 15 pin; 1(Blue)
Composite; RCA x 1
Digital Input:
HDMI; 1(MHL)
Audio Input:
Stereo Mini Jack: 1
Contrast Ratio:
Auto Iris:
10,000:1
Wireless Specifications:
Supported Speed for Each Mode:
IEEE 802.11b: 11 Mbps; IEEE 802.11g: 54 Mbps; IEEE 802.11n: 130 Mbps
IEEE 802.11g (2.4GHz): 54 Mbps; IEEE 802.11n (2.4GHz): 130.0 Mbps; IEEE 802.11a (5GHz): 54 Mbps;
IEEE 802.11n (5GHz): 270.0 Mbps; IEEE 802.11ac (5GHz): 780Mbps
Wireless LAN Security:
Quick Mode: WPA2-PSK
Advanced Mode: WPA2-PSK, WPA/WPA2-PSK, WPA2-EAP, WPA/WPA2-EAP
Supported EAP type:
PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP
Supported Connection Mode:
Infrastructure, Access Point
Wi-Fi Direct
Screen Size (Projected Distance):
Standard Size:
60" screen 1.35 - 1.62m
Zoom : Wide:
30" - 300" (0.67 - 6.81m)
Zoom : Tele:
30" - 300" (0.80 - 8.18m)
Operating Temperature:
Operating Temperature:
5°C - 40°C < 41°F - 104°F> (0 m / 0 ft to 2,286m / 7,500ft)
5°C - 35°C < 41°F - 95°F> (over 2,286m / 7,500ft) (20% - 80% humidity, No condensation)
Operating Altitude:
Operating Altitude:
0m - 3,000m (0ft - 9,842 ft) (over 1,500m / 4,921ft: with high altitude mode)
Start-Up Period:
Start-Up Period:
About 7.2 seconds, Warm-up period: 30 seconds
Cool Down Period:
Cool Down Period:
Instant off
Internal Speaker(s):
Sound Output:
Monaural: 1W X 1
Power Consumption (220 - 240V):
Lamp On (Normal/Eco):
295W / 208W
Stand By:
0.34W
Direct Power On/Off:
Direct Power On/Off:
Yes/Yes
Dimension Excluding Feet (W x H x D):
Dimension Excluding Feet (W x H x D):
292mm x 53mm x 213mm
Fan Noise:
Fan Noise (Normal / Eco):
39 dB / 30dB
