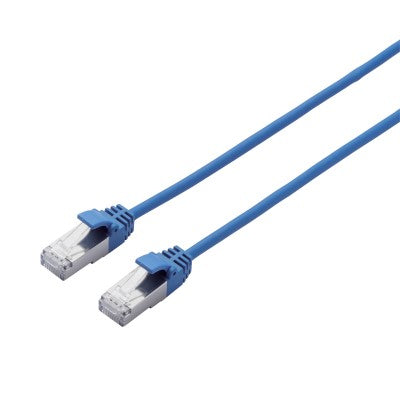

Category 7 compliant LAN cable:
A category 7 compliant LAN cable compatible with "10GBASE-T" of next-generation 10 Gigabit Ethernet, which is ideal for high-speed optical communication
Supports high-frequency band:
It supports up to 600MHz, which is more than twice that of Category 6 and is resistant to noise interference, realizing a high-speed and stable network environment.
Stable data transfer speed:
It ensures a stable data transfer speed even in environments such as 1000BASE-TX / 1000BASE-T / 100BASE-T.
Double shield structure to prevent communication errors:
The double shield structure prevents communication error (alien crosstalk) by noise interference between
adjacent cables which tends to occur in high-speed communication of gigabit or more is adopted.
Easy to handle with twisted pair specifications:
Since it is a twisted pair (twisted pair) specification that eliminates the cross interposition, it is soft and easy to handle, and it is easy to lay in a narrow place.
Gold-plated shield plug that suppresses signal deterioration:
Uses a gold-plated shield plug that is resistant to rust and suppresses signal deterioration.
Color: Blue
Interface: RJ-45 connector
Environmental considerations: EU RoHS Directive Compliant (10 substances)
Standard: CAT7 compliant (10BASE-T / 100BASE-TX / 1000BASE-T / 1000BASE-TX / 10GBASE-T)
* Cat7 compliant is for the cable only. The connector is RJ45 specification.
Transmission speed: 10Gbps
Transmission band: 600MHz
Cable thickness: 4.1mm
Number of cores: 8 cores
Wiring method: Straight connection
Twisted pair core wire (twisted pair cable): Yes
shield: No (ScTP / 2 double foil tape shield)
Cross material: No
External sheath (coating) material: PVC
With length mark: No
Conductor composition: Twist wire (30 AWG)
With or without connector: With connectors on both ends
Molded connector: Yes
Slim connector: Yes
Connector with nail breakage prevention cover: No
Cable winding function: No
Package form: Aluminum foil bag + sticker
Connector that does not break the nail: No
PoE: Yes
