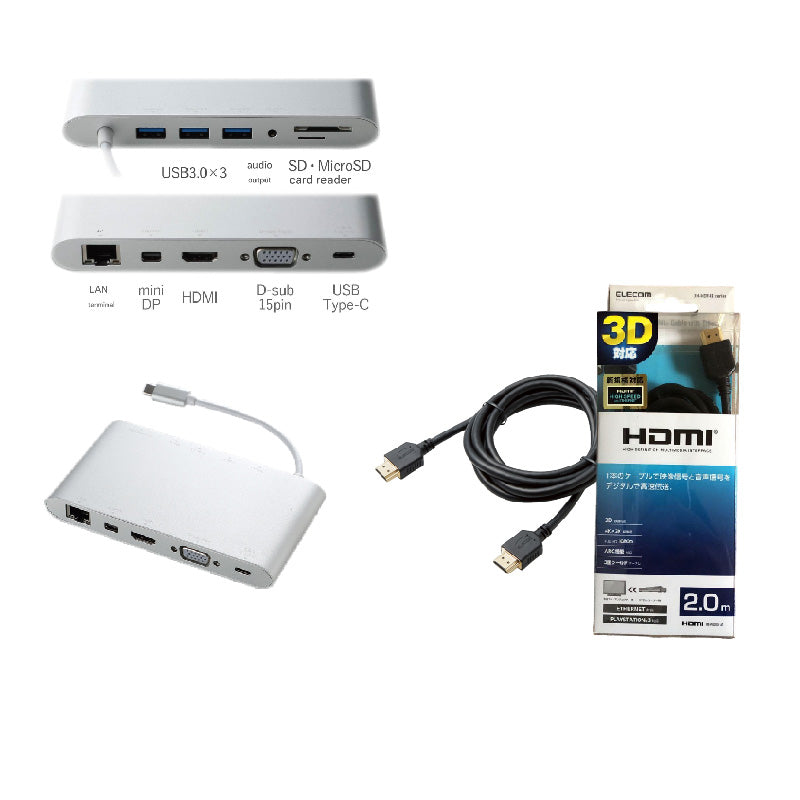

Elecom DST-C01SV Type-C Docking station + 1.4HDMI 2M CABLE (Bundle)
SKU: 1000000001007
Connect all your peripherals to a USB Type-C equipped computer with a single cable! This USB Type-C docking station supports USB Power Delivery, which can supply power to your laptop, allowing you to use your peripherals while charging your computer.
Supported OS
Windows 10/8.1/7/Vista, MacOSX 10.12 or later. *It may be necessary to update to the latest version of each OS or install a service pack.
Connector Specifications (Upstream)
USB3.1 Type-C <Gen1 (5Gbps), USB Power Delivery compatible (up to 20V/3A)>
USB port (downstream)
USB3.0 Standard-A female x 3 <Power supply value: 10W (5V/2A) for all 3 ports>
Video output port (downstream)
miniDisplayPort (up to 4K2K@30Hz) x 1/HDMI (up to 4K2K@30Hz) x 1/VGA (1920*1200@60Hz) x 1
LAN Port (Downstream)
RJ-45(1000BASE-T/100BASE-TX/10BASE-T)
Voice Ports (Downstream)
3.5mm 4-pole stereo mini (CTIA type)
Card Reader (Downstream)
Compatible media (1) (SD memory card): SD (HighSpeed, ProHighSpeed, Class2,4,6,10), for Wii and DSi, SDHC (Class2,4,6,10,UHS-I), SDXC (UHS-I), TransFlash, microSD (UHS-I), microSDHC (Class2,4,6,10), microSDXC, miniSD (※1)
Power supply method
USB Type-C female connector (up to 20V/3A)
Cable length
Approx. 0.15m (including connector)
Color
Silver
External dimensions
137×17×75mm (excluding cable)
Weight
214g (including cable)
Operating environment
0 to 40°C/10 to 90% RH
Warranty period
1 year
