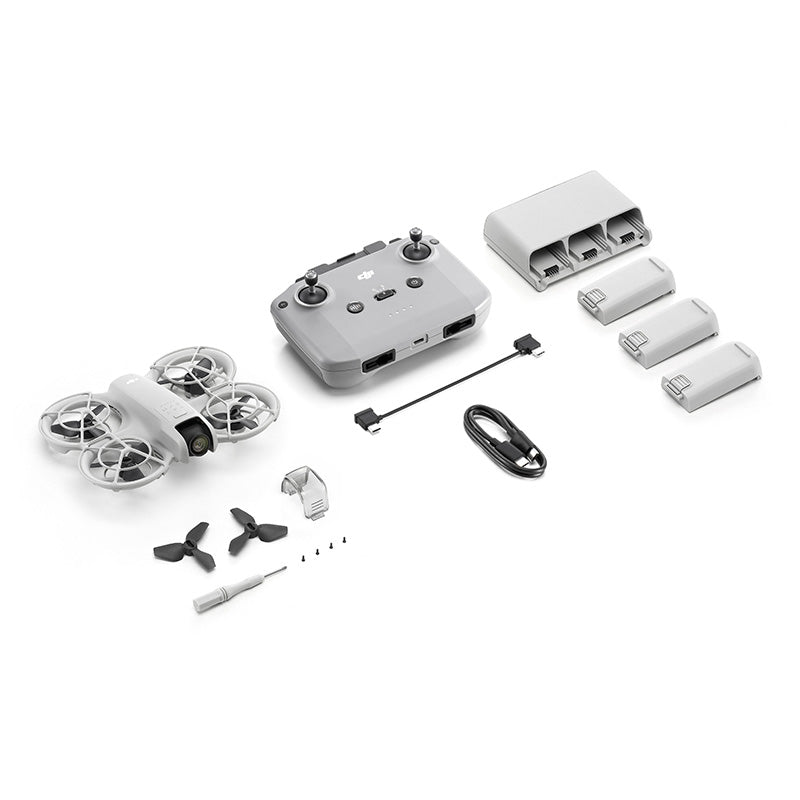

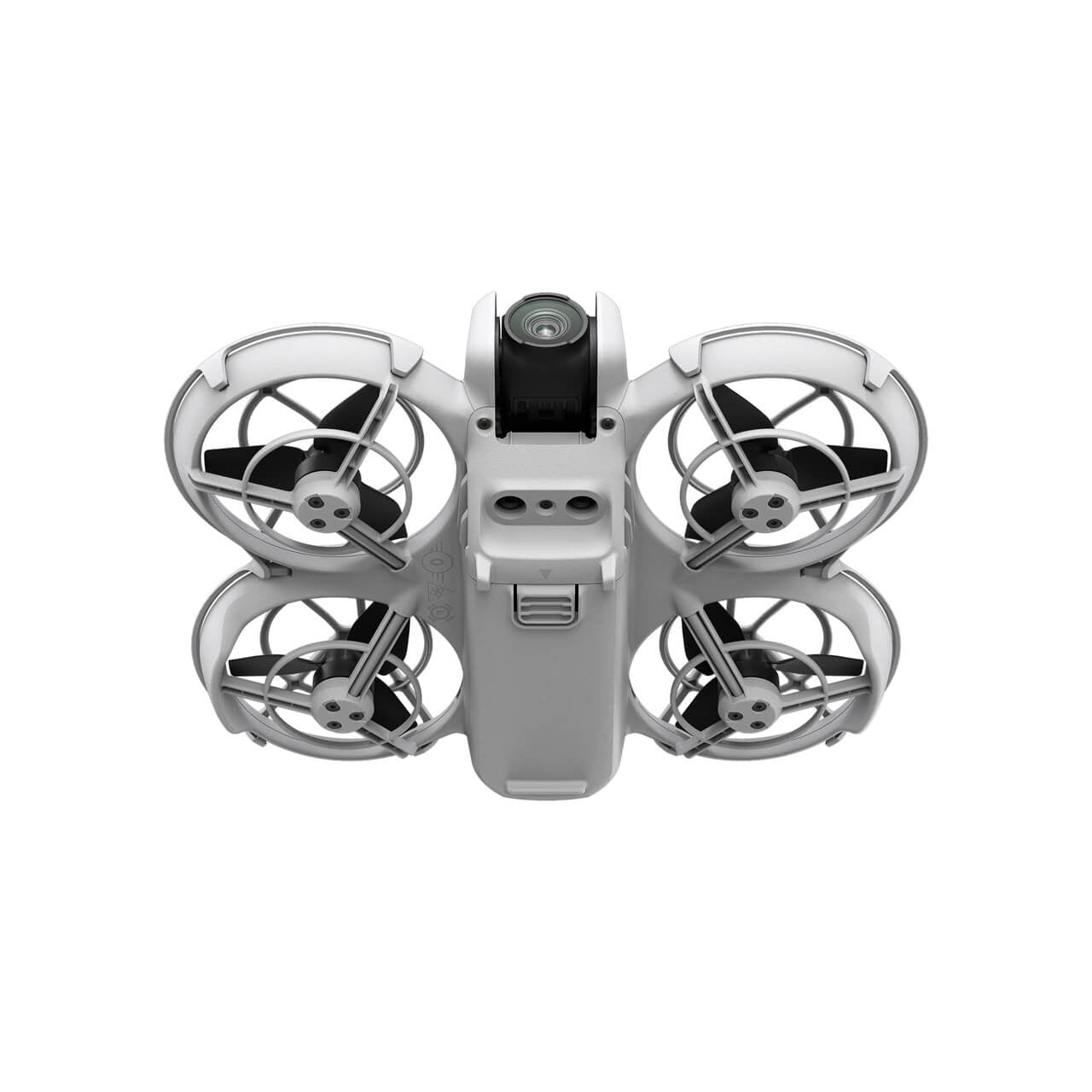

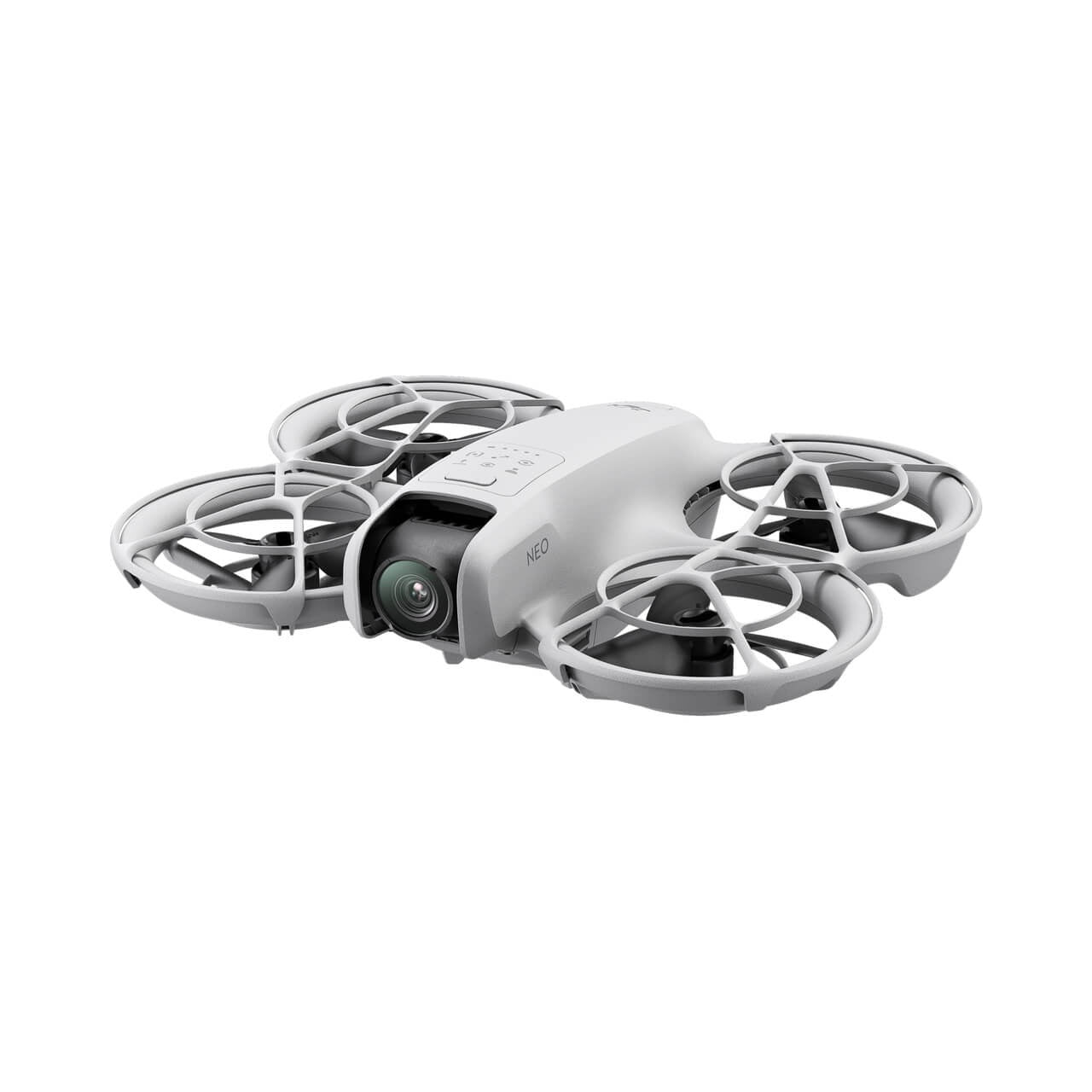

DJI Neo Fly More Combo

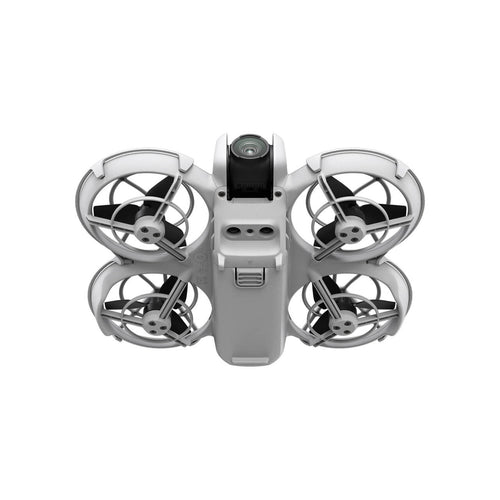

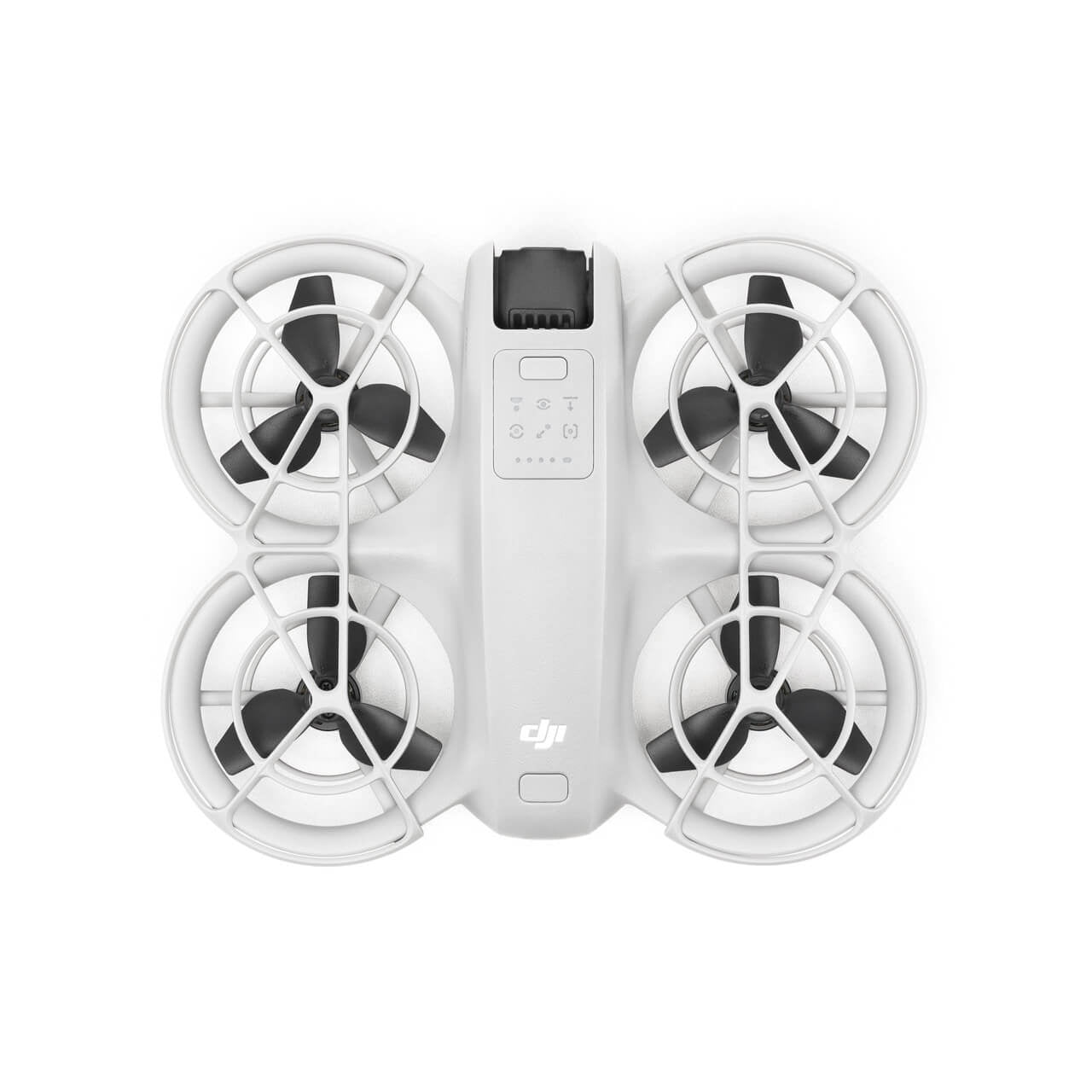

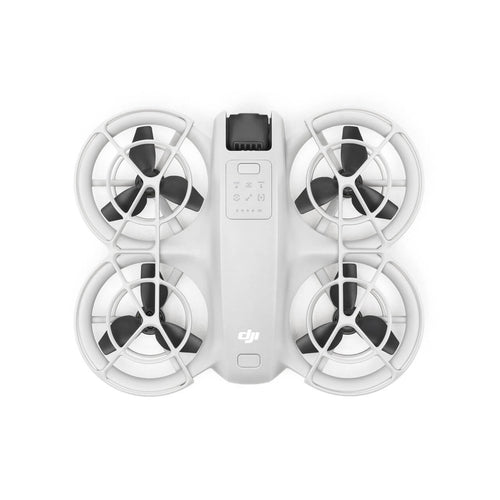

Aircraft

Takeoff Weight

Approx. 135 g

Dimensions

130×157×48.5 mm (L×W×H)

Max Ascent Speed

0.5 m/s (Cine mode), 2 m/s (Normal mode), 3 m/s (Sport mode)

Max Descent Speed

0.5 m/s (Cine mode), 2 m/s (Normal mode), 2 m/s (Sport mode)

Max Horizontal Speed (near sea level, no wind)

6 m/s (Normal mode) , 8 m/s (Sport mode), 16 m/s (Manual mode)

Max Takeoff Altitude

2000 m

Max Flight Time

Approx. 18 mins (approx. 17 mins with the Propeller Guards)

Each battery allows the drone to perform at least 20 palm takeoff and landing for shoots in succession

Max Hovering Time

Approx. 18 mins (approx. 17 mins with the Propeller Guards)

Max Flight Distance

7 km‌

Max Wind Speed Resistance

8 m/s (Level 4)

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satellite System

GPS + Galileo + BeiDou

Hovering Accuracy Range

Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning)

Horizontal: ±0.3 m (with vision positioning), ±1.5 m (with GNSS positioning)

Internal Storage

22 GB

Class

C0 (EU)

Camera

Image Sensor

1/2-inch image sensor

Lens FOV:

117.6°

Format Equivalent:

14 mm

Aperture:

f/2.8

Focus:

0.6 m to ∞

ISO Range

100-6400 (Auto)

100-6400 (Manual)

Shutter Speed

Video: 1/8000-1/30 s

Photo: 1/8000-1/10 s

Max Image Size

12 MP Photo

4000×3000 (4∶3)

4000×2256 (16∶9)

Still Photography Modes

Single/Timed Shot

Photo Format

JPEG

Video Resolution

EIS Off: 4K (4:3): 3840×2880@30fps, 1080p (4:3): 1440×1080@60/50/30fps

EIS On: 4K (16:9): 3840×2160@30fps, 1080p (16:9): 1920×1080@60/50/30fps

Video Format

MP4

Max Video Bitrate

75Mbps

Supported File System

exFAT

Color Mode

Normal

EIS

Supports RockSteady, HorizonBalancing, and turning stabilization off.

Gimbal

Stabilization

Single-axis mechanical gimbal (tilt)

Mechanical Range

Tilt: -120° to 120°

Controllable Range

Tilt: -90° to 60°

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.01°

Image Roll Correction

Supports correction of footage recorded on the drone

Live view correction is unavailable only when using with goggles

Sensing

Sensing Type

Downward visual positioning

Downward

Precise Hovering Range: 0.5-10 m

Operating Environment

Downward: Non-reflective, discernible surfaces with diffuse reflectivity of >20% (such as walls, trees, or people)

Adequate lighting (lux > 15, normal indoor lighting conditions)

Video Transmission

Video Transmission System

O4

Live View Quality

With DJI RC-N3 Remote Controller: Up to 1080p/30fps

With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps

Operating Frequency

2.400-2.4835 GHz

5.170-5.250 GHz

5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: ＜26 dBm (FCC), < 20 dBm (CE/SRRC/MIC)

5.1 GHz: < 23 dBm (CE)

5.8 GHz: ＜26 dBm (FCC), < 14 dBm (CE), < 26 dBm (SRRC)

Communication Bandwidth

Max 40 MHz

Max Transmission Distance (unobstructed, free of interference)

FCC: 10 km

CE: 6 km

SRRC: 6 km

MIC: 6 km

Max Transmission Distance (unobstructed, with interference)

Strong Interference (urban landscape): Approx. 1.5-3 km

Medium Interference (suburban landscape): Approx. 3-6 km

Low Interference (suburb/seaside): Approx. 6-10 km

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: Approx. 0-0.5 km

Low Interference and Obstructed by Trees: approx. 0.5-3 km

Max Download Speed

Wi-Fi: 25 MB/s

Lowest Latency

With DJI RC-N3 Remote Controller: Approx. 120 ms

Max Video Bitrate

50Mbps

Antennas

Two antennas, 1T2R

Wi-Fi

Protocol

802.11a/b/g/n/ac

Operating Frequency

2.400-2.4835 GHz<br>

5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC)

5.8 GHz: ＜20 dBm (FCC/SRRC),＜14 dBm (CE)

Effective Operating Range

50 m

Bluetooth

Protocol

Bluetooth 5.1

Operating Frequency

2.400-2.4835 GHz

Transmitter Power (EIRP)

＜ 10 dBm

Battery

Capacity

1435 mAh

Weight

Approx. 45 g

Nominal Voltage

7.3 V

Max Charging Voltage

8.6 V

Type

Li-ion

Energy

10.5 Wh

Charging Temperature

5° to 40° C (14° to 104° F)

Charging Time

When Using the Two-Way Charging Hub (60W max charging power): Approx. 60 minutes to charge three batteries simultaneously from 0% to 100%

When Directly Charging the Aircraft Body (15W max charging power): Approx. 50 minutes to charge from 0% to 100%"

Charger

Recommended Charger

DJI 65W Portable Charger

USB Power Delivery charger

Battery Charger Hub

Input

5V, 3A, 9V, 3A, 12V, 3A, 15V, 3A, 20V, 3A

Output (charging)

5V, 2A

Charging Type

3 batteries charged simultaneously

Compatibility

DJI Neo Intelligent Flight Battery

Storage

Recommended microSD Cards

Does not support storage expansion with an external SD card

DJI RC-N3 Remote Controller

Max Operating Time

Without Charging Any Mobile Device: 3.5 hours

When Charging a Mobile Device: 1.5 hours

Operating Temperature

-10° to 40° C (14° to 104° F)

Charging Temperature

5° to 40° C (14° to 104° F)

Charging Time

2 hours

Charging Type

5V, 2A

Battery Capacity

2600 mAh

Weight

Approx. 320 g

Dimensions

104.2×150×45.2 mm (L×W×H)

Operating Frequency

2.400-2.4835 GHz

5.170-5.250 GHz

5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz:＜33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)

5.1 GHz: < 23 dBm (CE)

5.8 GHz:＜33 dBm (FCC), < 14 dBm (CE), < 30 dBm (SRRC)
