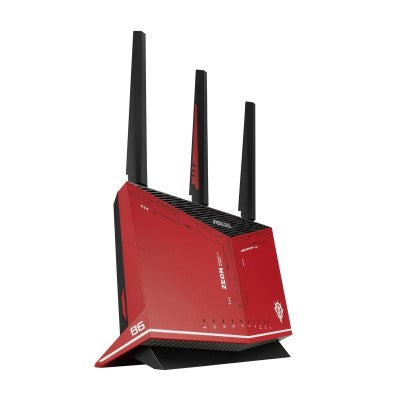

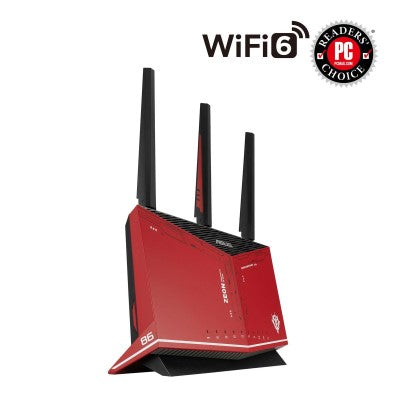

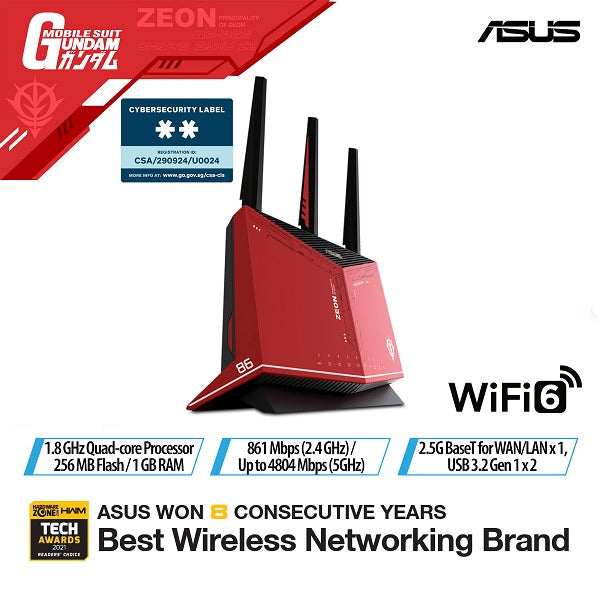

Asus RT-AX86U AX5700 GUNDAM Dual Band WiFi 6 Gaming Router

Model Name: RT-AX86U



Network Standard:

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11ax

IPv4

IPv6



Product Segment:

AX5700 ultimate AX performance

AX technology: Yes



Data Rate:

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

802.11n : up to 450 Mbps

802.11n (1024QAM) : up to 750 Mbps

802.11ac (1024QAM) : up to 4333 Mbps

802.11ax (2.4GHz) : up to 861 Mbps

802.11ax (5GHz) : up to 4804 Mbps



Antenna:

External antenna x 3

Internal PCB antenna x 1

Transmit/Receive

2.4 GHz 3 x 3

5 GHz 4 x 4


Processor:

1.8 GHz quad-core processor



Memory:

256 MB Flash

1 GB DDRIII RAM



Operating Frequency:

2.4 GHz / 5 GHz

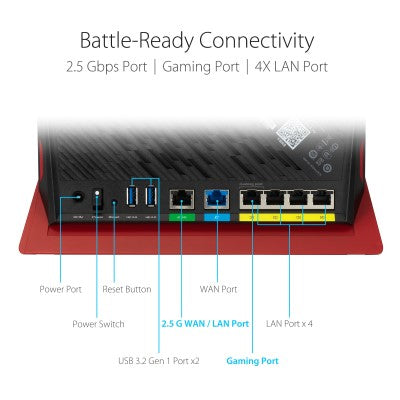

Ports:

RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1

USB 3.2 Gen 1 x 2



Buttons:

WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicator

Power x 1

Wi-Fi x 2

2.5G Port x 1

WAN x 1

LAN x 4

WPS x 1



Power Supply:

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current



Product Weight (g): 814.5 g



AiMesh:

AiMesh:Yes

Primary AiMesh router:Yes

AiMesh node:Yes

Router APP

ASUS Router APP:Yes

Game

Game Boost/acceleration:No

WTFast:No

Alexa

Support Alexa skill:Yes

IFTTT

Support IFTTT:No

AiProtection

AiProtection:AiProtection Pro

Router Security Assessment:Yes

Malicious site blocking:Yes

Two-Way IPS:Yes

Infected Device Prevention and Blocking;Yes

Parental Control

Parental Control:Yes

Parental Control Customized Internet schedule:Yes



Traffic Control:

Adaptive QoS:Yes

Bandwidth Monitor:Yes

Bandwidth limiter:Yes

Maximum Bandwidth limiter rule:32

Traditional QoS:Yes

Maximum Traditional QoS rule:32

Traffic Monitor:Yes

Real-time traffic monitor:Yes

Wired Traffic Monitor:Yes

Wireless Traffic Monitor:Yes

Traffic Analyzer:Yes

Traffic analysis period:Daily, Weekly, Monthly

Website history:Yes



Wireless:

IPv6:Yes

MU-MIMO:Yes

Wi-Fi Encryption:WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

UTF-8 SSID:Yes

Guest Network:Yes

Maximum Guest Network rule:2.4GHz x3, 5GHz x3

WPS:Yes

Wi-Fi MAC address filter:Yes

Maximum MAC filters:64

Wireless scheduler:Yes

Airtime fairness:Yes

RADIUS Server:Yes

Universal beamforming:Yes

Explicit beamforming:Yes



WAN:

Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN:Yes

WAN Aggregation:Yes

3G/4G LTE dongle:Yes

Android

RT-AX86U WiFi router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card
