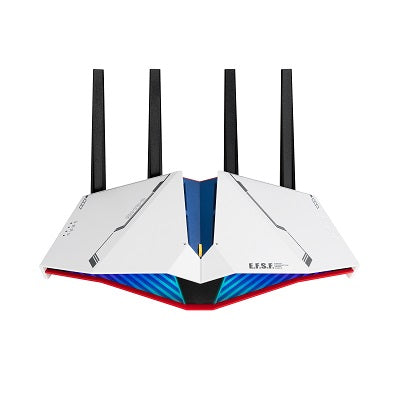

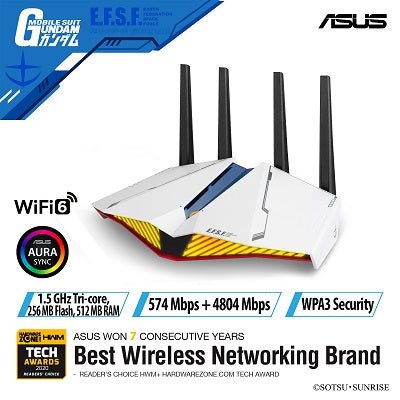

ASUS RT-AX82U AX5400 GUNDAM Dual Band WiFi 6 Gaming Router

Model Name: RT-AX82U



Network Standard:

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11ax

IPv4

IPv6



AX technology: Yes



Data Rate:

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

802.11n : up to 300 Mbps

802.11ac (1024QAM) : up to 4333 Mbps

802.11ax (2.4GHz) : up to 574 Mbps

802.11ax (5GHz) : up to 4804 Mbps



Antenna:

External antenna x 4

Transmit/Receive

2.4 GHz 2 x 2

5 GHz-2 4 x 4



Processor:

1.5 GHz tri-core processor

Memory:

256 MB Flash

512 MB RAM



Boosts speed:

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth



Operating Frequency:

2.4G Hz / 5 GHz:

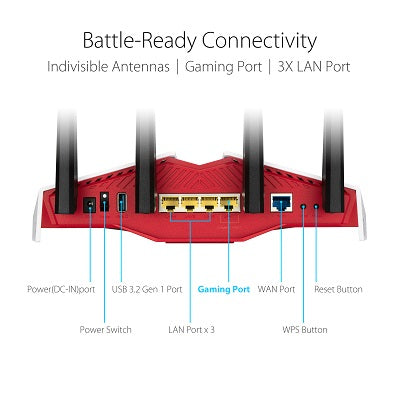

Ports:

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4

USB 3.2 Gen 1 x 1



Buttons:

WPS Button, Reset Button, Power Switch, LED on/off

LED Indicator

Power x 1

2.4G x 1

5G x 1

WAN x 1



Power Supply:

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 1.75 A current





Product Weight (g): 740 g

AiMesh: Yes

Primary AiMesh router: Yes

AiMesh node: Yes

ASUS Router APP: Yes



Game Boost/acceleration: Yes

WTFast: No



Other specifications:

Support Alexa skill: Yes

AiProtection: AiProtection Pro

Router Security Assessment: Yes

Malicious site blocking: Yes

Two-Way IPS: Yes

Infected Device Prevention and Blocking: Yes



Parental Control: Yes

Parental Control Customized Internet schedule: Yes

Traffic Control

Adaptive QoS: Yes

Bandwidth Monitor: Yes

Bandwidth limiter: Yes

Maximum Bandwidth limiter rule:32

Traditional QoS: Yes

Maximum Traditional QoS rule:32

Traffic Monitor: Yes

Real-time traffic monitor: Yes

Wired Traffic Monitor: Yes

Wireless Traffic Monitor: Yes

Traffic Analyzer: Yes

Traffic analysis period: Daily, Weekly, Monthly

Website history: Yes

Wireless

IPv6: Yes

MU-MIMO: Yes

Wi-Fi Encryption: Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

UTF-8 SSID:Yes

Guest Network: Yes

Maximum Guest Network rule: 2.4GHz x3, 5GHz x3

Guest Network Encryption: Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

WPS: Yes

Wi-Fi MAC address filter: Yes

Maximum MAC filters:64

Wireless scheduler:Yes

Airtime fairness:Yes

RADIUS Server:No

Universal beamforming:Yes

Explicit beamforming:Yes

WAN

Internet connection Type:PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN:Yes

WAN Aggregation:Yes

3G/4G LTE dongle:Yes

Android tethering:Yes

Port forward

RT-AX82U Router

RJ-45 cable

Power adapter

Warranty card

Quick start guide
