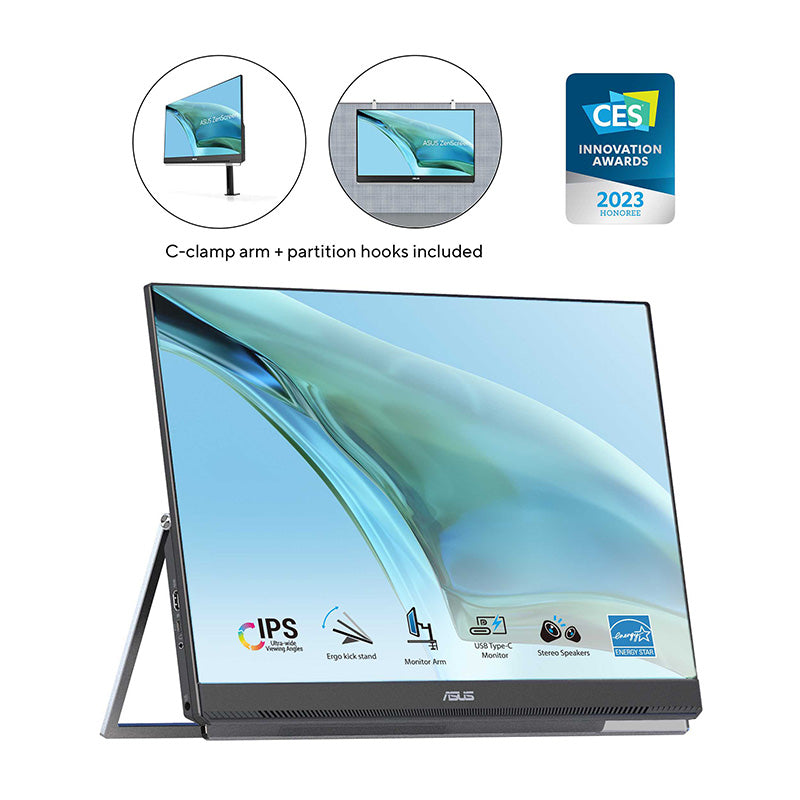

ASUS ZenScreen MB249C portable monitor – 24-inch (23.8 viewable) FHD (1920 x 1080), frameless panel, IPS technology, anti-glare, USB-C®, speakers, carrying handle/kickstand design, C-clamp, partition hook, Green sustainability

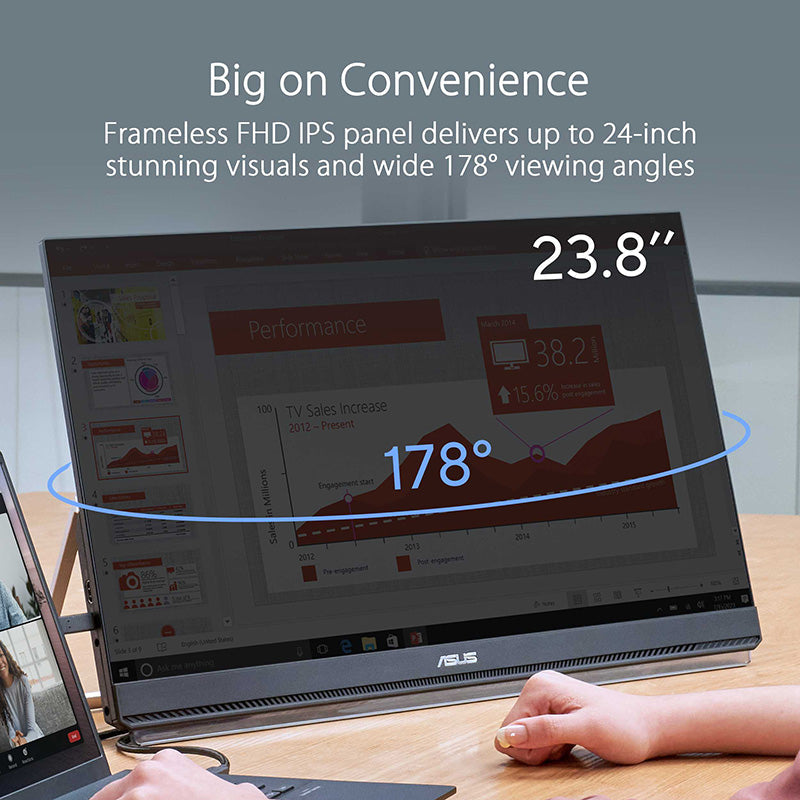

Frameless 23.8-inch FHD IPS display with anti-glare surface coating for seamless multi-monitor setups and improved viewing experiences
Sleek, ultraslim profile and 2.8 kg overall weight enable effortless portability

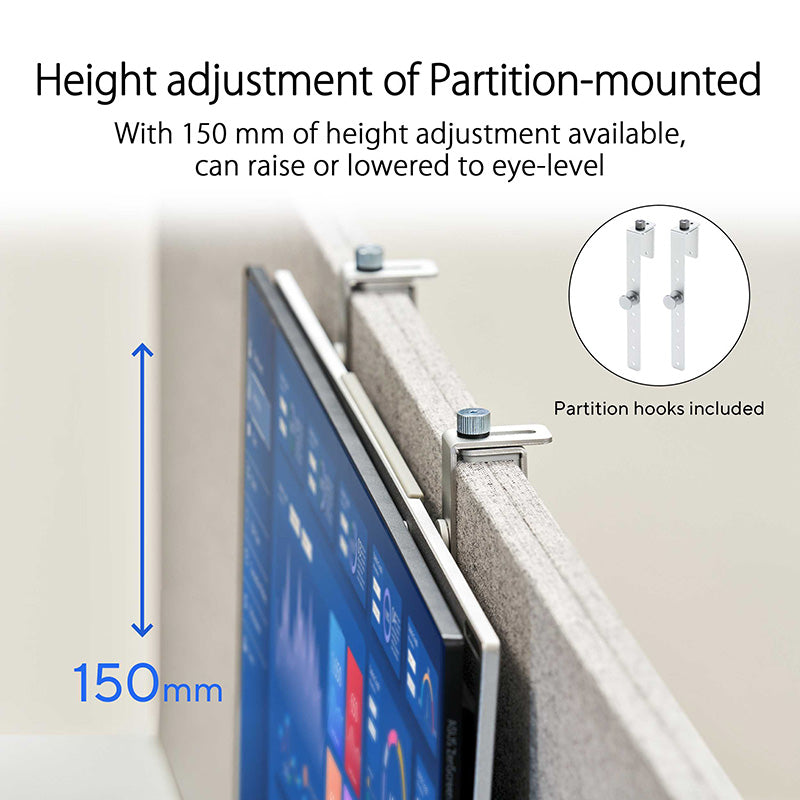

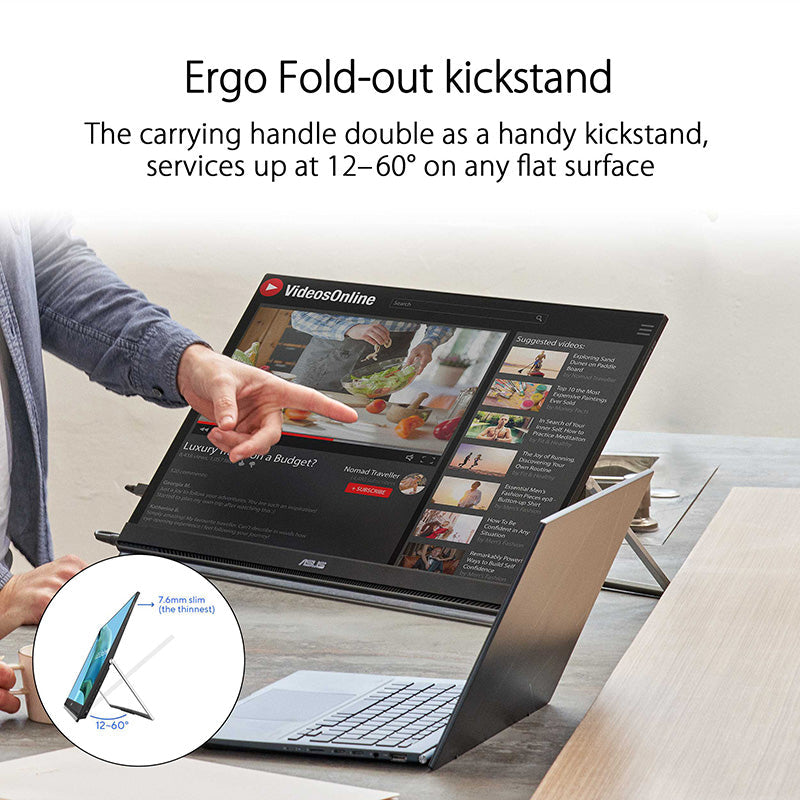

Multiple stand options and accessories, including an integrated carrying handle/kickstand, height-adjustable C-clamp with Z-axis adjustment, and partition hook kit for flexible placement

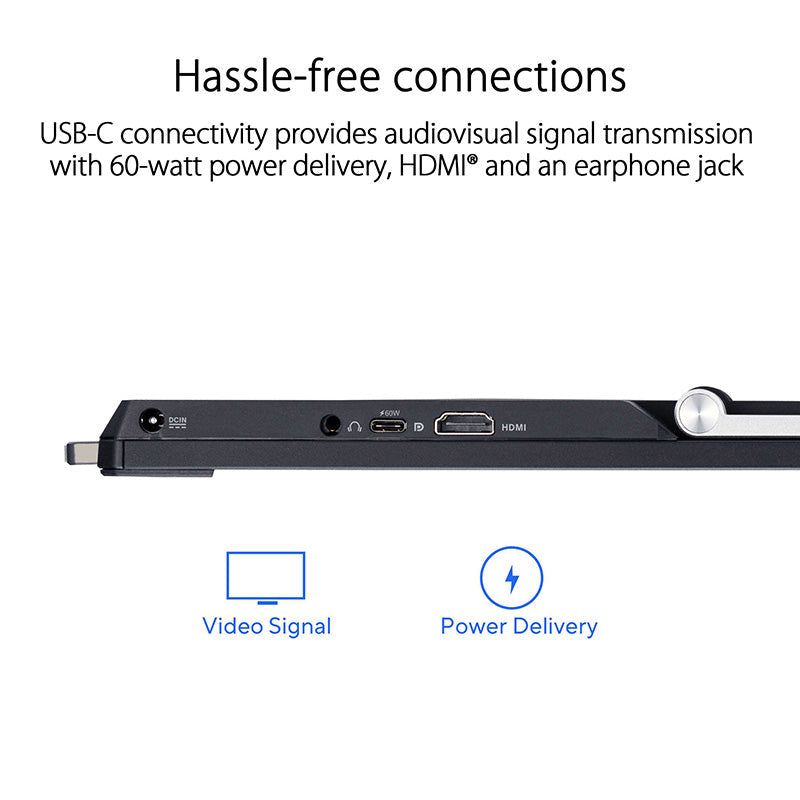

Rich connectivity options include a full-function USB-C® with 60-watt power delivery, HDMI®, and earphone jack
Environmentally friendly design with ENERGY STAR®-certified energy efficiency, and packaged in FSC® certified paper
Panel Size (inch): 23.8
Aspect Ratio: 16:9
Display Viewing Area (H x V) : 527.04(H) x 296.46 (V) mm
Display Surface: Non-Glare
Backlight Type: LED
Panel Type: IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch: 0.2745mm
Resolution: 1920x1080
Brightness (Typ.): 250cd/㎡
Contrast Ratio (Typ.): 1000:1
Display Colours: 16.7M
Response Time : 5ms(GTG)
Refresh Rate (Max): 75Hz
Flicker-free: Yes
Video Feature
Trace Free Technology: Yes
SPLENDID Technology: Yes
Colour Temp. Selection : Yes(4 modes)
GamePlus: Yes
QuickFit: Yes
HDCP: Yes, 1.4
VRR Technology: Yes (Adaptive-Sync)
DisplayWidget: Yes, DisplayWidget Lite
Low Blue Light: Yes
Audio Feature

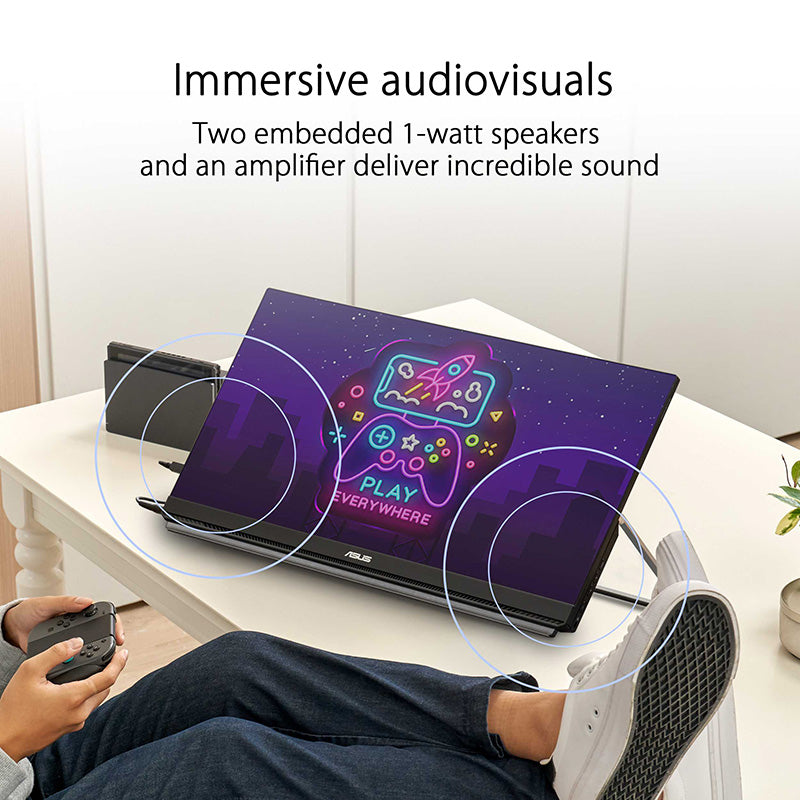

Speaker : Yes(1Wx2)
I/O Ports
USB-C x 1 (DP Alt Mode)
HDMI(v1.4) x 1
Earphone Jack: Yes
USB-C Power Delivery: 60W
Signal Frequency
Digital Signal Frequency : HDMI: 24~84 KHz (H)/ 48~75Hz (V)
USB-C: :84KHz (H) / 48~75 Hz (V)
Power Consumption
Power Consumption: 13W
Power Saving Mode: <0.5W
Power Off Mode: <0.3W
Voltage : 100-240V, 50/60Hz

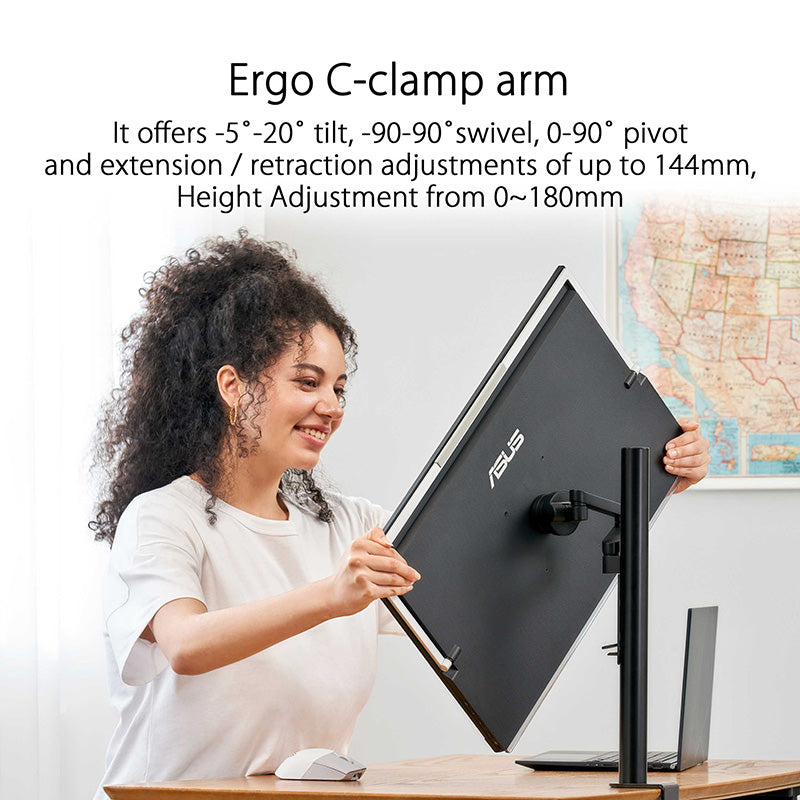

Mechanical Design
Tilt : Yes (+20° ~ -5°) with arm
Swivel : Yes (+90° ~ -90°) with arm
Pivot : Yes (0° ~ 90° Clockwise) with arm
Height Adjustment: 0~180mm with arm
Z-axis Adjust.:Extend / Retract 0~144mm
VESA Wall Mounting: 100x100mm
Kensington Lock: Yes
Dimensions (Esti.)
Phys. Dimension with Stand (W x H x D) : 539.34 x (531.36~711.36) x 302.18 mm
Phys. Dimension without Stand (W x H x D) : 539.34 x 346.3 x 23.6 mm
Box Dimension (W x H x D) : 600 x 426 x 124 mm
Weight (Esti.)
Net Weight with Stand: 4.84 kg
Net Weight without Stand: 2.85 kg
Gross Weight: 7.6 kg

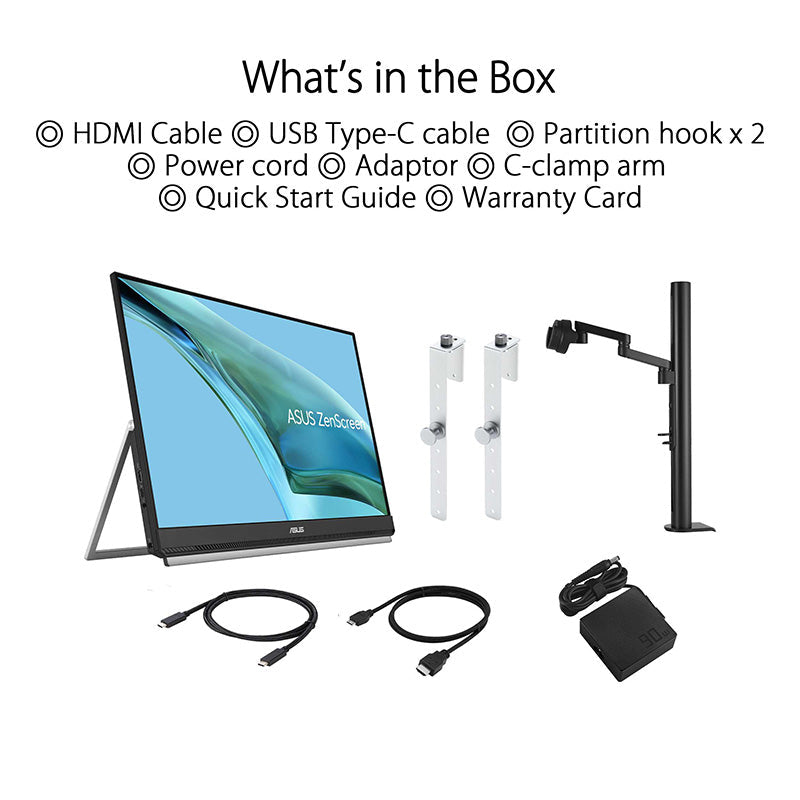

Accessories (vary by regions)
C-Clamp Arm
HDMI cable
L-shaped Screwdriver
Partition hook
Power adapter
Power cord
Quick start guide
USB-C cable
Warranty Card
Certificate
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
AMD FreeSync
FSC Mixed
